Installation Guide for CMAX-DMxx-CPUSExxx and
CMAX-3030-CPUSEI53 Antennas
Note: Please read the complete description before starting the installation. Make sure that
connectors are properly sealed against water if no cables are connected to them
after installation.
Tools required: Wrenches, width 13 mm and 16mm
(We recommend using socket wrenches.)

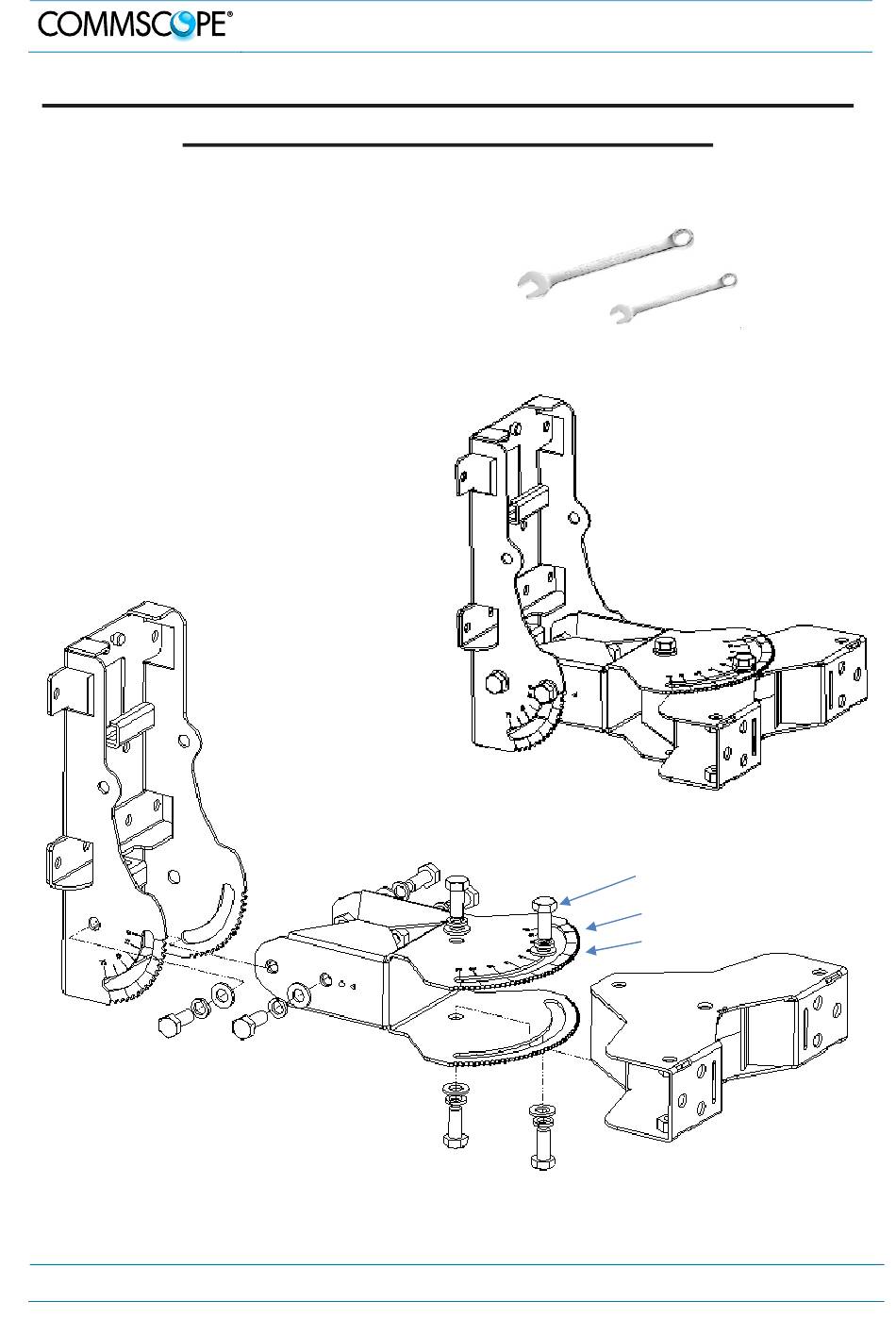

1. Assembly
Fit the three parts together and fasten with screws M10, spring washers, and washers
(M10 torque: 43 N-m).
Page 1
Installation Instruction for CMAX Antennas
M0149A0B_Installation_CMAX-DM-CPUSE
Screw
Spring washer
Washer
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CommScope CMAX-DM CPUSE Series
Summary of Contents for CommScope CMAX-DM CPUSE Series
- Page 1 Installation Instruction for CMAX Antennas Installation Guide for CMAX-DMxx-CPUSExxx and CMAX-3030-CPUSEI53 Antennas Note: Please read the complete description before starting the installation. Make sure that connectors are properly sealed against water if no cables are connected to them after installation. Tools required: Wrenches, width 13 mm and 16mm (We recommend using socket wrenches.) 1.
- Page 2 Installation Instruction for CMAX Antennas 2. Wall Mounting 1. Use the lengthening piece to mark 4 holes onto the wall as shown in the drawing above or use a drill jig. 2. Drill 4 holes into the wall and insert appropriate dowels into holes. 3.
- Page 3 Installation Instruction for CMAX Antennas 4. Antenna Mounting 4.1. Antenna Mounting Depending on the space required for the antenna, the distance from the wall can be increased with the lengthening piece. Loosen the four M10 screws, adjust the additional distance with the lengthening piece, and fasten the screws again (M10 torque: 43 N-m).
-
Page 4: Antenna Cable
M0149A0B - chapter 3 updated, max. pole diameter 27-October-2015 CommScope reserves the right to change all hardware and software characteristics without notice. COPYRIGHT: © Copyright 2015 CommScope Inc. All Rights Reserved. This document is protected by copyright. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical photocopying, recording, or otherwise without the prior written permission of CommScope.
