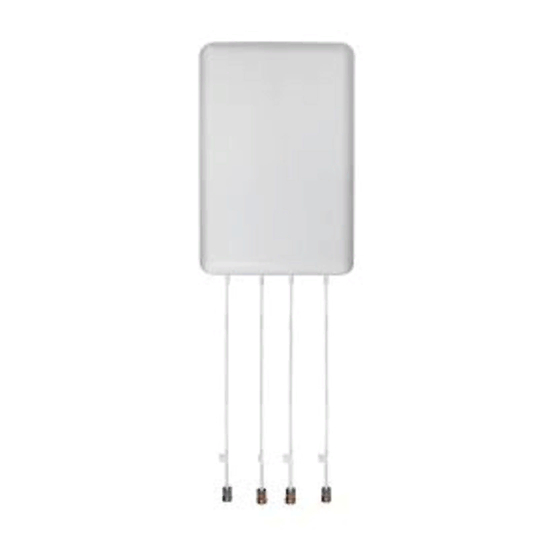

CMAX-DMF-43-UW-i53 Antenna
Note:
Please read the complete description before starting the installation. Make sure
that connectors are properly sealed against water if no cables are connected to
them after installation.

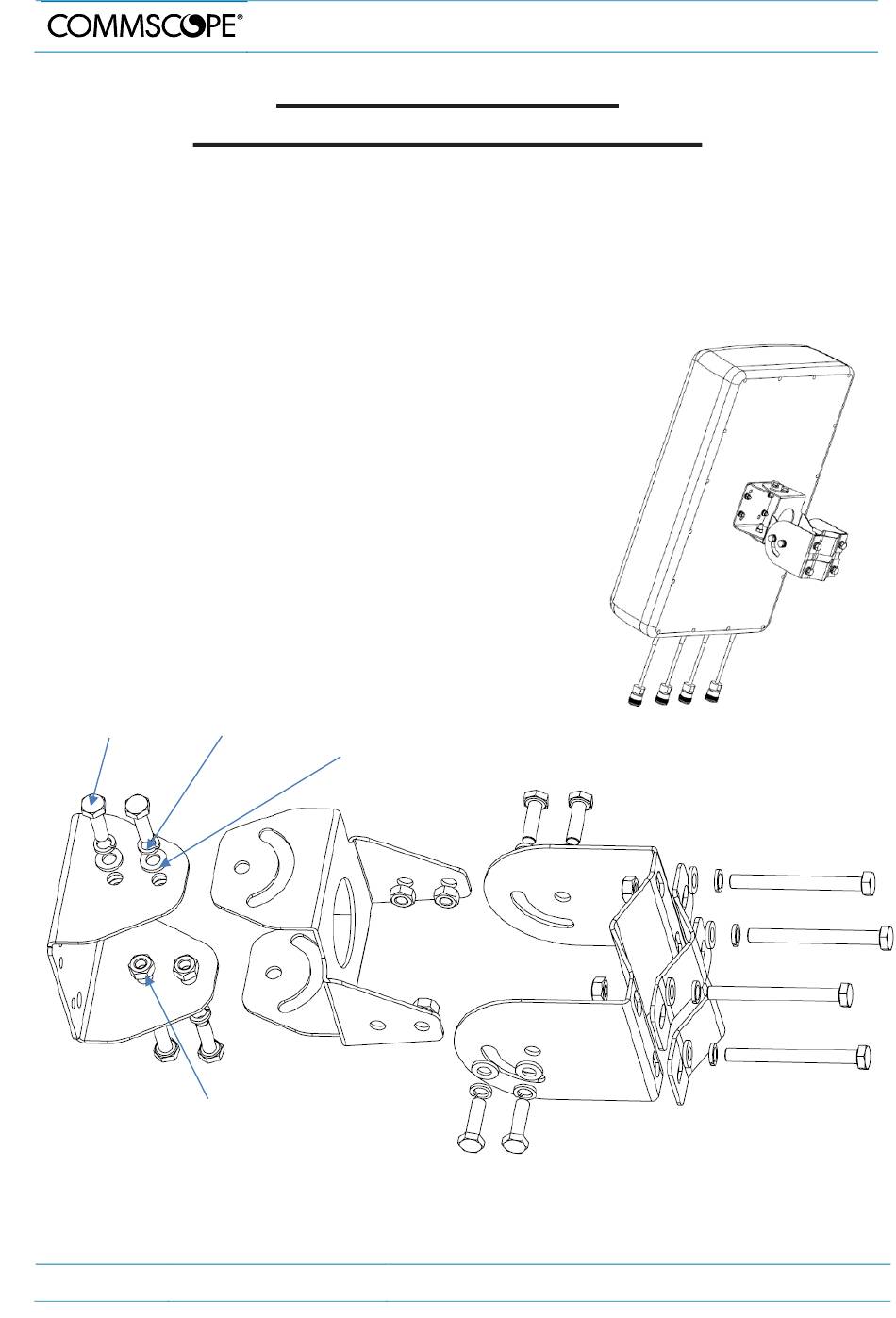

1. Assembly
Screws
Spring washer
M6 Nuts
Fit these seven parts above together and fasten them with screws M6, nuts M6, spring
washers, and washers.
Page 1
Installation Guide for
Washer
M0149ASA_Installation_CMAX-DMF-43-UW-i53_Antennas
Installation Instruction for CMAX Antennas

Advertisement

loading
Need help?

Need help?

Do you have a question about the CMAX-DMF-43-UW-i53 and is the answer not in the manual?

Questions and answers

Summary of Contents for CommScope CMAX-DMF-43-UW-i53

  • Page 1 Installation Instruction for CMAX Antennas Installation Guide for CMAX-DMF-43-UW-i53 Antenna Note: Please read the complete description before starting the installation. Make sure that connectors are properly sealed against water if no cables are connected to them after installation. 1. Assembly...
  • Page 2: Wall Mounting

    Installation Instruction for CMAX Antennas 2. Wall Mounting 1. Use this pedestal piece as a drill jig to mark 4 holes onto the wall as shown in the drawing above. 2. Drill 4 holes into the wall and insert 4 expansion bolts into holes. Install the mounting kits to the expansion bolts and tighten the M6 nuts and flat washers.
  • Page 3 Installation Instruction for CMAX Antennas 3. Pole Mounting (28~60 mm pole diameter) Page 3 M0149ASA_Installation_CMAX-DMF-43-UW-i53_Antennas...
  • Page 4: Antenna Mounting

    Installation Instruction for CMAX Antennas 4. Antenna Mounting 4.1. Antenna Mounting Spring Washer M4 nut Washer 4.2. Azimuth Angle 1. Loosen the fixing screw. (Do NOT unscrew it completely.) 2. Adjust your desired angle. The complete antenna pedestal can be swiveled to the left- / right-hand side by up to 60°.
  • Page 5 © Copyright 2019 CommScope, Inc. All rights reserved. All information contained in this manual has been revised thoroughly. Yet CommScope accepts no liability for any omissions or faults. CommScope reserves the right to change all hardware and software characteristics without notice.
