CMAX-D-43-UW-i53/CMAX-D-UW-i53/
CMAX-D-TCPUSEi53 Antennas
Note:
Please read the complete description before starting the installation. Make sure
that connectors are properly sealed against water if no cables are connected to
them after installation.

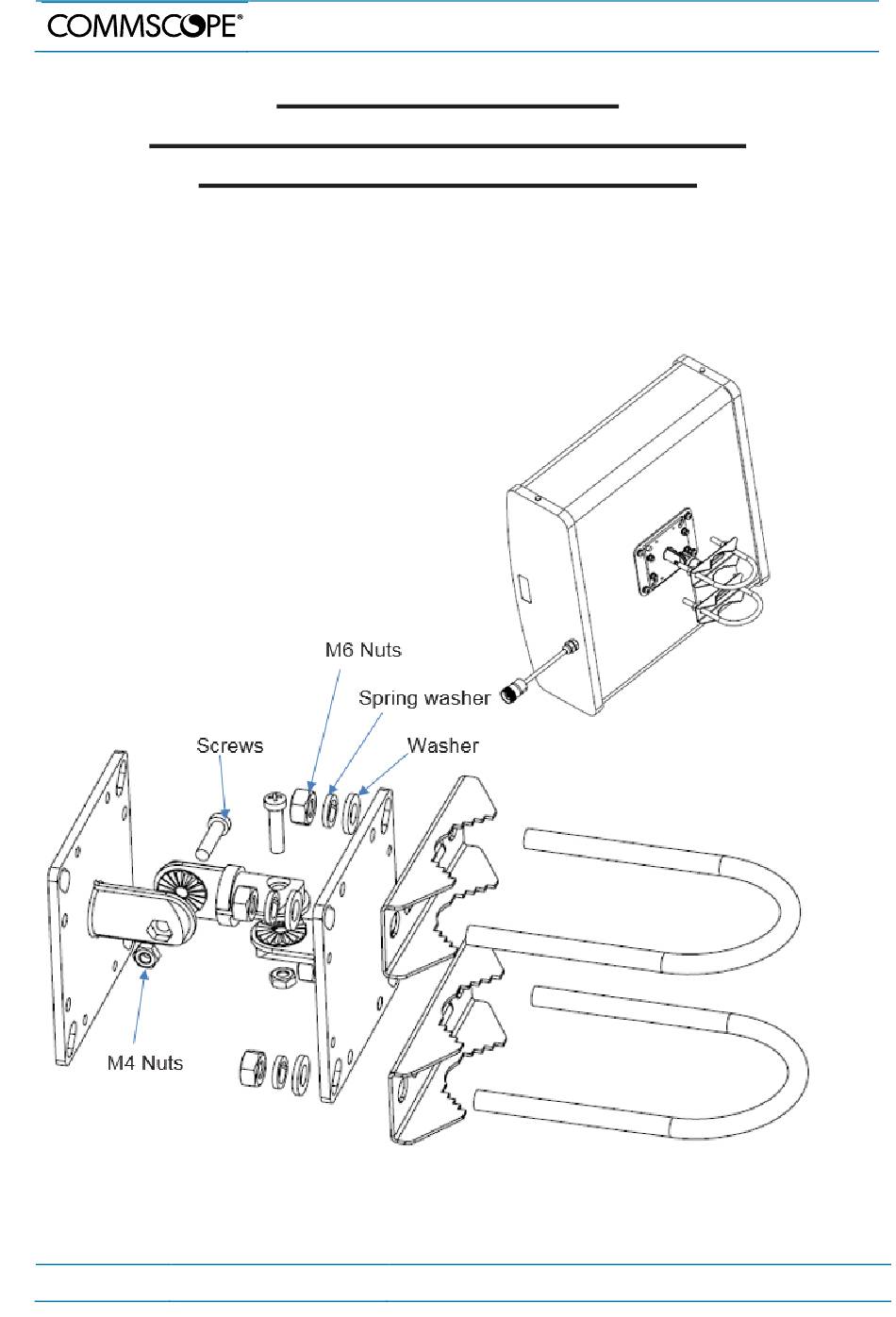

1. Assembly

Fit these seven parts above together and fasten them with screws M4, M6, nuts M4, M6,
spring washers, and washers.
Page 1
Installation Guide for
Installation Instruction for CMAX Antennas
M0149ARB_Installation_CMAX-D-xxx-Antennas

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMAX-D-43-UW-i53 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CommScope CMAX-D-43-UW-i53

  • Page 1 Installation Instruction for CMAX Antennas Installation Guide for CMAX-D-43-UW-i53/CMAX-D-UW-i53/ CMAX-D-TCPUSEi53 Antennas Note: Please read the complete description before starting the installation. Make sure that connectors are properly sealed against water if no cables are connected to them after installation. 1. Assembly Fit these seven parts above together and fasten them with screws M4, M6, nuts M4, M6, spring washers, and washers.
  • Page 2 Installation Instruction for CMAX Antennas 2. Wall Mounting 1. Use this pedestal piece as a drill jig to mark 4 holes onto the wall as shown in the drawing above. 2. Drill 4 holes into the wall and insert plastic plug into holes. ∅6X25mm.
  • Page 3 Installation Instruction for CMAX Antennas 3. Pole Mounting (30~50 mm pole diameter) Page 3 M0149ARB_Installation_CMAX-D-xxx-Antennas...
  • Page 4 Installation Instruction for CMAX Antennas 4. Antenna Mounting 4.1. Antenna Mounting Spring Washer M4 nut Washer 4.2. Azimuth Angle 1. Loosen the f ixing screw. (Do NOT unscrew it completely.) 2. Adjust your desired angle. The complete antenna pedestal can be swiveled to the lef t- / right-hand side by up to 25°.
  • Page 5 © Copyright 2020 CommScope, Inc. All rights reserved. All information contained in this manual has been revised thoroughly. Yet CommScope accepts no liability for any omissions or faults. CommScope reserves the right to change all hardware and software characteristics without notice.
