CommScope CMAX Series Installation Instruction

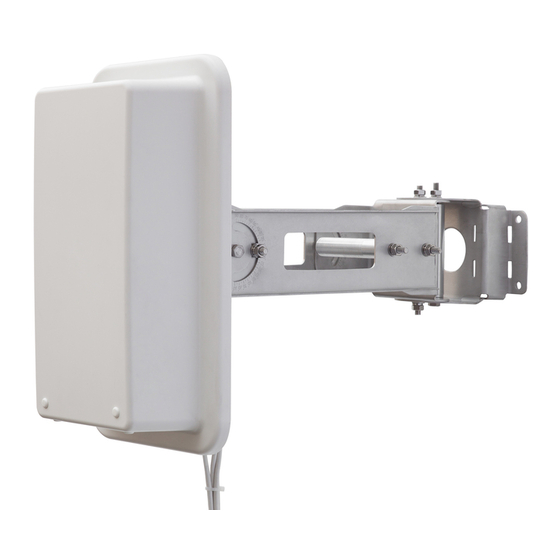

Installation Guide for CMAX-DMH60-xxx Antennas

Note: Please read the complete description before starting the installation. Make sure that

connectors are properly sealed against water if no cables are connected to them

after installation.

Tools required: Wrenches, width 10 mm

(We recommend using socket wrenches.)

1. Assembly

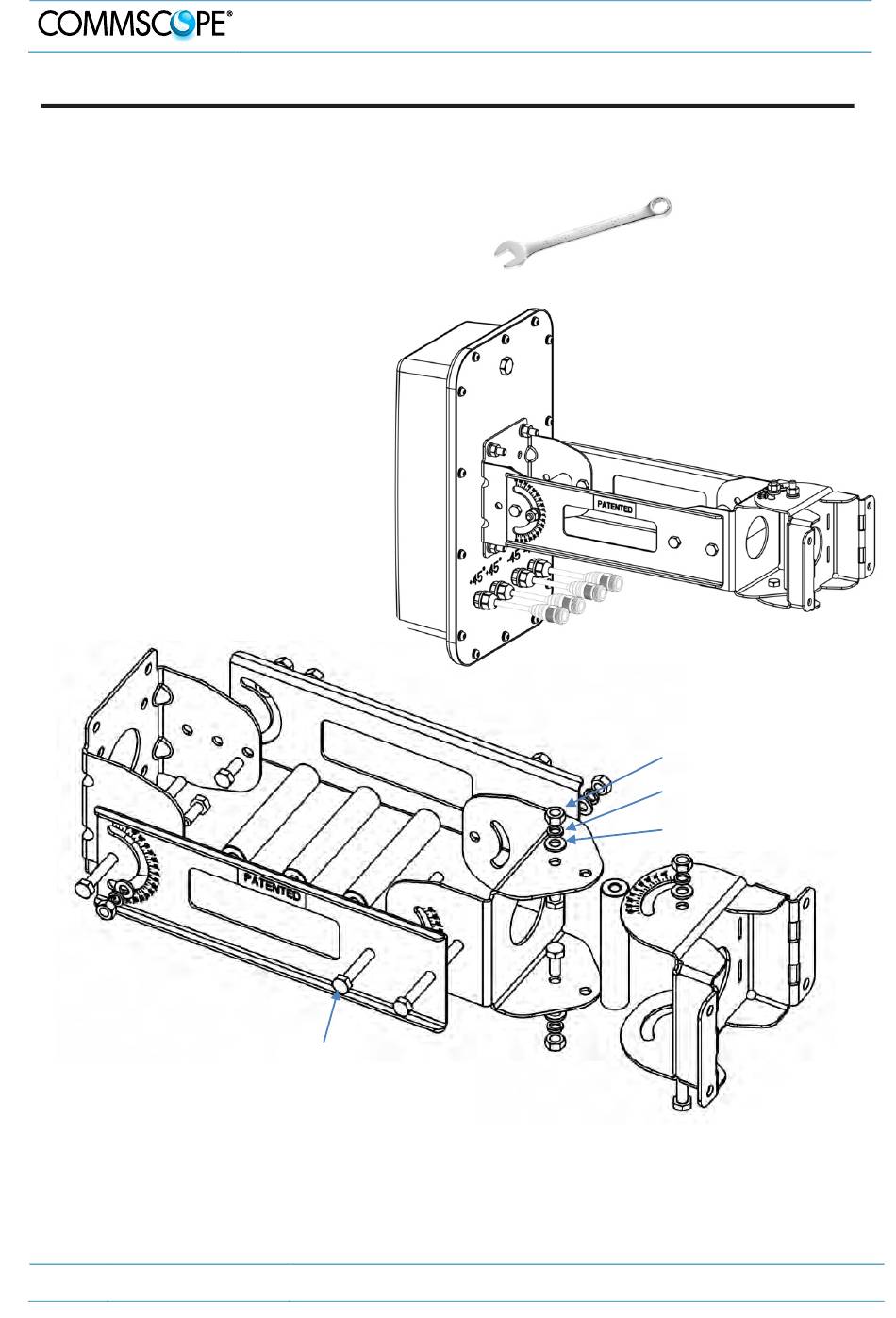

Fit the nine parts together and fasten with screws M6, nuts M6, spring washers, and

washers. (M6 torque: 12N-m)

Page 1

Installation Instruction for CMAX Antennas

Screws

M0149A8A_Installation_CMAX-DMHx0-Antennas

Nut

Spring washer

Washer
