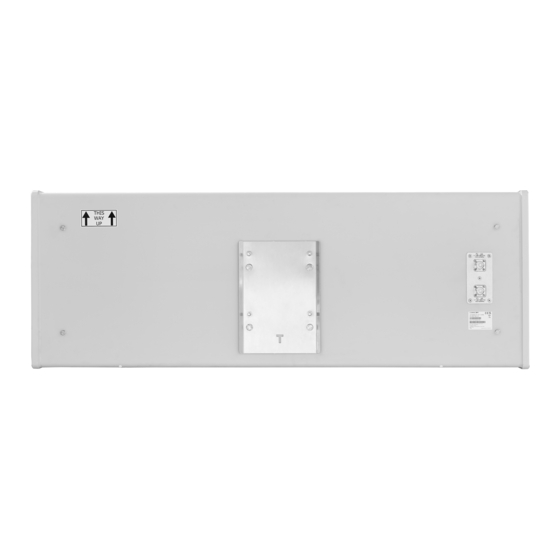

Installation Instruction for CMAX-LHM2 Antennas CMAX-LHM2-30-I53, CMAX-LHM2-3030-I53, CMAX-LHM2-22-I53, CMAX-LHM2-60-I53 Document Number: M0153AEA Document Revision: __________________________ Date: August 2023...
Page 2
DISCLAIMER: This document has been developed by CommScope, and is intended for the use of its customers and customer support personnel. The information in this document is subject to change without notice. While every effort has been made to eliminate errors, CommScope disclaims liability for any difficulties arising from the interpretation of the information contained herein.
1. General 1. General Notes: o Please read the complete description before starting the installation. Be sure that connectors are properly sealed from water if no cables are connected to them after installation. o To minimize the risk of thread seizure, an anti-corrosion oil or grease can be used on nuts and bolts.
3. Wall Mounting 3. Wall Mounting To mount the antenna to a wall (pole mounting see next chapter), proceed as follows: 1. Mark 4 holes onto the wall as shown in the drawing above (diameter of the 4 holes: 10 mm). 2.
4. Pole Mounting (115 mm max. pole diameter) 4. Pole Mounting (115 mm max. pole diameter) Optionally, a pole-mounting kit can be ordered separately from CommScope (ID 7814722). The recommended pole diameter for this mounting kit is 60 - 115 mm.
5. Antenna Mounting 5. Antenna Mounting 5.1. CMAX-LHM2-30-I53, CMAX-LHM2-22-I53, CMAX-LHM2-60-I53 Attach antenna and fasten it with washers and M8 nuts (M8 torque: 27 Nm). 5.2. CMAX-LHM2-3030-I53 Attach antenna and fasten it with washers and M8 nuts (M8 torque: 27 Nm).
50º when mounted to a pole. With wall mounting, this angle is different for each antenna type (see table below). 3. Tighten the fixing screws. Antenna Max. azimuth adjustment CMAX-LHM2-30-I53 40° CMAX-LHM2-3030-I53 40° CMAX-LHM2-22-I53 27° CMAX-LHM2-60-I53 50° 5.4. Elevation Angle 1.
Note: CMAX-LHM2-30-I53, CMAX-LHM2-22-I53, and CMAX-LHM2-60-I53 antenna drainage hole layout is similar to the figure above. The figure above is for reference only. Verify the exact locations with the actual antenna model you have.
Page 10
5. Antenna Mounting The following figure is the reference diagram of the drainage hole layout of the CMAX-LHM2-3030-I53 antenna. Page 10 M0153AEA_Inst_CMAX-LHM2 Installation Guide for CMAX-LHM2 Antennas...
