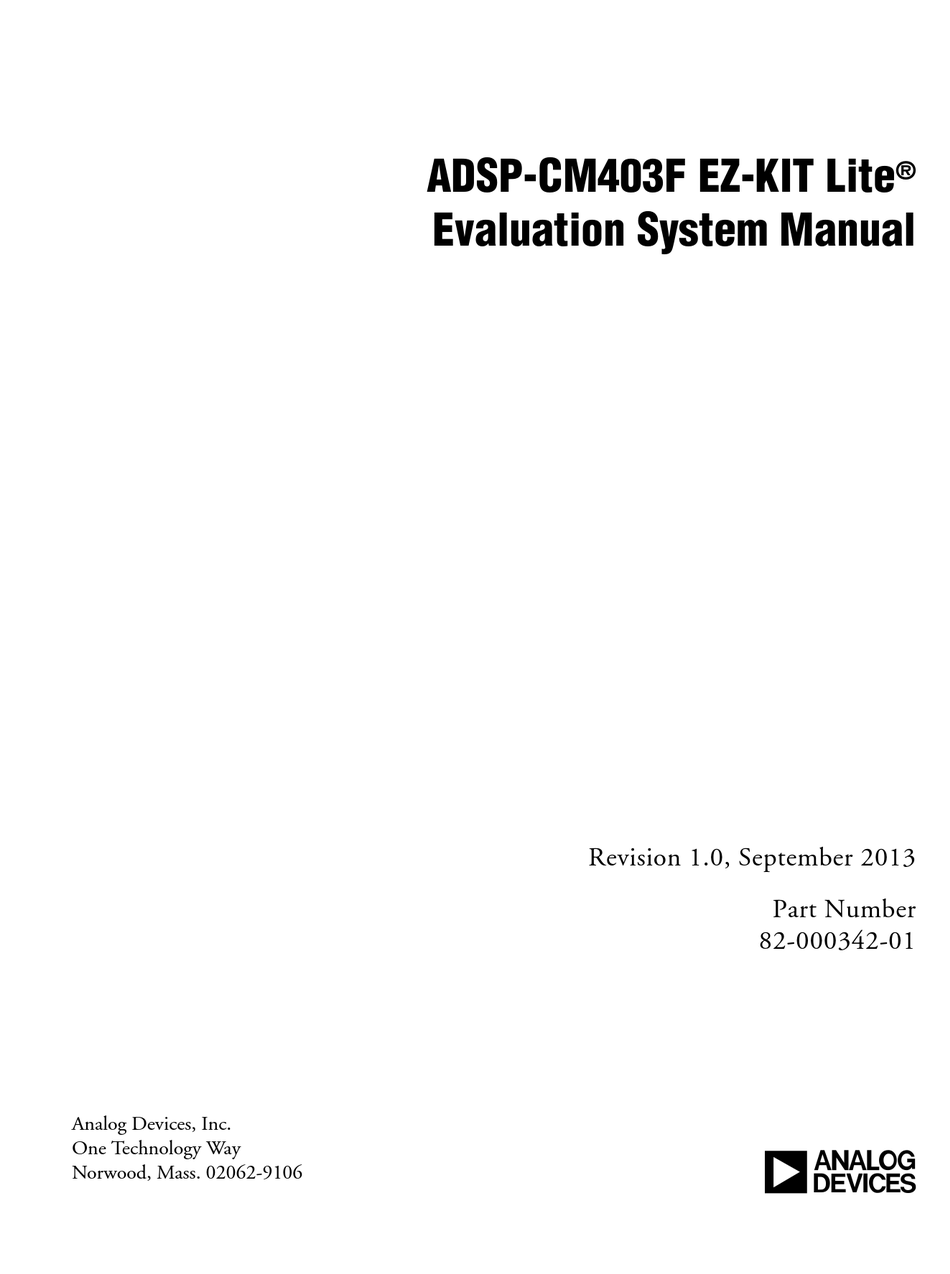

ADSP-CM403F EZ-KIT Lite
®
Evaluation System Manual
Revision 1.0, September 2013
Part Number
82-000342-01
Analog Devices, Inc.
One Technology Way
a
Norwood, Mass. 02062-9106

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADSP-CM403F EZ-KIT Lite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Analog Devices ADSP-CM403F EZ-KIT Lite

Summary of Contents for Analog Devices ADSP-CM403F EZ-KIT Lite

  • Page 1 ADSP-CM403F EZ-KIT Lite ® Evaluation System Manual Revision 1.0, September 2013 Part Number 82-000342-01 Analog Devices, Inc. One Technology Way Norwood, Mass. 02062-9106...
  • Page 2 Analog Devices, Inc. Printed in the USA. Disclaimer Analog Devices, Inc. reserves the right to change this product without prior notice. Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use;...
  • Page 3 Regulatory Compliance The ADSP-CM403F EZ-KIT Lite is designed to be used solely in a labo- ratory environment. The board is not intended for use as a consumer end product or as a portion of a consumer end product. The board is an open system design which does not include a shielded enclosure and therefore may cause interference to other electrical devices in close proximity.

  • Page 5: Table Of Contents

    What’s New in This Manual ............xv Technical Support ................xvi Supported Processors ..............xvi Supported Tools ................xvii Product Information ..............xvii Analog Devices Web Site ............xvii EngineerZone ................. xviii Notation Conventions ..............xviii ADSP-CM403F EZ-KIT Lite Evaluation System Manual...
  • Page 6 Debug Interface ................1-10 Serial Liquid Crystal Display Module Interface ......1-10 Power-On-Self Test ..............1-11 Expansion Interface ..............1-11 Power Architecture ..............1-12 Power Measurements ..............1-12 Example Programs ..............1-13 Reference Design Information ............. 1-13 ADSP-CM403F EZ-KIT Lite Evaluation System Manual...
  • Page 7 System Architecture ..............2-2 Software-Controlled Switches (SoftConfig) ........2-3 Overview of SoftConfig ............2-3 SoftConfig on the ADSP-CM403F EZ-KIT LITE ....2-7 Programming SoftConfig Switches ........... 2-8 Push Buttons and Switches ............2-12 Boot Mode Select Switch (SW1) ..........2-13 Reset Push Button (SW2) ............
  • Page 8 JTAG/SWD/SWV Connector (P1) ........2-21 TRACE and JTAG/SWD/SWV Connector (P2) ....2-22 VREF Buffered Connector (P3) ..........2-22 Power Connector (P7) ............2-22 ADSP-CM403F EZ-KIT LITE BILL OF MATERIALS ADSP-CM403F EZ-KIT LITE SCHEMATIC INDEX viii ADSP-CM403F EZ-KIT Lite Evaluation System Manual...
  • Page 9 PREFACE ® Thank you for purchasing the ADSP-CM403F EZ-KIT Lite , Analog Devices, Inc. low-cost evaluation system for the ADSP-CM403F mixed-signal control processor. ® ® The ADSP-CM403F processor is based on the ARM Cortex -M4 pro- cessor core and is designed for photovoltaic applications. The EZ-KIT Lite is shipped with all of the necessary hardware—you can start the eval-...

  • Page 10: Product Overview

    • Analog Devices ADSP-CM403F processor • 120-pin LQFP package • 30 MHz CLKIN core oscillator • Universal Asynchronous Receiver/Transmitter (UART0) • Analog Devices ADM3252E RS-232 line transceiver • DB9 female connector • Controller Area Network (CAN) interface • Analog Devices ADM3053 transceiver •...
  • Page 11 • Three push buttons: one reset, two IRQ/Flag • Asynchronous connector • 180-pin Samtec (QSH-090-01-F-D-A) 0.5 mm spacing • SMC0 address, data, and control • CLKOUT • SPI0 • UART2 • TWI0 • GPIOs ADSP-CM403F EZ-KIT Lite Evaluation System Manual...
  • Page 12 • GND/3.3V/5V output • 5V input • Analog connector interface • 120-pin Samtec (QSH-060-01-F-D-A) 0.5 mm spacing • ADC0–ADC1 • DAC0–1 • AGND/GND/VREF/5V output • ADR441 voltage reference (VREF) • ADA4899 buffer—0.1” header for reference ADSP-CM403F EZ-KIT Lite Evaluation System Manual...

  • Page 13: Purpose Of This Manual

    ADSP-CM403F EZ-KIT Lite Bill Of Materials. Purpose of This Manual The ADSP-CM403F EZ-KIT Lite Evaluation System Manual provides instructions for installing the product hardware (board). The text describes operation and configuration of the board components and pro- vides guidelines for running your own code on the ADSP-CM403F EZ-KIT Lite.

  • Page 14: Intended Audience

    • Cortex-M4 Devices Generic User Guide • CoreSight ETM-M4 Technical Reference Manual • Cortex-M4 Technical Reference Manual For additional information on this Analog Devices processor, see the ADSP-CM40x Mixed-Signal Control Processor Hardware Reference. This document describes the ARM Cortex-M4 processor core and memory architecture used on the ADSP-CM40x processor, but does not provide detailed programming information for the ARM core.

  • Page 15: Manual Contents

    Lite. • Appendix B, ADSP-CM403F EZ-KIT Lite Schematic Lists the resources for board-level debugging. What’s New in This Manual This is the first edition (Revision 1.0) of the ADSP-CM403F EZ-KIT Lite Evaluation System Manual. ADSP-CM403F EZ-KIT Lite Evaluation System Manual...

  • Page 16: Technical Support

    Technical Support Technical Support You can reach Analog Devices processors and DSP technical support in the following ways: • Post your questions in the processors and DSP support community ® at EngineerZone http://ez.analog.com/community/dsp • Submit your questions to technical support directly at: http://www.analog.com/support...

  • Page 17: Supported Tools

    Preface Supported Tools Information on supported tools for the ADSP-CM403F EZ-KIT Lite and the ADSP-CM40x family of mixed-signal control processors is available http://www.analog.com/CM403FEZKit Product Information Product information can be obtained from the Analog Devices Web site and the online help system.

  • Page 18: Engineerzone

    If you are a registered user, just log on. Your user name is your e-mail address. EngineerZone EngineerZone is a technical support forum from Analog Devices. It allows you direct access to ADI technical support engineers. You can search FAQs and technical information to get quick answers to your embedded processing and DSP design questions.
  • Page 19 A Warning identifies conditions or inappropriate usage of the product that could lead to conditions that are potentially hazardous for the devices users. In the online version of this book, the word Warning appears instead of this symbol. ADSP-CM403F EZ-KIT Lite Evaluation System Manual...
  • Page 20 Notation Conventions ADSP-CM403F EZ-KIT Lite Evaluation System Manual...

  • Page 21: Using Adsp-Cm403F Ez-Kit Lite

    1 USING ADSP-CM403F EZ-KIT LITE This chapter provides information to assist you with development of pro- grams for the ADSP-CM403F EZ-KIT Lite evaluation system. The following topics are covered. • Package Contents • ADSP-CM403F EZ-Board • Default Configuration • IAR Embedded WorkBench and Board Installation •...

  • Page 22: Package Contents

    For detailed information on how to program the ADSP-CM403F proces- sor, refer to the documents listed in the Preface. Package Contents Your ADSP-CM403F EZ-KIT Lite package contains the following items: • ADSP-CM403F EZ-KIT Lite board • Universal 5V DC power •...

  • Page 23: Adsp-Cm403F Ez-Board

    Using ADSP-CM403F EZ-KIT Lite ADSP-CM403F EZ-Board The ADSP-CM403F EZ-KIT Lite is shipped with the J-Link Lite ARM debugger. When the product is not shipped with the debugger, it is referred to as the ADSP-CM403F EZ-Board.  The EZ-Board requires a third party emulator.
  • Page 24 Figure 1-1 shows the default jumper and boot mode switch settings used in installation. Confirm that your board is in the default configuration before using the board. Figure 1-1. Default EZ-KIT Lite Hardware Setup ADSP-CM403F EZ-KIT Lite Evaluation System Manual...

  • Page 25: Iar Embedded Workbench And Board Installation

    For information about the IAR Embedded WorkBench product and software download, go to: http://www.iar.com/en/Products/IAR-Embedded-Workbench The ADSP-CM403F EZ-KIT Lite software, based on the IAR Embedded WorkBench, can be found at: http://www.analog.com/CM403FEZKit Follow these instructions to ensure correct operation of the product soft- ware and hardware.

  • Page 26: Iar Embedded Workbench Session Startup

    ADSP-CM40z-X_Y, where X is the SRAM size in KB and Y is the internal flash size in KB of the part on the target board. On the Analog Devices ADSP-CM403F EZ-KIT Lite, SRAM size is 384 KB, and internal flash size is 2048 KB.
  • Page 27 • In Communication, select USB and Device 0. • In Interface, select JTAG or SWD. 7. Click OK to save the emulator settings. 8. Choose Project > Debug and Download to download the project and start debugging. ADSP-CM403F EZ-KIT Lite Evaluation System Manual...

  • Page 28: Spi Flash

    ( positions 1 and 2). If the external voltage reference is desired, change the jumper to positions 2 and 3. Voltage references for the analog inputs are configurable; refer to Jumpers for more information. ADSP-CM403F EZ-KIT Lite Evaluation System Manual...

  • Page 29: Uart0 Interface (Rs-232)

    The ADSP-CM403F processor has three built-in universal asynchronous transmitters (UARTs). is connected to a RS-232 line transmitter. UART0 has full RS-232 functionality via the Analog Devices ADM3252E UART0 isolated line driver and receiver (  The EZ-KIT Lite voltage isolation components are not intended for protecting external products.

  • Page 30: Can0 Interface

    CAN0 Interface The Controller Area Network 0 ( ) interface of the EZ-KIT Lite is CAN0 connected to the Analog Devices ADM3053 isolated CAN transceiver ). The transceiver is attached to the port of the ADSP-CM403F CAN0 processor via an RJ-11 connector ( ).

  • Page 31: Power-On-Self Test

    Lite consists of three connectors: Asynch or Memory Connector (J2), PWM Connector (J7), and Analog Connector (J9). The connectors con- tain a majority of the processor’s signals. For pinout information, go to ADSP-CM403F EZ-KIT Lite Schematic. ADSP-CM403F EZ-KIT Lite Evaluation System Manual 1-11...

  • Page 32: Power Architecture

     Analog Devices does not support and is not responsible for the effects of additional circuitry. Power Architecture The ADSP-CM403F EZ-KIT Lite has two primary voltage domains: 3.3V and 1.2V.

  • Page 33: Example Programs

    A reference design info package is available for download on the Analog Devices Web site. The package provides information on the design, lay- out, fabrication, and assembly of the EZ-KIT Lite. The information can be found at: http://www.analog.com/CM403FEZKit ADSP-CM403F EZ-KIT Lite Evaluation System Manual 1-13...
  • Page 34 Reference Design Information 1-14 ADSP-CM403F EZ-KIT Lite Evaluation System Manual...

  • Page 35: Adsp-Cm403F Ez-Kit Lite Hardware Reference

    Shows the locations and describes the LEDs. • Connectors Shows the locations and provides part numbers for the on-board connectors. In addition, the manufacturer and part number infor- mation is provided for the mating parts. ADSP-CM403F EZ-KIT Lite Evaluation System Manual...

  • Page 36: System Architecture

    Figure 2-1. EZ-KIT Lite Block Diagram This EZ-KIT Lite is designed to demonstrate the ADSP-CM403F proces- sor’s capabilities. The ADSP-CM403F EZ-KIT Lite has a 30 MHz input clock and runs at 240 MHZ internally. ADSP-CM403F EZ-KIT Lite Evaluation System Manual...

  • Page 37: Software-Controlled Switches (Softconfig)

    ADSP-CM403F EZ-KIT Lite Schematic for more information. Software-Controlled Switches (SoftConfig) On the ADSP-CM403F EZ-KIT Lite, most of the traditional mechanical switches have been replaced by I C software-controlled switches. The remaining mechanical switches are provided for changing the boot mode and push buttons.
  • Page 38 EXAMPLE_SIGNAL_A EXAMPLE_SIGNAL_B used to change to a logic 1 through software that interfaces with ENABLE_A the Microchip. The same procedure for disconnects ENABLE_B EXAMPLE_ from SIGNAL_C EXAMPLE_SIGNAL_D Figure 2-2. Example of Individual FET Switches ADSP-CM403F EZ-KIT Lite Evaluation System Manual...
  • Page 39 Also notice the default setting for reference designators . In order to connect the letters instead of the numbers, the user physically changes all switches on to the position and all switches on to the position. ADSP-CM403F EZ-KIT Lite Evaluation System Manual...
  • Page 40 Software-Controlled Switches (SoftConfig) Figure 2-4. Example of Bus Switch ADSP-CM403F EZ-KIT Lite Evaluation System Manual...

  • Page 41: Softconfig On The Adsp-Cm403F Ez-Kit Lite

    ADSP-CM403F EZ-KIT Lite Hardware Reference Figure 2-5. Example of Mechanical Switch Equivalent to Figure 2-4 SoftConfig on the ADSP-CM403F EZ-KIT LITE The Microchip MCP23017 GPIO expander ( ) provides control for individual electronic switches. The TWI0 interface of the processor com- municates with the Microchip device.

  • Page 42: Programming Softconfig Switches

    LED1 Push buttons Enabled LEDs Enabled Programming SoftConfig Switches On the ADSP-CM403F EZ-KIT Lite, one Microchip MCP23017 device exists. The device has the following programming characteristics: • Each switch has two programmable GPIO registers. GPIO Register Register Address GPIOA 0x12...
  • Page 43 IC that is connected if the FET is enabled. Also note that if a particular functionality of the processor signal is being used, it will be in bold font under the Processor Signal column. ADSP-CM403F EZ-KIT Lite Evaluation System Manual...
  • Page 44 UART0 CTS and High UART0CTS_RTS_LPBK RTS not connected. Change to low for looping back RS-232 CTS and RTS signals UART0 CTS signal High UART0CTS_RST_EN not connected to input of reset IC 2-10 ADSP-CM403F EZ-KIT Lite Evaluation System Manual...
  • Page 45 Signals not connected High TRACE_EXP_EN U51– PB_00, PB_01, PB_ to expansion interface 02, PB_03, PC_02 Signals not connected High SPIFLASH_J2_EN U32– PC_03, PC_05, PC_ to expansion interface 04, PB_10, PB_11 by default ADSP-CM403F EZ-KIT Lite Evaluation System Manual 2-11...

  • Page 46: Push Buttons And Switches

    Push Buttons and Switches This section describes operation of the push buttons and switches. The push button and switch locations are shown in Figure 2-6. Figure 2-6. Push Button and Boot Mode Switch Locations 2-12 ADSP-CM403F EZ-KIT Lite Evaluation System Manual...

  • Page 47: Boot Mode Select Switch (Sw1)

    ). The reset also is connected to the expansion interface via signal. SYS_HWRST GPIO Push Buttons (SW3-4) The GPIO push buttons ( ) are connected to the processor’s signals PB_06/PWM2_AH/TM0_CLK/SMC0_D14 PB_07/PWM2_AL/TM0_TMR0/ , respectively. The signals are connected by default. SMC0_D15 ADSP-CM403F EZ-KIT Lite Evaluation System Manual 2-13...

  • Page 48: Jumpers

    Jumpers Jumpers This section describes functionality of the configuration jumpers. Figure 2-7 shows the jumper locations. Figure 2-7. Jumper Locations 2-14 ADSP-CM403F EZ-KIT Lite Evaluation System Manual...

  • Page 49: Vref0 External Source Jumper (Jp1)

    ). The processor’s internal input is selected by placing a jumper on pins 1 and 2 of (default). The external input, supplied by the Analog Devices ADR441 VREF0 ultra-low noise voltage reference ( ), is selected by placing a jumper on...

  • Page 50: Power Select Jumper (Jp4)

    Power Jumpers (P4–6) Remove jumpers listed in Table 2-6 to measure the respective voltage across the adjacent sense resistor. Table 2-6. Power Jumpers Power Jumper Resistor VDD_INT VDD_EXT 3.3V 2-16 ADSP-CM403F EZ-KIT Lite Evaluation System Manual...

  • Page 51: Leds

    ADSP-CM403F EZ-KIT Lite Hardware Reference LEDs This section describes the on-board LEDs. Figure 2-8 shows the LED locations. Figure 2-8. LED Locations ADSP-CM403F EZ-KIT Lite Evaluation System Manual 2-17...

  • Page 52: Gpio Leds (Led1-3)

    Reset LED (LED4) When (red), it indicates that the master reset of all the major LED4 ICs is active. The reset LED is controlled by the Analog Devices ADM708 supervisory reset circuit. A master reset is asserted by pressing which activates .

  • Page 53: Connectors

    This section describes connector functionality and provides information about mating connectors. The connector locations are shown in Figure 2-9. Figure 2-9. Connector Locations  Connectors on the back of the board are noted with dotted lines. ADSP-CM403F EZ-KIT Lite Evaluation System Manual 2-19...

  • Page 54: Dce Uart Connector (J1)

    ) is a socket that mates with the 20  2 The character display connector ( character display. Part Description Manufacturer Part Number IDC 5x2 SMT SAMTEC SSW-105-22-F-D-VS Mating Connector 20x2 character display with back- NEW HAVEN DISPLAY NHD-0220D3Z-FL-GBW light (requires header) 2-20 ADSP-CM403F EZ-KIT Lite Evaluation System Manual...

  • Page 55: Pwm Connector (J7)

    120-pin high speed header SAMTEC QTH-060-01-F-D-A JTAG/SWD/SWV Connector (P1) The JTAG/SWD/SWV header ( ) provides debug connectivity for the microprocessor. This is a 0.1” connector from SAMTEC (SHF-110-01-L-D-TH). For more information, see Debug Interface. ADSP-CM403F EZ-KIT Lite Evaluation System Manual 2-21...

  • Page 56: Trace And Jtag/Swd/Swv Connector (P2)

    VREF the voltage reference. There is an adjacent analog grounding point ( TP11 Power Connector (P7) Part Description Manufacturer Part Number 0.65 mm power jack 045-0883R Mating Connector 5.0VDC@3.6A power supply GLOBETEK GS-1750(R) 2-22 ADSP-CM403F EZ-KIT Lite Evaluation System Manual...
  • Page 57 DEVICES ADR441ARMZ U2,U6 ANALOG ADR441ARMZ MSOP8 DEVICES ADP2118ACPZ ANALOG ADP2118ACPZ QFN65P400X400X80- DEVICES ADA4899 SOIC8 ANALOG ADA4899-1YRDZ-R7 DEVICES ADM3252E ANALOG ADM3252EABCZ BGA44C100P11X11_ DEVICES 1200X1200X103 ADM3053 ANALOG ADM3053BRWZ SOIC127P1032X265-2 DEVICES ADSP-CM403FBSWZ ANALOG ADSP-CM403FBSWZENG QFPS40P1600X1600X DEVICES 160-121N ADSP-CM403F EZ-KIT Lite Evaluation System Manual...
  • Page 58 ROTARY SWT027 COPAL S-8110 MCP23017 DIGI-KEY MCP23017-E/ML-ND QFN65P600X600-29N GREEN LED_0603 LED5 DIGI-KEY 475-1409-2-ND 0.1UF 16V 10% 0402 C57-C59 DIGI-KEY 587-1451-2-ND 30MHZ OSC012 DIGI-KEY 300-8257-1-ND RED LED_0603 LED4,LED6 DIGI-KEY 475-2512-2-ND YELLOW LED_0603 LED1-LED3 DIGI-KEY 475-2558-1-ND ADSP-CM403F EZ-KIT Lite Evaluation System Manual...

  • Page 59: Adsp-Cm403F Ez-Kit Lite Bill Of Materials

    ADSP-CM403F EZ-KIT Lite Bill Of Materials Ref. Qty Description Reference Manufacturer Part Number Designator 10UF 6.3V 20% 0402 DIGI-KEY 445-8920-1-ND STD2805T4 DIGI-KEY 497-7465-1-ND TO228P972X240-3N IDC 2PIN_JUMPER_ SJ1-SJ7 DIGI-KEY S9001-ND SHORT PWR .65MM CON045 DIGI-KEY CP1-023-ND 1K 1/10W 5% 0603 DIGI-KEY 311-1.0KGRTR-ND...
  • Page 60 PANASONIC ERJ-3EKF60R4V 45.3K 1/10W 1% 0402 R113 PANASONIC ERJ-2RKF4532X 24.9 1/10W 1% 0402 PANASONIC ERJ-2RKF24R9X 10UF 10V 20% ELEC_ PANASONIC EEE-1AA100NR PI3A125 SC70_5 U8-U21,U32- PERICOM PI3A125CEX U38,U51-U55 0.0 1/10W 1% 0603 R13,R14,R16, PHYCOMP 232270296001L ADSP-CM403F EZ-KIT Lite Evaluation System Manual...
  • Page 61 ADSP-CM403F EZ-KIT Lite Bill Of Materials Ref. Qty Description Reference Manufacturer Part Number Designator 200.0K 1/16W 1% R142 ROHM MCR01MZPF2003 0402 IDC 5X2 IDC5x2_ SAMTEC SSW-105-22-F-D-VS SMT_F 0.05 10X2 SAMTEC_ SAMTEC SHF-110-01-L-D-TH SHF-110-01-L-D-TH 0.5MM 180PIN SAM- J2,J7 SAMTEC QSH-090-01-F-D-A TEC_QSH-090-F-D-A 0.5MM 120PIN SAM-...
  • Page 62 33 1/16W 5% 0402 R9,R62,R63, VISHAY CRCW040233R0JNEA R94,R101,R1 10 1/10W 5% 0603 R34,R71,R72, VISHAY CRCW060310R0JNEA R107 30A GSOT05 SOT23-3 VISHAY GSOT05-GS08 30A GSOT03 SOT23-3 D1,D3 VISHAY GSOT03-GS08 22UF 16V 10% 1210 C45-C47,C96 YAIYO EMK325BJ226KM-T -C98 YUDEN ADSP-CM403F EZ-KIT Lite Evaluation System Manual...
  • Page 63 ADSP-CM403F EZ-KIT SCHEMATIC ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD Title ADSP-CM403F EZ-KIT TITLE Size Board No. A0342-2012 Date Sheet 08/27/2013...
  • Page 64 3.3V TRACE AND JTAG/SWD PA_00/PWM0_SYNC/SPT1_ACLK PA_00/PWM0_SYNC/SPT1_ACLK PC_00/CAN0_TX/SPT1_BTDV/UART1_TX/SMC0_A04 PC_00/CAN0_TX/SPT1_BTDV/UART1_TX/SMC0_A04 PA_01/PWM0_TRIP0/SPT1_AFS PA_01/PWM0_TRIP0/SPT1_AFS PC_01/UART0_RX/SMC0_A05/TM0_ACI5 PC_01/UART0_RX/SMC0_A05/TM0_ACI5 PA_02/PWM0_AH/SPT1_AD0 PA_02/PWM0_AH/SPT1_AD0 JTG_TMS/SWDIO PC_02/UART0_TX/TRACE_D3/SPI0_RDY PC_02/UART0_TX/TRACE_D03/SPI0_RDY PA_03/PWM0_AL/SPT1_AD1 PA_03/PWM0_AL/SPT1_AD1 JTG_TCK/SWCLK R114 PC_03/SPI0_CLK/PWM2_CH PC_03/SPI0_CLK/PWM2_CH 0402 PA_04/PWM0_BH/SPT1_BCLK PA_04/PWM0_BH/SPT1_BCLK JTG_TDO/SWO pin 7 cut PC_04/SPI0_MISO/PWM2_CL PC_04/SPI0_MISO/PWM2_CL PA_05/PWM0_BL/SPT1_BFS PA_05/PWM0_BL/SPT1_BFS JTG_TDI PC_05/SPI0_MOSI/PWM2_DH PC_05/SPI0_MOSI/PWM2_DH R128 PA_06/PWM0_CH/SPT1_BD0 PA_06/PWM0_CH/SPT1_BD0 JTAG_BOARD_RESET 0402 PC_06/SPI0_SEL1/PWM2_DL/SYS_DSWAKE0...
  • Page 65 0805 DAC0_VOUT DAC0_VOUT ADC0_VIN00 ADC0_VIN00 DAC1_VOUT DAC1_VOUT ADC0_VIN01 ADC0_VIN01 ADC0_VIN02 ADC0_VIN00 ADC0_VIN01 ADC0_VIN02 ADC0_VIN03 ADC0_VIN03 ADC0_VIN04 ADC0_VIN04 BYP_A0 BYP_A0 ADC0_VIN02 ADC0_VIN03 ADC0_VIN05 ADC0_VIN05 BYP_A1 BYP_A1 ADC0_VIN06 ADC0_VIN06 BYP_D0 BYP_D0 ADC0_VIN04_EXP_CONN ADC0_VIN05 ADC0_VIN07 ADC0_VIN07 REFCAP REFCAP ADC0_VIN08 ADC0_VIN08 ADC0_VIN06 ADC0_VIN07 AGND ADC0_VIN09 ADC0_VIN09 R147...
  • Page 66 3.3V VDD_EXT VDD_INT TP12 1206 VDD_INT0 VDD_INT1 VDD_INT2 VDD_VREG VDD_INT3 VDD_INT4 VDD_EXT0 VDD_EXT1 VDD_EXT2 VREG_BASE VDD_EXT3 SYS_CLKOUT 0603 VDD_EXT4 3.3V VDD_EXT5 VDD_EXT6 STD2805T4 VDD_EXT7 TO228P972X240-3N VDD_EXT8 3.3V VDD_EXT9 VDD_EXT10 VDD_EXT11 1206 3.3V VDD_EXT12 0603 0603 VDD_EXT13 3.3V 3.3V 3.3V VDD_EXT14 VDD_INT 0402 R138...
  • Page 67 3.3V 3.3V I2C address 0100 000 R224 0402 GPA0 TRACE_EXP_EN GPA1 PB_10_J7_EN TWI0_SCL PB_00/PWM0_DH/TRACE_CLK/SPT0_ACLK/SMC0_D08/CNT0_ZM PB_00/PWM0_DH/TRACE_CLK/SPT0_ACLK/SMC0_D08/CNT0_ZM_EXP GPA2 PB_11_J7_EN TWI0_SDA PI3A125 GPA3 UART0RTS_EN SC70_5 SYS_HWRST RESET GPA4 UART0RX_EN GPA5 UART0CTS_EN INTA GPA6 UART0CTS_RTS_LPBK PB_01/PWM0_DL/TRACE_D00/SPT0_AFS/SMC0_D09/CNT0_UD PB_01/PWM0_DL/TRACE_D00/SPT0_AFS/SMC0_D09/CNT0_UD_EXP INTB GPA7 UART0CTS_RST_EN PI3A125 SC70_5 GPB0 CAN0_EN GPB1 PUSHBUTTON1_EN PB_02/PWM1_DH/TRACE_D01/SPT0_AD0/SMC0_D10/CNT0_DG...
  • Page 68 3.3V 3.3V 10UF 0.1UF 0.1UF 0805 0402 0402 VCC0 VISO0 VCC1 VISO1 3.3V VCC2 VISO2 0.1UF 10UF 0.1UF 0402 0805 0402 RS-232 0.10UF 0402 0.10UF 0402 0402 0402 0402 GND2 UART0RTS_EN PC_02/UART0_TX/TRACE_D03/SPI0_RDY TIN1 TOUT1 PB_04/PWM2_SYNC/UART0_RTS/SPT0_ATDV/SMC0_D12/CNT1_UD TIN2 TOUT2 PI3A125 SC70_5 ROUT1 RIN1 0402 ROUT2...
  • Page 69 CAN0_VISO 3.3V CAN0_VISO CAN0_CANH R139 0402 VISOIN 60.4 0603 0603 VISOOUT CAN0_EN CAN0_VREF VREF CAN0_TX 0402 PC_00/CAN0_TX/SPT1_BTDV/UART1_TX/SMC0_A04 CANH PI3A125 CAN0_RX CANL SC70_5 CON039 60.4 RJ11 GND1_0 0603 0603 GND1_1 GND2_0 PB_15/CAN0_RX/SPT1_ATDV/UART1_RX/SMC0_A03/TM0_ACI4 GND1_2 GND2_1 GND1_3 GND2_2 PI3A125 4700PF GND1_4 GND2_3 SC70_5 0603 0402 CAN0_CANL...
  • Page 70 PB_13/SINC0_D2/CNT0_OUTA/SPI0_SEL2/SMC0_A01/TM0_ACLK0/SYS_DSWAKE3 PA_01/PWM0_TRIP0/SPT1_AFS PA_00/PWM0_SYNC/SPT1_ACLK PB_14/SINC0_D3/CNT0_OUTB/SPI0_SEL3/SMC0_A02/SPI0_SS/SYS_DSWAKE2 PB_15/CAN0_RX/SPT1_ATDV/UART1_RX/SMC0_A03/TM0_ACI4_EXP PC_00/CAN0_TX/SPT1_BTDV/UART1_TX/SMC0_A04_EXP PC_01/UART0_RX/SMC0_A05/TM0_ACI5 PA_02/PWM0_AH/SPT1_AD0 PA_04/PWM0_BH/SPT1_BCLK PA_03/PWM0_AL/SPT1_AD1 PA_05/PWM0_BL/SPT1_BFS ADDRESS PA_06/PWM0_CH/SPT1_BD0 PB_00/PWM0_DH/TRACE_CLK/SPT0_ACLK/SMC0_D08/CNT0_ZM_EXP PA_07/PWM0_CL/SMC0_AMS2/SPT1_BD1 PB_01/PWM0_DL/TRACE_D00/SPT0_AFS/SMC0_D09/CNT0_UD_EXP PA_11/PWM1_TRIP0/UART1_CTS/SMC0_D03/TM0_ACLK2 PA_10/PWM1_SYNC/SMC0_D02/TM0_ACLK3 PA_12/PWM1_AH/TM0_TMR4/SMC0_D04 PA_14/PWM1_BH/TM0_TMR6/SMC0_D06 PA_13/PWM1_AL/TM0_TMR5/SMC0_D05 PA_15/PWM1_BL/TM0_TMR3/SMC0_D07 PA_08/PWM1_CH/SMC0_D00/TM0_ACLK5 PB_02/PWM1_DH/TRACE_D01/SPT0_AD0/SMC0_D10/CNT0_DG_EXP PA_08/PWM1_CH/SMC0_D00/TM0_ACLK5 PA_09/PWM1_CL/SMC0_D01/TM0_ACLK4 PA_11/PWM1_TRIP0/UART1_CTS/SMC0_D03/TM0_ACLK2 PA_10/PWM1_SYNC/SMC0_D02/TM0_ACLK3 PA_09/PWM1_CL/SMC0_D01/TM0_ACLK4 PB_03/PWM1_DL/TRACE_D02/SPT0_AD1/SMC0_D11/CNT1_ZM_EXP PA_12/PWM1_AH/TM0_TMR4/SMC0_D04 PA_13/PWM1_AL/TM0_TMR5/SMC0_D05 PB_04/PWM2_SYNC/UART0_RTS/SPT0_ATDV/SMC0_D12/CNT1_UD PB_05/PWM2_TRIP0/UART0_CTS/TM0_TMR7/SMC0_D13/CNT1_DG PA_14/PWM1_BH/TM0_TMR6/SMC0_D06 PA_15/PWM1_BL/TM0_TMR3/SMC0_D07 PB_00/PWM0_DH/TRACE_CLK/SPT0_ACLK/SMC0_D08/CNT0_ZM_EXP PB_01/PWM0_DL/TRACE_D00/SPT0_AFS/SMC0_D09/CNT0_UD_EXP PB_08/PWM2_BH/TM0_TMR1/UART1_RX/SMC0_ARDY/TM0_ACI2 PB_02/PWM1_DH/TRACE_D01/SPT0_AD0/SMC0_D10/CNT0_DG_EXP PB_03/PWM1_DL/TRACE_D02/SPT0_AD1/SMC0_D11/CNT1_ZM_EXP PB_06/PWM2_AH/TM0_CLK/SMC0_D14 PB_04/PWM2_SYNC/UART0_RTS/SPT0_ATDV/SMC0_D12/CNT1_UD...
  • Page 71 LED1_GPIO1_EN PB_15/CAN0_RX/SPT1_ATDV/UART1_RX/SMC0_A03/TM0_ACI4 PI3A125 SC70_5 LED2_GPIO2_EN PB_04/PWM2_SYNC/UART0_RTS/SPT0_ATDV/SMC0_D12/CNT1_UD 3.3V PI3A125 SC70_5 LED3_GPIO3_EN PB_05/PWM2_TRIP0/UART0_CTS/TM0_TMR7/SMC0_D13/CNT1_DG POWER PI3A125 LED3 LED2 LED1 LED5 SC70_5 YELLOW YELLOW YELLOW GREEN LED_0603 LED_0603 LED_0603 LED_0603 330.0 330.0 330.0 330.0 0402 0402 0402 0402 3.3V IDT74FCT3244APY SSOP20 0402 0402 0402 0402 0402 0402...
  • Page 72 SHORTING JUMPER DEFAULT=1&2 GND Test Points are scattered on PCB for Test Measurement Purposes. LABEL "GND" ON ALL TPs WALL_POWER TP23 TP22 TP21 TP20 TP19 LOOP_2838 5V_INPUT IDC3X1 WALL_POWER FER3 FUS004 FER002 10UF GSOT05 1000PF 1210 MBRS540T3G 1206 SOT23-3 POWER CON045 "5V"...
  • Page 73 EZ-KIT Lite, 1-4, P1 (JTAG/SWD/SWV), 2-21 P2 (TRACE and JTAG/SWD/SWV), 2-22 P3 (VREF buffered), 2-22 JTAG/SWD/SWV connector (P1), 2-21 P7 (power), 2-22 jumpers contents, of this EZ-KIT Lite package, diagram of locations, 2-14 ADSP-CM403F EZ-KIT Lite Evaluation System Manual...
  • Page 74 (P7), 2-22 technical support, power-on-self test (POST), 1-11 TRACE and JTAG/SWD/SWV connector product overview, (P2), 2-22 programming SoftConfig switches, push buttons and switches, 2-12 PWM connector (J7), 2-21 VREF buffered connector (P3), 2-22 ADSP-CM403F EZ-KIT Lite Evaluation System Manual...
