SET COMMUNICATION:

This section defines the fundamental communication parameters of Modbus TCP.
By Pressing the "Set Communication" button from the main window for SW67863 (Fig. 2)
the window "Set Communication" appears (Fig. 3).
The means of the fields for "IO-LINK" are:
In the fields "Select Device" the type of IO-LINK channels is defined;
The means of the fields for "Modbus TCP Slave" are:
In the fields "IP Address" the IP address for Modbus TCP side of the converter is
defined;
In the fields "SubNet
is defined;
In the fields "Gateway" the default gateway of the net is defined. This feature can
be enabled or disabled pressing the Check Box field. This feature is used for going
out of the net;
In the field "Port" the TCP port used for Modbus TCP communication is defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Mask" the SubNet Mask for Modbus TCP side of the converter
User Manual IO-Link / Modbus TCP Slave
Document code: MN67863_ENG Revision 1.000

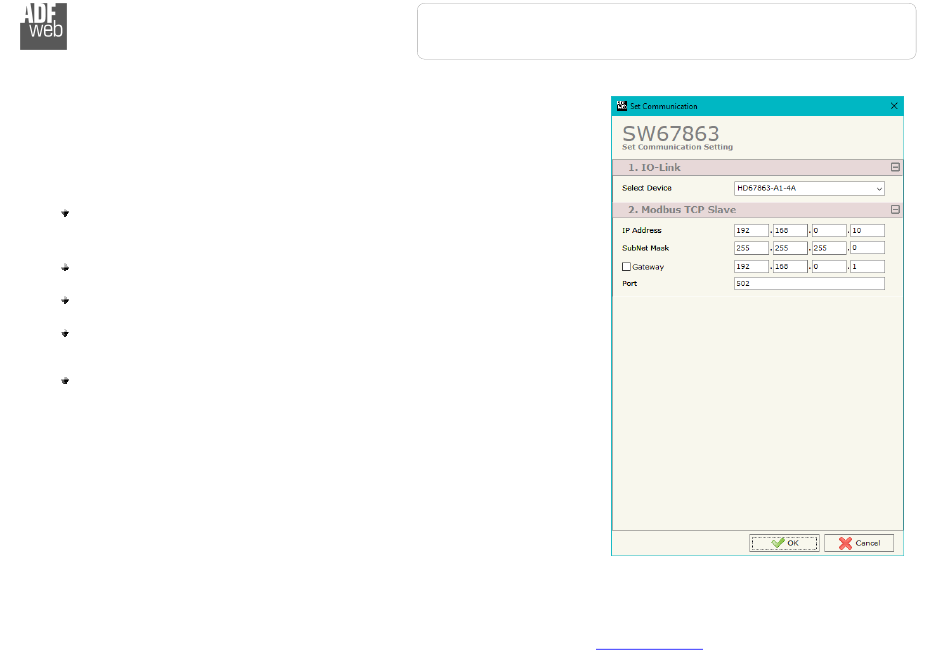

Figure 3: "Set Communication" window
