UPDATE DEVICE:

By pressing the "Update Device" button, it is possible to load the created
Configuration into the device; and also the Firmware, if necessary. This by using the
Ethernet port.
If you don't know the actual IP address of the device, you have to use this
procedure:
Turn OFF the Device;
Put Dip1 of 'Dip-Switch A' in ON position;
Turn ON the device
Connect the Ethernet cable;
Insert the IP "192.168.2.205";
Select which operations you want to do;
Press the "Execute update
When all the operations are "OK" turn OFF the Device;
Put Dip1 of 'Dip-Switch A' in OFF position;
Turn ON the device.
If you know the actual IP address of the device, you have to use this procedure:
Turn ON the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Select which operations you want to do;
Press the "Execute update
When all the operations are "OK" the device automatically goes at Normal Mode.
At this point the configuration/firmware on the device is correctly updated.
ADFweb.com Srl – IT31010 – Mareno – Treviso
firmware" button to start the upload;
firmware" button to start the upload;
User Manual IO-Link / Modbus TCP Slave
Document code: MN67863_ENG Revision 1.000

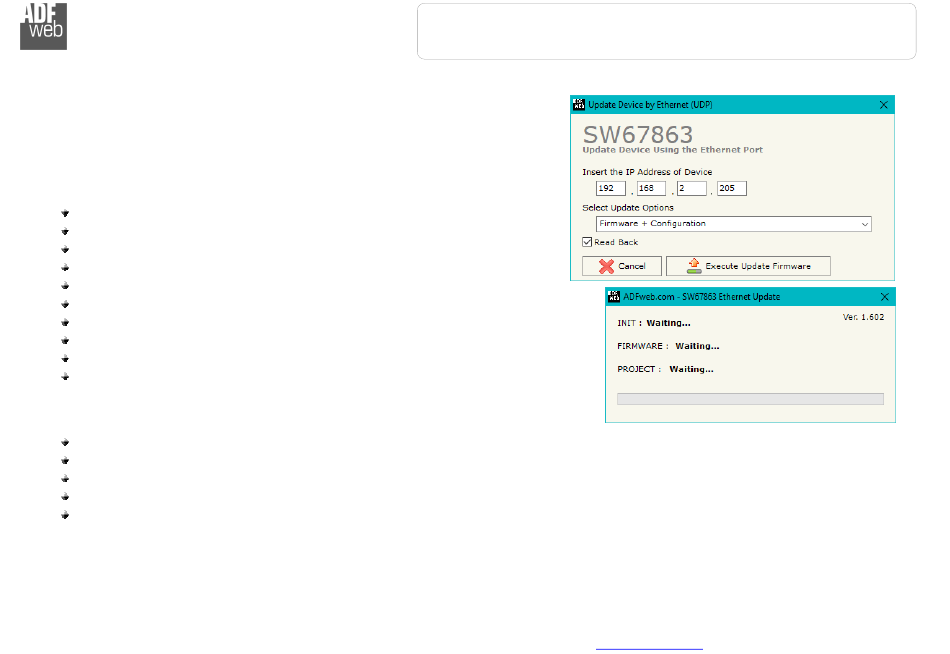

Figure 13: "Update device" windows
