In the "List of IO-Link Channel" section it is possible to configure all the IO-Link channels of the converter (Fig. 5).

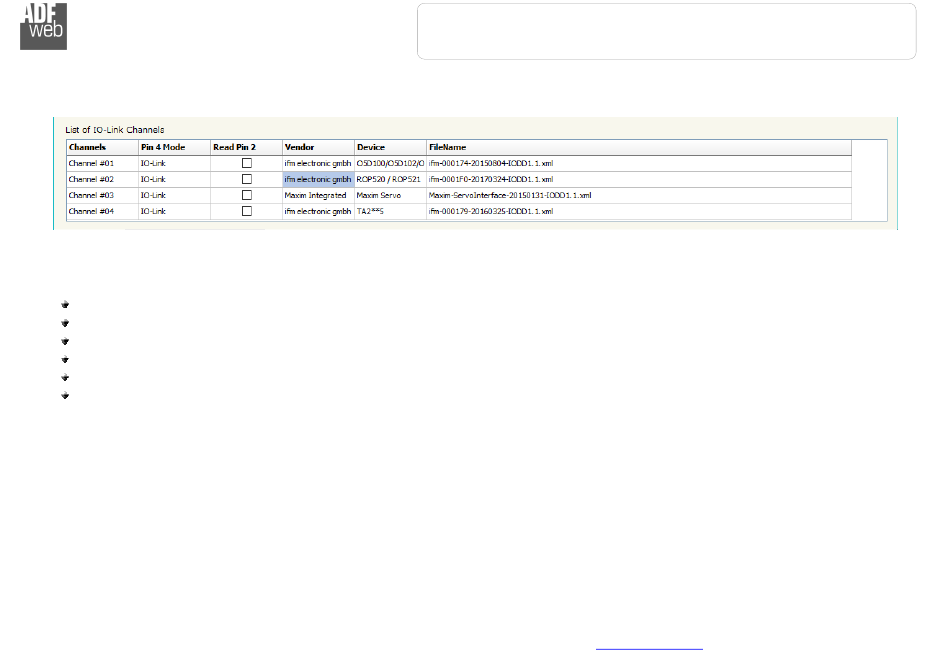

Figure 5: "List of IO-Link Channel" section
The meanings of the fields are:
In the field "Channels" the index of the IO-Link channel is defined;
In the field
"Pin 4
Mode" the mode of the pin 4 of the IO-Link device is defined (if "Io-Link" is selected, a file IODD is needed);
If the field
"Read Pin
2" is checked, the pin 2 of the IO-Link device is read;
In the field "Vendor" the vendor of the IO-Link device is defined;
In the field "Device" the name of the IO-Link device is defined;
In the field "FileName" the name of the IODD file inserted is defined;
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual IO-Link / Modbus TCP Slave
Document code: MN67863_ENG
Revision 1.000
INFO:
www.adfweb.com
Page 22 of 36
