Industrial Electronic Devices
LEDS:

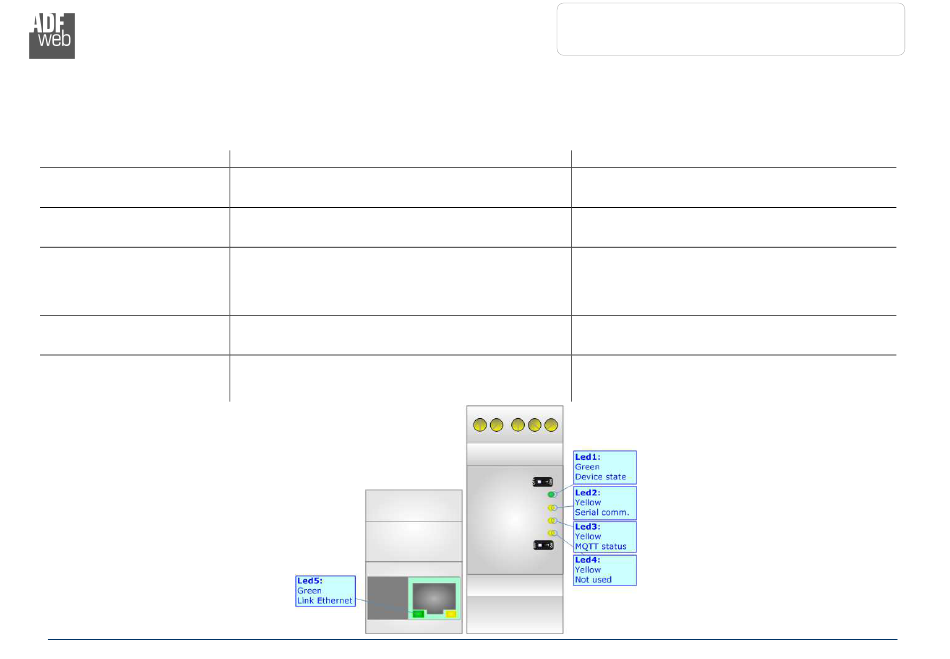

The device has got five LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device State (green)
2: BACnet communication
(yellow)
3: MQTT status (yellow)
4: Not used (yellow)
5: Ethernet Link (green)
ADFweb.com S.r.l.
Normal Mode
Blinks slowly (~1Hz)
Blinks when BACnet communication is running
ON: MQTT not connected
OFF: MQTT connected
Blinking: MQTT communication
OFF
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
User Manual BACnet Slave / MQTT
Document code: MN67938_ENG
Revision 1.000
Boot Mode
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
Page 10 of 34
