Industrial Electronic Devices
User Manual
Revision 1.000
English

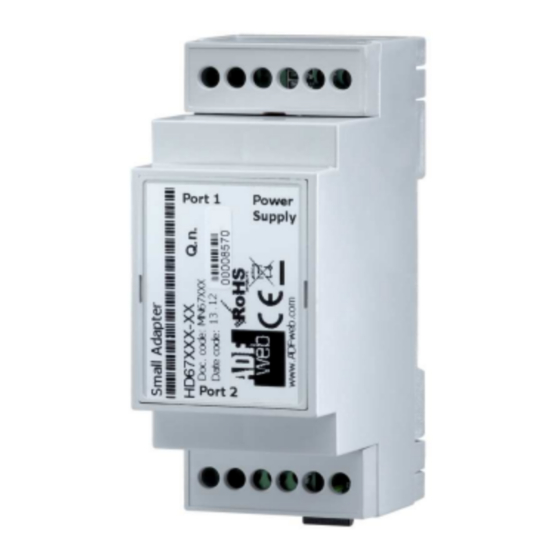

Ethernet / MQTT - Converter
(Order Code: HD67930-B2)
For Website information:
www.adfweb.com?Product=HD67930-B2
For Price information:
www.adfweb.com?Price=HD67930-B2
Benefits and Main Features:
Very easy to configure
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual Ethernet / MQTT
Document code: MN67930_ENG
For others MQTT products, see also the following links:
Converter MQTT to
www.adfweb.com?Product=HD67931
www.adfweb.com?Product=HD67932
www.adfweb.com?Product=HD67933
www.adfweb.com?Product=HD67934
www.adfweb.com?Product=HD67935
www.adfweb.com?Product=HD67936
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
Revision 1.000
Page 1 of 31
(M-Bus)
(Serial)
(Modbus Master)
(Modbus Slave)
(Modbus TCP Master)
(Modbus TCP Slave)
Advertisement
Table of Contents
Related Manuals for ADF Web HD67930-B2
Summary of Contents for ADF Web HD67930-B2

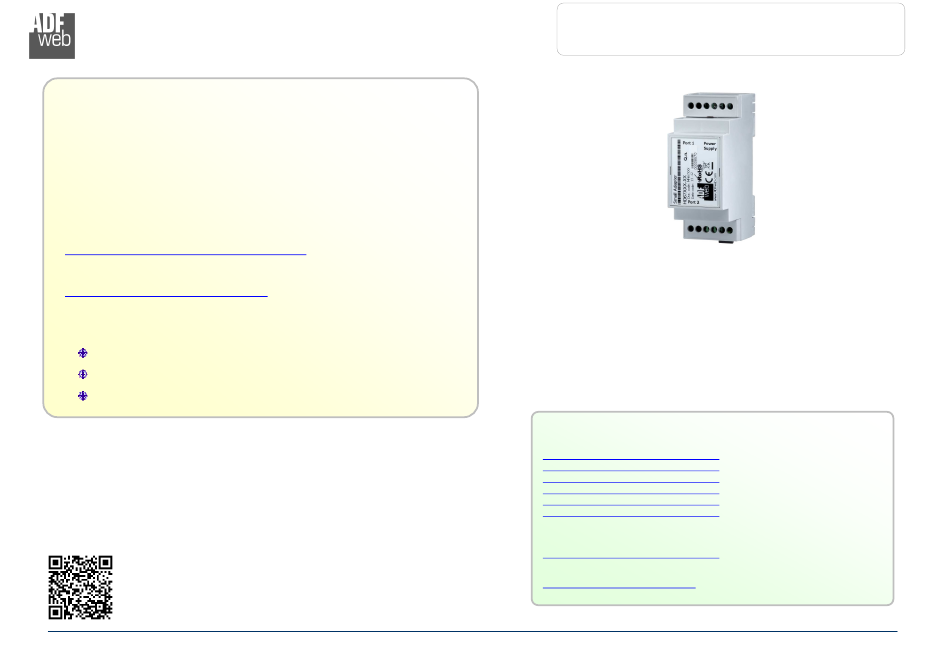

- Page 1 Revision 1.000 Page 1 of 31 Industrial Electronic Devices User Manual Revision 1.000 English Ethernet / MQTT - Converter (Order Code: HD67930-B2) For Website information: www.adfweb.com?Product=HD67930-B2 For Price information: www.adfweb.com?Price=HD67930-B2 Benefits and Main Features: Very easy to configure Power Supply 18…35V DC and 8…24 V AC Temperature range: -40°C/+85°C (-40°F/+185°F)
-
Page 2: Table Of Contents
User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 2 of 31 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 3 of 31 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 4 of 31 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com S.r.l. -
Page 5: Connection Scheme
User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 5 of 31 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67930-B2 ADFweb.com S.r.l. -
Page 6: Characteristics
Revision 1.000 Page 6 of 31 Industrial Electronic Devices CHARACTERISTICS: The HD67930-B2 is a Ethernet / MQTT Converter. It allows the following characteristics: Electrical isolation between Ethernet and Power Supply; Mountable on 35mm Rail DIN; Wide power supply input range: 18…35V DC and 8…24V AC;... -
Page 7: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67930-B2 Caution: Not reverse the polarity power HD67930-B2 ADFweb.com S.r.l. -
Page 8: Function Modes
User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 8 of 31 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’... -
Page 9: Leds
User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 9 of 31 Industrial Electronic Devices LEDS: The device has got five LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 10: Ethernet
The Ethernet port is used for programming the device and for MQTT/Ethernet communication. The Ethernet connection must be made using Connector2 of HD67930-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable. -
Page 11: Use Of Compositor Sw67930
User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 11 of 31 Industrial Electronic Devices USE OF COMPOSITOR SW67930: To configure the Converter, use the available software that runs with Windows called SW67930. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 12: New Configuration / Open Configuration
User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 12 of 31 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “Ethernet / MQTT - Converter”... -
Page 13: Software Options
User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 13 of 31 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 14 User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 14 of 31 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software. ADFweb.com S.r.l.
-
Page 15: Set Communication
User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 15 of 31 Industrial Electronic Devices SET COMMUNICATION: By Pressing the “Set Communication” button from the main window for SW67930 (Fig. 2) the window “Set Communication” appears (Fig. 3). The window is divided in different sections in order to define the different parameters of the converter: Ethernet... - Page 16 User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 16 of 31 Industrial Electronic Devices MQTT: This section is used to define the main parameters of MQTT line. The means of the fields are: In the field “Server URL”...
- Page 17 User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 17 of 31 Industrial Electronic Devices THERNET This section is used to define the general parameters of Ethernet. The means of the fields are: In the field “Ip Address” the IP address of the converter is defined; In the field “SubNet Mask”...
- Page 18 User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 18 of 31 Industrial Electronic Devices This section is used to define the general parameters of Wi-Fi. It is possible to defined the type of Wi-Fi communication: Access Point; Client.
- Page 19 User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 19 of 31 Industrial Electronic Devices The means of the fields for Client configuration are: If the field “Obtain an IP Address automatically” is checked, the converter gets the IP Address using DHCP. Otherwise, the IP Address is defined as static;...
- Page 20 User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 20 of 31 Industrial Electronic Devices NTP (N ETWORK ROTOCOL This section is used to define the parameters of NTP protocol. The means of the fields are: In the field “Server URL”...
-
Page 21: Mqtt Set Topic
User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 21 of 31 Industrial Electronic Devices MQTT SET TOPIC: By Pressing the “MQTT Set Topic” button from the main window for SW67930 (Fig. 2) the window “Set MQTT Topics” appears (Fig. 4). This section is used to define the MQTT topics where the converter will publish the data from Ethernet and the topic that the converter will subscribes for writing the data to Ethernet. -
Page 22: Mqtt Set Access
User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 22 of 31 Industrial Electronic Devices MQTT SET ACCESS: By Pressing the “MQTT Set Access” button from the main window for SW67930 (Fig. 2) the window “Set MQTT Topics” appears (Fig. 5). This section is used to link the MQTT topics to the Ethernet devices that will send and receive the Ethernet messages. - Page 23 User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 23 of 31 Industrial Electronic Devices The data of the columns in the “MQTT Subscribe” have the following meanings: If the field “Enable” is checked, the MQTT rule is enabled; In the field “Topic”...
-
Page 24: Update Device
User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 24 of 31 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 25 User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 25 of 31 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67930 device. Warning: If Fig. 7 appears when you try to do the Update try these points before seeking assistance: Check if the serial COM port selected is the correct one;...
-
Page 26: Template String: Ethernet And Mqtt Payload
User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 26 of 31 Industrial Electronic Devices TEMPLATE STRING: ETHERNET AND MQTT PAYLOAD In the section “Set MQTT Access” of the SW67930, it is possible to define the expected format of the Ethernet message received/transmitted. - Page 27 User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 27 of 31 Industrial Electronic Devices At this point, it is possible to define the MQTT template as preferred. An example can be using JSON format: “ID”: “$ID$”, “REG”: “$REG$”, “DESC”: “$DESC$”, “DATA”: “$DATA$”...
-
Page 28: Mechanical Dimensions
User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 28 of 31 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 8: Mechanical dimensions scheme for HD67930-B2 ADFweb.com S.r.l. -
Page 29: Ordering Informations
Enclosure Type B: Modulbox 4M, 35mm DIN Rail mounting Device Family HD67930: Ethernet / MQTT - Converter Order Code: HD67930-B2 Ethernet / MQTT – Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 30: Disclaimer
User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 30 of 31 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 31: Warranties And Technical Support
User Manual Ethernet / MQTT Document code: MN67930_ENG Revision 1.000 Page 31 of 31 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
