Industrial Electronic Devices
User Manual
Revision 1.000
English

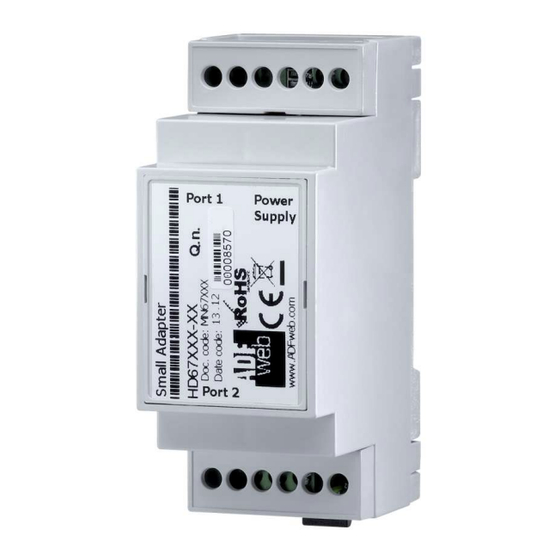

Modbus TCP Master / MQTT - Converter
(Order Code: HD67935-B2)
For Website information:
www.adfweb.com?Product=HD67935-B2
For Price information:
www.adfweb.com?Price=HD67935-B2
Benefits and Main Features:
Very easy to configure
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual Modbus TCP Master / MQTT
Document code: MN67935_ENG
For others MQTT products, see also the following links:
Converter MQTT to
www.adfweb.com?Product=HD67930
www.adfweb.com?Product=HD67931
www.adfweb.com?Product=HD67932
www.adfweb.com?Product=HD67933
www.adfweb.com?Product=HD67934
www.adfweb.com?Product=HD67936
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
Revision 1.000
Page 1 of 36
(Ethernet)
(M-Bus)
(Serial)
(Modbus Master)
(Modbus Slave)
(Modbus TCP Slave)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD67935-B2 and is the answer not in the manual?

Questions and answers

Related Manuals for ADF Web HD67935-B2

Summary of Contents for ADF Web HD67935-B2

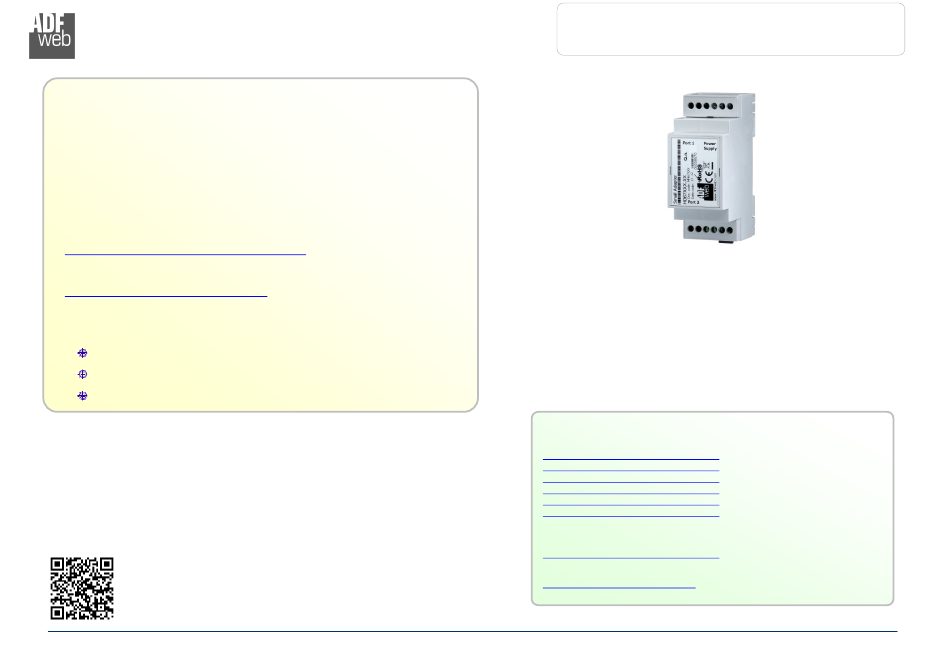

  • Page 1 Revision 1.000 Page 1 of 36 Industrial Electronic Devices User Manual Revision 1.000 English Modbus TCP Master / MQTT - Converter (Order Code: HD67935-B2) For Website information: www.adfweb.com?Product=HD67935-B2 For Price information: www.adfweb.com?Price=HD67935-B2 Benefits and Main Features: Very easy to configure Power Supply 18…35V DC and 8…24 V AC...
