BAC S ( BAC MS/TP):
NET LAVE FOR NET
This section is used to define the main parameters of BACnet MS/TP line. The
means of the fields are:
In the field "Baudrate" the data rate of the BACnet line is defined;
In the field "Parity" the parity of the line is defined;
In the field "BACnet Device
defined;
In the field "MAC Address" the MAC of BACnet node (from 0 to 254) is
defined;
The field "Max Master" specifies the highest allowable address for master
nodes. The value shall be less than or equal to 127;
The field "Max Info Frames" specifies the maximum number of information
frames the node may send before it must pass the token;
In the field "Device
converter is defined;
In the field "Network" the BACnet MS/TP network number is defined;
If the field "BACnet description up to 32
description of the BACnet objects can be up to 32 chars.
ADFweb.com S.r.l.
Name" the name to give to the BACnet node is
Instance" the of the BACnet MS/TP side of the
chars" is checked, the
User Manual BACnet Slave / MQTT
Document code: MN67938_ENG Revision 1.000

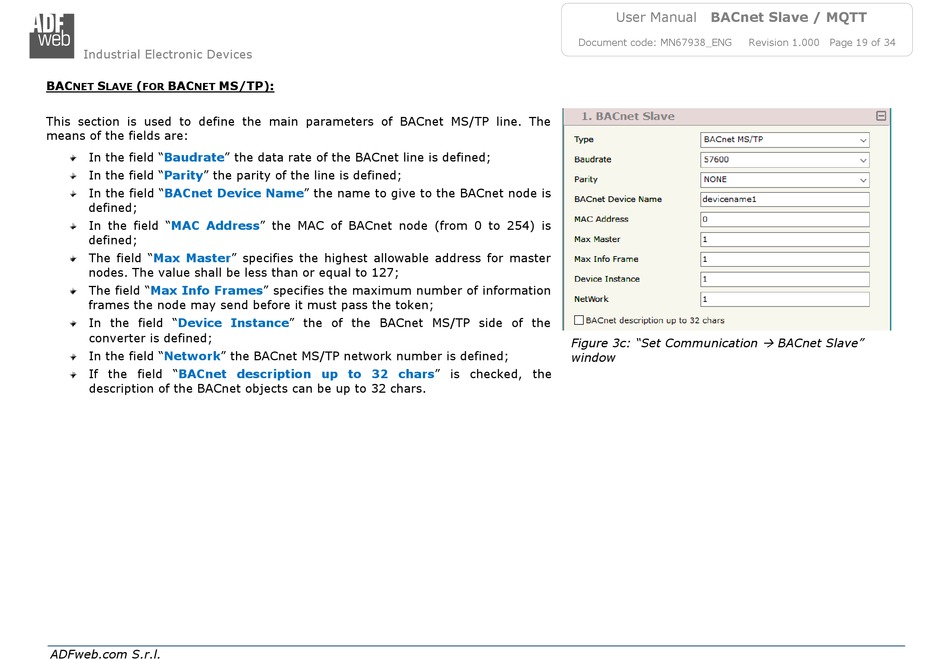

Figure 3c: "Set Communication
window
Page 19 of 34
 BACnet Slave"
