LEDS:

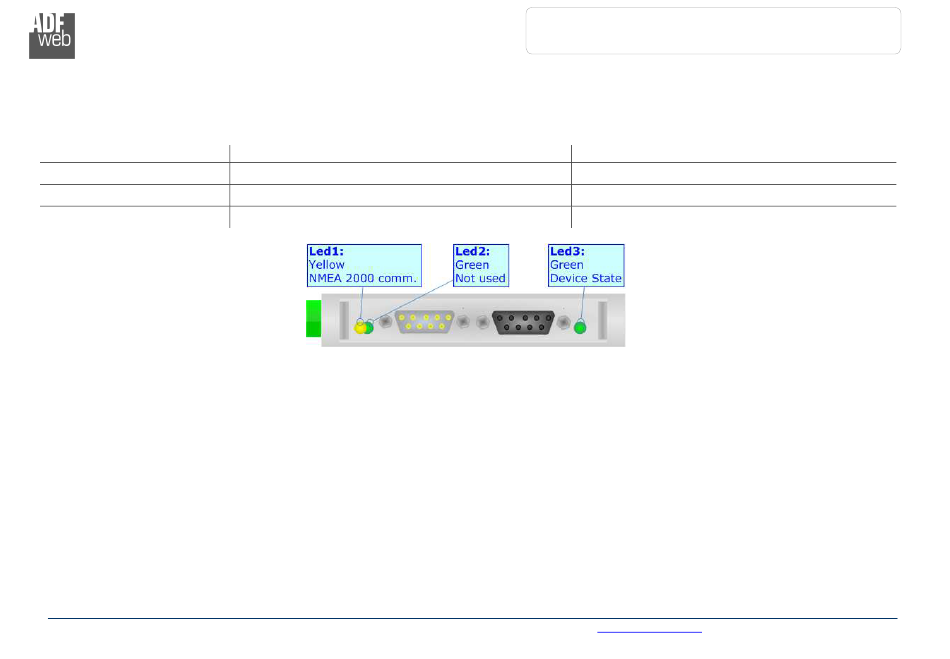

The device has got three LEDs that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: NMEA 2000 comm.
2: Not used
3: Device state
ADFweb.com Srl – IT31010 – Mareno – Treviso
Normal Mode
Blinks when a NMEA 2000 frame is received
OFF
Blinks slowly (~1Hz)
User Manual NMEA 2000 / PROFIBUS Slave
Document code: MN67252_ENG
Revision 1.010
Boot Mode
OFF
OFF
Blinks quickly
