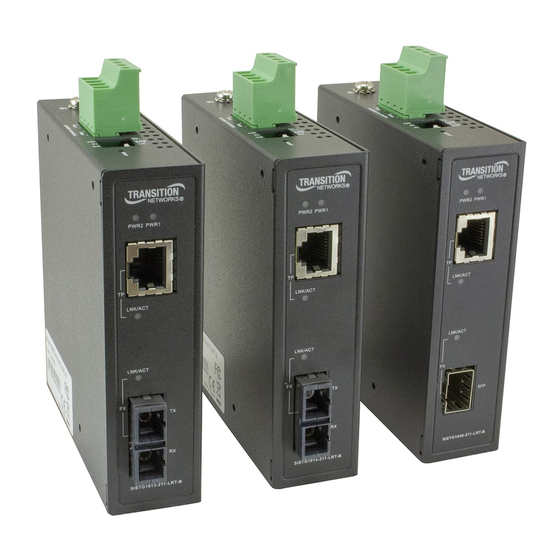

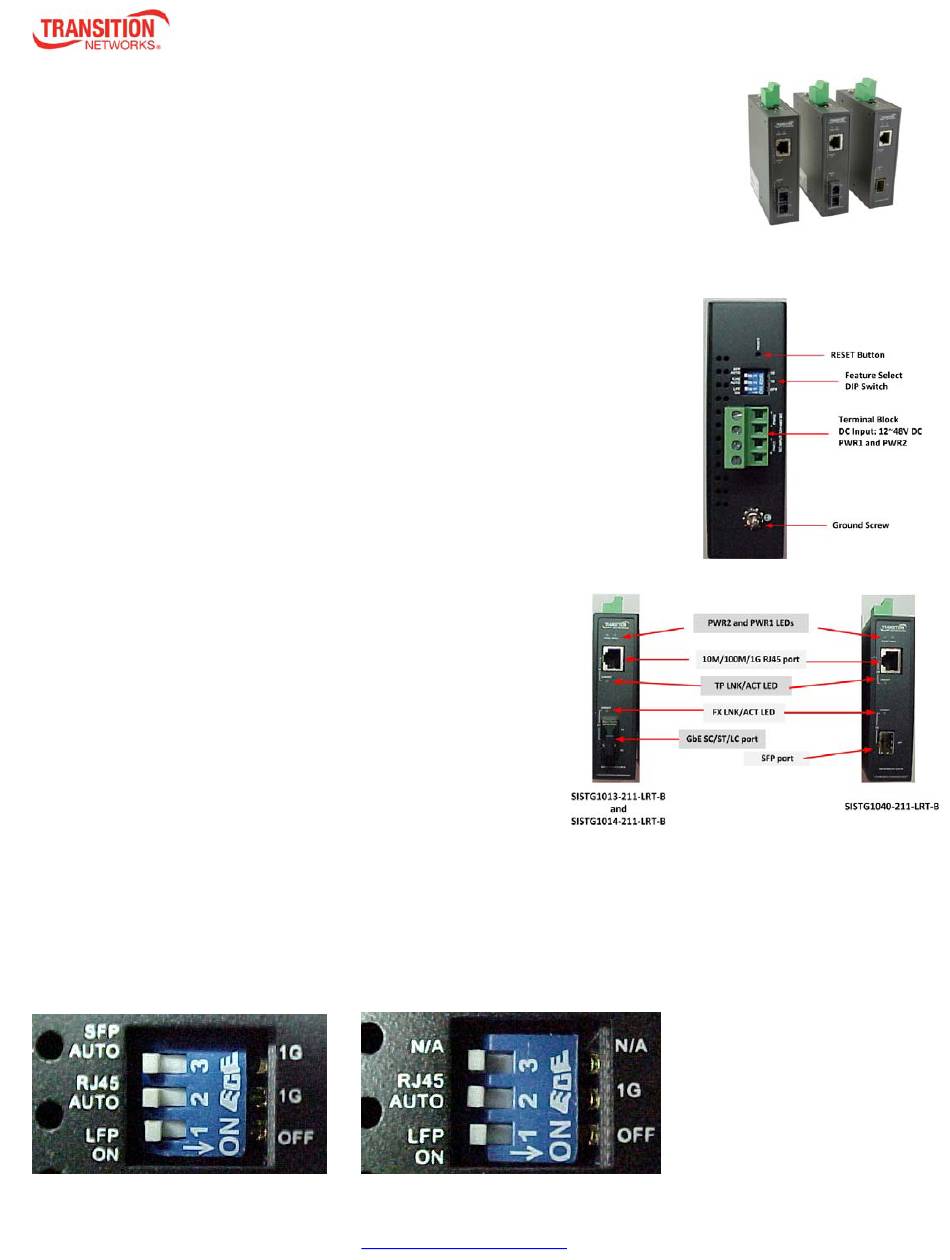

SISTG10xx‐211‐LRT‐B series Hardened Unmanaged Gigabit
Ethernet Media Converter
Quick Start Guide
The Transition Networks SISTG10xx‐211‐LRT‐B Series is a new generation of unmanaged
hardened Gigabit Ethernet media converter. The converter can provide multimode or
single mode fiber connections with fixed SC connectors for extending the Ethernet service distance over fiber.
The converter also has a SFP version that provides the ultimate flexibility to choose the appropriate SFP module
to match your communication and distance needs.
See the Install Guide for important Cautions and Warnings, Features, Specifications,
Optional Accessories, Dimensions, Installation, Package Contents, Unpacking, Front
/Back/Top Panels, RESET button, DIP Switch, Mounting, Installing SFPs, Connecting
to Network/Devices, Grounding, Connecting Power, LEDs, Troubleshooting,
Regulatory and Safety Information, and Warranty.
Installation: The procedural overview below assumes that you have already
selected an appropriate install location and have acquired the appropriate
equipment needed (e.g., a power cord, Cat5 or better cable for the TP (RJ‐45) port,
SC SM, or SC MM fiber cable for FX (SFP) port).
1. Unpack and verify package contents.
2. Review the front, back and top panel information.
3. Read the DIP switch and RESET button descriptions.
4. Perform DIN Rail Mounting.
5. Install SFP Modules.
6. Connect to Network / Devices.
7. Connect Fiber cables.
8. Connect Copper cables and verify Copper cable configuration.
9. Perform Media Converter grounding.
10. Connect power wires to the Media Converter's Terminal Block.
11. Provide and attach a Power Cord to the Media Converter.
12. Connect the Power Cord to the power supply.
13. Connect the power supply to a live AC outlet.
RESET Button: The top panel RESET button can be used to reset the Media Converter, clear the MAC address
table, and flash the TP and SFP LNK/ACT LEDs momentarily. Press the RESET button for 2 ~ 7 seconds to reset the
Converter; the green PWR LED lights.
DIP Switch for Feature Selection: The SISTG10xx‐211‐LRT‐B has a 3‐position DIP switch on the top panel used
to configure the Media Converter for use in a particular network setting. See the Install Guide for details.
SISTG1040‐211‐LRT‐B
33758 Rev. A
SISTG1013‐211‐LRT‐B and SISTG1014‐211‐LRT‐B
https://www.transition.com
SISTG10xx‐211‐LRT‐B Quick Start Guide
Page 1 of 2
