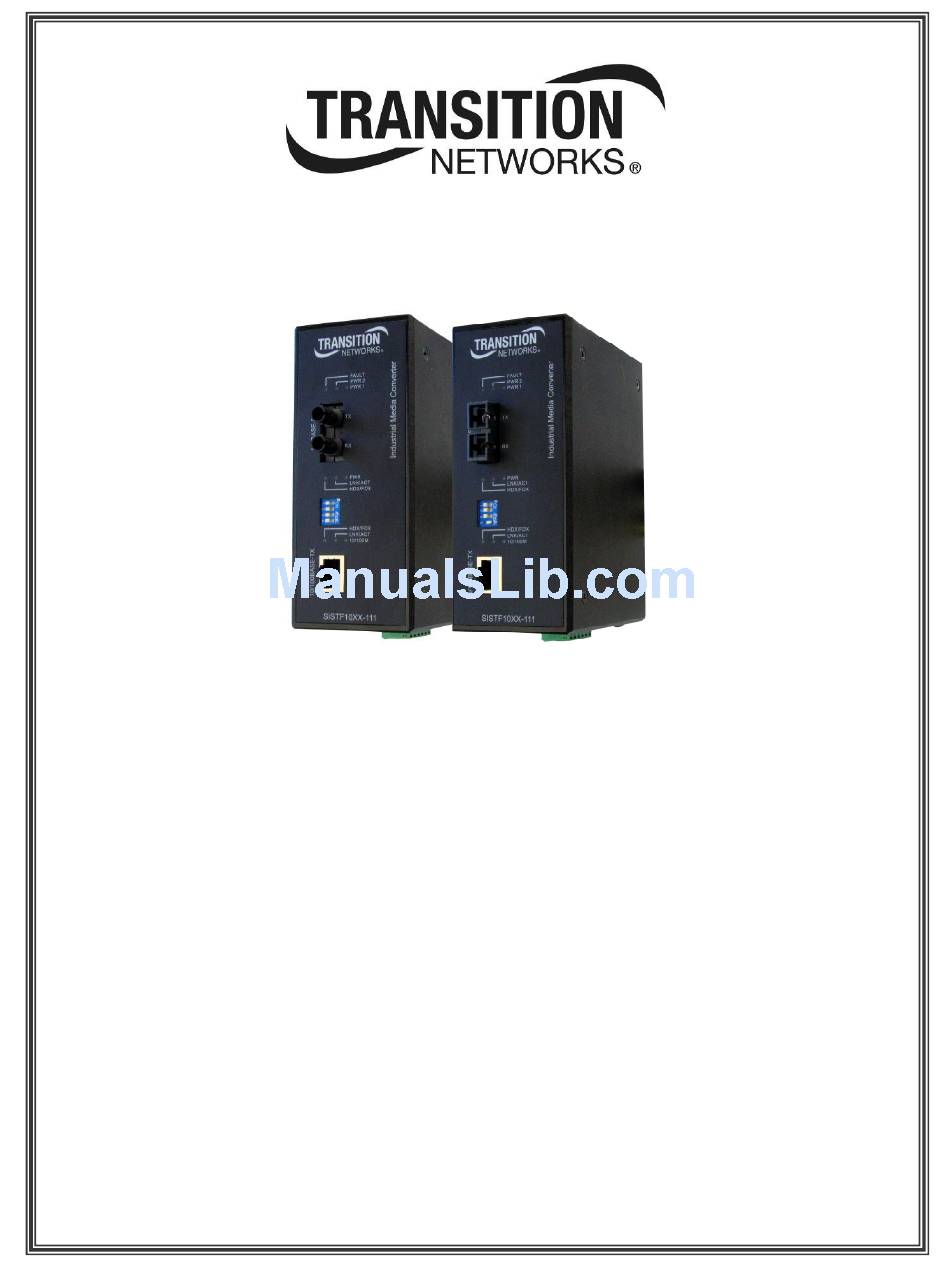

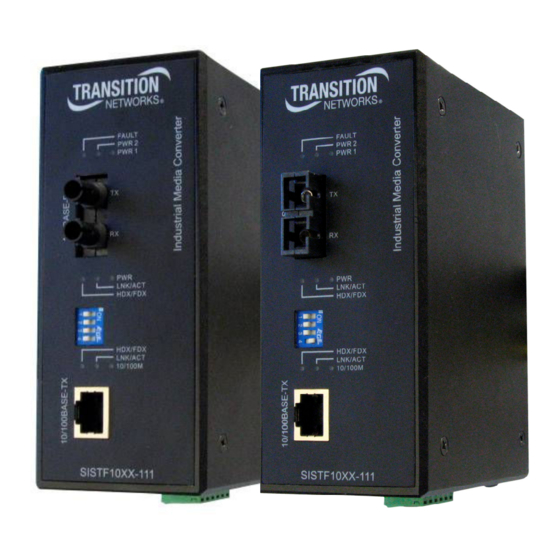

- Page 1 SISTF10xx-111-LR(T) 10/100Base-TX to 100Base-FX Industrial Media Converter Installation Manual Rev. A 29-June-2007...
-
Page 3: Table Of Contents
Transition Networks Table of Contents Trademark, copyright, and product classification information ................. iii Trademark..............................iii Copyright restrictions ..........................iii FCC warning .............................. iii CE Mark ..............................iii About this product and manual ........................iv Industrial Media Converter ......................... iv Term/usage..............................iv About this manual ............................ - Page 4 Transition Networks SISTF10xx-111-LR(T) Industrial Media Converter Section III: ................................22 Advanced Features ..............................22 Introduction ...............................22 In this section ............................22 Advanced Features............................23 AutoCross ..............................23 Auto-Negotiation (IEEE 802.3u)........................23 Pause (IEEE 802.3xy)..........................23 Link Pass Through ............................24 Section IV:................................25 Cable Specifications..............................25 Introduction ...............................25 In this section ............................25 Copper (RJ-45) cable specifications ......................26...
-
Page 5: Trademark, Copyright, And Product Classification Information
All trademarks and registered trademarks are the property of their respective owners. Copyright © 2007 Transition Networks: All rights reserved. No part of this work may be reproduced or restrictions used in any form or by any means—graphic, electronic, or mechanical—without written permission from Transition Networks. -
Page 6: About This Product And Manual
Media Converter general description, ordering information, package contents and physical features/description Installation and operation of the Media Converter Advanced features Cable Specifications Troubleshooting Contacting Transition Networks, product warranty and product compliance information Appendix A Presents product specifications, notices, and warnings 24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600... -
Page 7: Cautions And Warnings
SISTF10xx-111-LR(T) Industrial Media Converter Transition Networks Cautions and warnings Cautions and Make sure that you read and understand all content identified by these two symbols: warnings Cautions and warnings appear here and throughout this manual where appropriate. Failure to read and understand the information identified by the “caution” and “warning” symbols could result in poor equipment performance, damage to equipment, or injury to persons. - Page 8 Transition Networks SISTF10xx-111-LR(T) Industrial Media Converter Cautions and warnings, continued Warnings Warnings indicate the possibility of injury to persons. WARNING Be sure to disconnect power before installing and wiring the Media Converter. Failure to observe this warning could result in an electrical shock.
-
Page 9: Section I
Section I SISTF10xx-111 Industrial Media Converter In this section These are the topics: Topic See Page General description SISTF10xx-1011 Industrial Media Converter model numbers Package Contents Physical Description... -
Page 10: General Description
Transition Networks SISTF10xx-111-LR(T) Industrial Media Converter General description Overview The SISTF10xx-111 Industrial Media Converter can help eliminate EMI or RFI issues and help to overcome distance limitations with copper-based cabling by providing a fiber interface to transport data from copper-based industrial networking and communication devices over fiber optic cabling. -
Page 11: Sistf10Xx-111 Industrial Media Converter Part Numbers
SISTF10xx-111-LR(T) Industrial Media Converter Transition Networks SISTF10xx-111 Industrial Media Converter part numbers Standard models The part numbers shown in Tables 1 and 2 perform as described in this manual. Table 1: Industrial Media Converter Part Numbers Standard Operating Temperature (0° C to +60° C) -
Page 12: Package Contents
For external AC/DC power supply (sold separately) Compare the package contents of your industrial media converter with the standard checklist above. If any item is damaged or missing, please contact Transition Networks Technical Support. 24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600... -
Page 13: Physical Description
SISTF10xx-111-LR(T) Industrial Media Converter Transition Networks Physical description Width: 2.1” [54mm] Physical dimensions Height: 5.3” [135mm] Depth: 4.1” [105mm] Front panel The front panel of the Media Converter is shown in Figure 1 with corresponding descriptions listed below: Fault LED... -
Page 14: Bottom Panel
Transition Networks SISTF10xx-111-LR(T) Industrial Media Converter Physical description, continued Bottom panel The bottom view of the Media Converter is shown in Figure 2 with corresponding descriptions listed below: Grounding Screw 6-position terminal block Primary power input terminals (2) Secondary power input terminals (2) -
Page 15: Section Ii
Section II Installation In this section These are the topics: Topic See Page DIN rail mounting Wall mounting Grounding the Media Converter Connecting power to the Media Converter Connecting an alarm fixture Connecting fiber cable Connecting copper cable DIP switches Light Emitting Diodes (LEDs) -
Page 16: Din Rail Mounting
Transition Networks SISTF10xx-111-LR(T) Industrial Media Converter DIN rail mounting DIN rail clip The Media Converter includes an aluminum DIN Rail Clip attached to the rear panel. Verify the clip is attached and oriented as pictured in Figure 4 below. DIN Rail Clip... -
Page 17: Din Rail Mounting
SISTF10xx-111-LR(T) Industrial Media Converter Transition Networks DIN rail mounting, continued DIN rail mounting To mount the Media Converter to the DIN rail, see Figure 5 and do the following: Step Action Align and then position DIN-Rail-clip spring to the top of the DIN rail as shown in Figure 5, step (a). -
Page 18: Wall Mounting
Transition Networks SISTF10xx-111-LR(T) Industrial Media Converter Wall mounting Wall mount The Media Converter includes a wall mount bracket and screws in the contents of the shipping bracket package. The wall mount bracket can be attached to the rear panel of the Media Converter to enable mounting to a vertical surface such as the wall of an enclosure. -
Page 19: Grounding The Media Converter
SISTF10xx-111-LR(T) Industrial Media Converter Transition Networks Grounding the Media Converter CAUTION Be sure to disconnect the Media Converter from the DC power source before installing and wiring the device. Wiring The following wiring considerations are recommended: considerations • Signal lines must not be directly connector to outdoor wiring. -
Page 20: Connecting Power To The Media Converter
Transition Networks SISTF10xx-111-LR(T) Industrial Media Converter Connecting power to the Media Converter Redundant The Media Converter has dual (redundant) power inputs capable of auto-sensing the input power inputs voltage, while providing over current protection and reverse polarity protection. The dual power inputs can be connected simultaneously to live DC power sources. See Figure 8. -
Page 21: Terminal-Block Wiring
SISTF10xx-111-LR(T) Industrial Media Converter Transition Networks Connecting power to the Media Converter, continued Note: The terminal block can accept 12 – 24 AWG wire for power and alarm relay inputs. Terminal-block To wire the 6-position terminal block for redundant power, do the following:... - Page 22 Transition Networks SISTF10xx-111-LR(T) Industrial Media Converter Connecting power to the Media Converter, continued Terminal-block wiring (continued) Step Action Insert the terminal block plug into the Media Converter’s terminal block, as shown in Figure 10. Figure 10: Wired Terminal Block Plug Inserted Into Media Converter Make sure that the DC power source is stable and clean.
-
Page 23: Barrel Connector Interface Cable
Note: An external AC/DC power supply is not included with the Media Converter. Transition Networks offers an accessory power supply that can be purchased separately, if required. Please see optional accessories in the general information section of this manual for ordering information. -
Page 24: Connecting An Alarm Fixture
Transition Networks SISTF10xx-111-LR(T) Industrial Media Converter Connecting an alarm fixture Alarm relay The Media Converter has dry relay contacts for connecting an external alarm fixture. Located on the green terminal block on the bottom panel, the relay has “normally closed” contacts that can be wired to form a circuit for triggering an external alarm when a fault occurs (light or audible alarm). -
Page 25: Fault Indications
SISTF10xx-111-LR(T) Industrial Media Converter Transition Networks Connecting an alarm fixture, continued Fault indications Wire the relay contacts to any warning light or audible alarm in the control room as shown in Figure 14. When a fault occurs, the relay contacts close, sending a signal to activate an external alarm or turn ON a light, indicating a fault. -
Page 26: Connecting Fiber Cables
Transition Networks SISTF10xx-111-LR(T) Industrial Media Converter Connecting fiber cables Fiber cable When connecting fiber cables to the 100BASE-FX port on the Media Converter, make sure the installation correct type is used: ST or SC. To install the fiber cables, do the following:... -
Page 27: Connecting Copper Cables
SISTF10xx-111-LR(T) Industrial Media Converter Transition Networks Connecting copper cables Copper cable To connect the copper cable to the Media Converter and other equipment, do the following: installation Step Action Locate or build 10Base-T or 100Base-TX copper cables with male, RJ-45 connectors installed at both ends. -
Page 28: Dip Switches
Transition Networks SISTF10xx-111-LR(T) Industrial Media Converter DIP Switches DIP switch The Media Converter features four DIP switches on the front panel used to configure the position Media Converter for use in a particular network setting. Figure 18 shows the DIP switches descriptions and a chart that explains each setting. -
Page 29: Light Emitting Diodes (Leds)
SISTF10xx-111-LR(T) Industrial Media Converter Transition Networks Light Emitting Diodes (LEDs) LEDs The Media Converter has LED indicators located on its front panel. The LEDs present at-a- glance network status, and provide real-time connectivity information. Figure 19 shows the LEDs and a chart that explains the function of each. -
Page 30: Section Iii
Section III: Advanced Features Introduction This section provides an explanation of the advanced features on the Media Converter. In this section These are the topics: Topic See Page AutoCross Auto-Negotiation Pause Link Pass Through... -
Page 31: Advanced Features
SISTF10xx-111-LR(T) Industrial Media Converter Transition Networks Advanced Features AutoCross AutoCross automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration allowing either straight-through (MDI) or crossover (MDI-X) cables to be used – see figure 20. No user intervention is required. -
Page 32: Link Pass Through
Transition Networks SISTF10xx-111-LR(T) Industrial Media Converter Advanced Features, continued Link Pass Link Pass Through is a troubleshooting feature that allows the media converter to monitor both Through the fiber and copper RX ports for loss of signal. In the event of a loss of RX signal on one media port, the converter will automatically disable the TX signal of the other media port, thus "passing through"... -
Page 33: Cable Specifications
SISTF10xx-111-LR(T) Industrial Media Converter Transition Networks Section IV: Cable Specifications Introduction This section provides copper and fiber cable specifications. In this section These are the topics: Topic See Page UTP cable specifications Fiber cable and optic specifications 24-Hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600... -
Page 34: Copper (Rj-45) Cable Specifications
Transition Networks SISTF10xx-111-LR(T) Industrial Media Converter Copper (RJ-45) cable specifications Copper cabling Shielded twisted-pair (STP) or unshielded twisted-pair (UTP) cabling may be used and can be configured as either Straight-through or crossover – see figure 22. Figure 22: Straight-Through and Crossover Cables... -
Page 35: Fiber Cable And Optic Specifications
SISTF10xx-111-LR(T) Industrial Media Converter Transition Networks Fiber cable and optic specifications Fiber cable Cable physical characteristics must meet or exceed IEEE 802.3™ specifications. characteristics Parameter Specification Bit Error Rate: <10 Single mode fiber: 9 µm Multimode fiber: 62.5/125 µm Multimode fiber: 100/140, 85/140, 50/125 µm... -
Page 36: Section V
Transition Networks SISTF10xx-111-LR(T) Industrial Media Converter Section V: Troubleshooting Introduction This section provides basic troubleshooting information for the Media Converter via a problem and corrective action table. The problems are stated in the problem column and the action(s) to take for the problem is stated in the corrective action column. If the corrective measures listed do not correct the problem, contact our 24-Hour Technical Support department at 1-800- 260-1312, International: 00-1-952-941-7600. -
Page 37: Troubleshooting Problem And Corrective Action Table
SISTF10xx-111-LR(T) Industrial Media Converter Transition Networks Troubleshooting problem and corrective action table Problem Potential Cause Potential Solution Media Converter does not • Is the wired terminal-block plug fully • Wire and insert the terminal-block plug power up inserted into the Media Converter? into the Media Converter’s terminal... -
Page 38: Section Vi
Section VI: Contact Us, Warranty, & Compliance Information Introduction This section explains how to contact Transition Networks via Phone, fax, email, and direct mail. It also explains: • What the warranty covers • Who to contact to return product • How and where to return the product •... -
Page 39: Contact Us
1-800-260-1312 International: 00-1-952-941-7600 Live Web chat Chat live via the Web with a Transition Networks Technical Support Specialist. Log onto www.transition.com and click the Transition Now link. Web-based Transition Networks provides 8-10 seminars per month via live web-based training. training Log onto www.transition.com and click the Learning Center link. -
Page 40: Warranty
SISTF10xx-111-LR(T) Industrial Media Converter Warranty Limited lifetime Effective for products shipped May 1, 1999 and after, every Transition Networks’ labeled warranty product will be free from defects in material and workmanship for its lifetime. This warranty covers the original user only and is not transferable. -
Page 41: Customer Pays Non-Compliant Return Costs
All warranty claims are subject to the restrictions and conventions set forth by this products document. Transition Networks reserves the right to charge for all testing and shipping incurred, if after testing, a return is classified as “No Problem Found.” This warranty is This warranty is your only remedy. -
Page 42: Compliance Information
Transition Networks SISTF10xx-111-LR(T) Industrial Media Converter Compliance information Compliances CISPR22/EN5022 Class A + EN55024; EN60950 Class A; FCC Class A; CE Mark UL Listed; The following part numbers are UL Listed: SISTF1011-111-LR, SISTF1011-111-LRT, C-UL Listed SISTF1013-111-LR, SISTF1013-111-LRT, SISTF1014-111-LR, SISTF1014-111-LRT. (Canada) - Page 43 In accordance with European Union Directive 2002/96/EC of the European Parliament and of Regulations, the Council of 27 January 2003, Transition Networks will accept post usage returns (continued) of this product for proper disposal. The contact information for this activity can be found in the ‘Contact Us’...
-
Page 44: Appendix A
Appendix A: Technical Specifications SISTF10xx-111-LR(T) specifications, notices, and warnings Parameter Description Standards IEEE 802.3 , 802.3u , 802.3x Regulatory Compliance for CISPR/EN55022 Class A; FCC Class A; Emissions CE Mark; Safety Compliance UL 60950; cUL; CSA C22.2 no 60950 EMI Compliance EN61000-4-2;... -
Page 45: Notices
SISTF10xx-111-LR(T) Industrial Media Converter Transition Networks SISTF10xx-111-LR(T) specifications, notices, and warnings, continued Notices • The information in this user’s guide is subject to change. For the most up-to-date information on the SISTF10xx-111-LR(T) Industrial Media Converter, please refer to the user’s guide on-line at: www.transition.com.
