SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, CANopen
and EtherNet/IP.
By Pressing the "Set Communication" button from the main window for SW67646
(Fig. 2) the window "Set Communication" appears (Fig. 3).
The means of the fields for the "CANopen" section are:
In the field "Device ID" the ID of the CANopen side is defined;
In the field "Baud Rate" the data rate of the CANopen line is defined;
In the field "Set Operational State at
defined. I.e. If it is checked the board starts in Operational State, else it starts
in Pre-Operational;
In the field "Network Start at
defined. I.e. If it is checked the board sends a command to set the Operational
State of all the devices present in the network, after the time defined in the
"Delay" field;
In the field "Delay (s)" the delay before sending the "Start" command for the
CANopen is defined;
In the field "SDO Client TimeOut (1/10
device attends for the answer from the Slave interrogated is defined;
The means of the fields for "EtherNet/IP Master" are:
In the fields "IP ADDRESS" the IP address for EtherNet/IP side of the converter
is defined;
In the fields "SUBNET
converter is defined;
In the fields "GATEWAY" the default gateway of the net is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for
going out of the net;
In the field "Port" the port used for EtherNet/IP communication is defined. The
port has a fixed value of 44818.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Start-Up" the state of the CANopen is
Start-Up" the state of the CANopen network is
ms)" the maximum time that the
Mask" the SubNet Mask for EtherNet/IP side of the
User Manual EtherNet/IP Master / CANopen
Document code: MN67646_ENG Revision 1.000

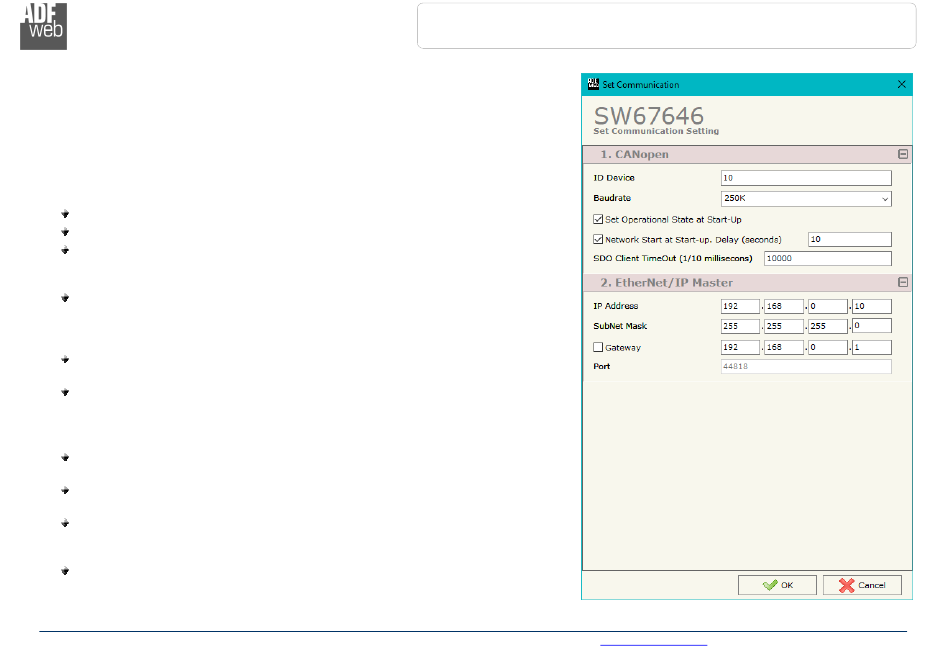

Figure 3: "Set Communication" window
