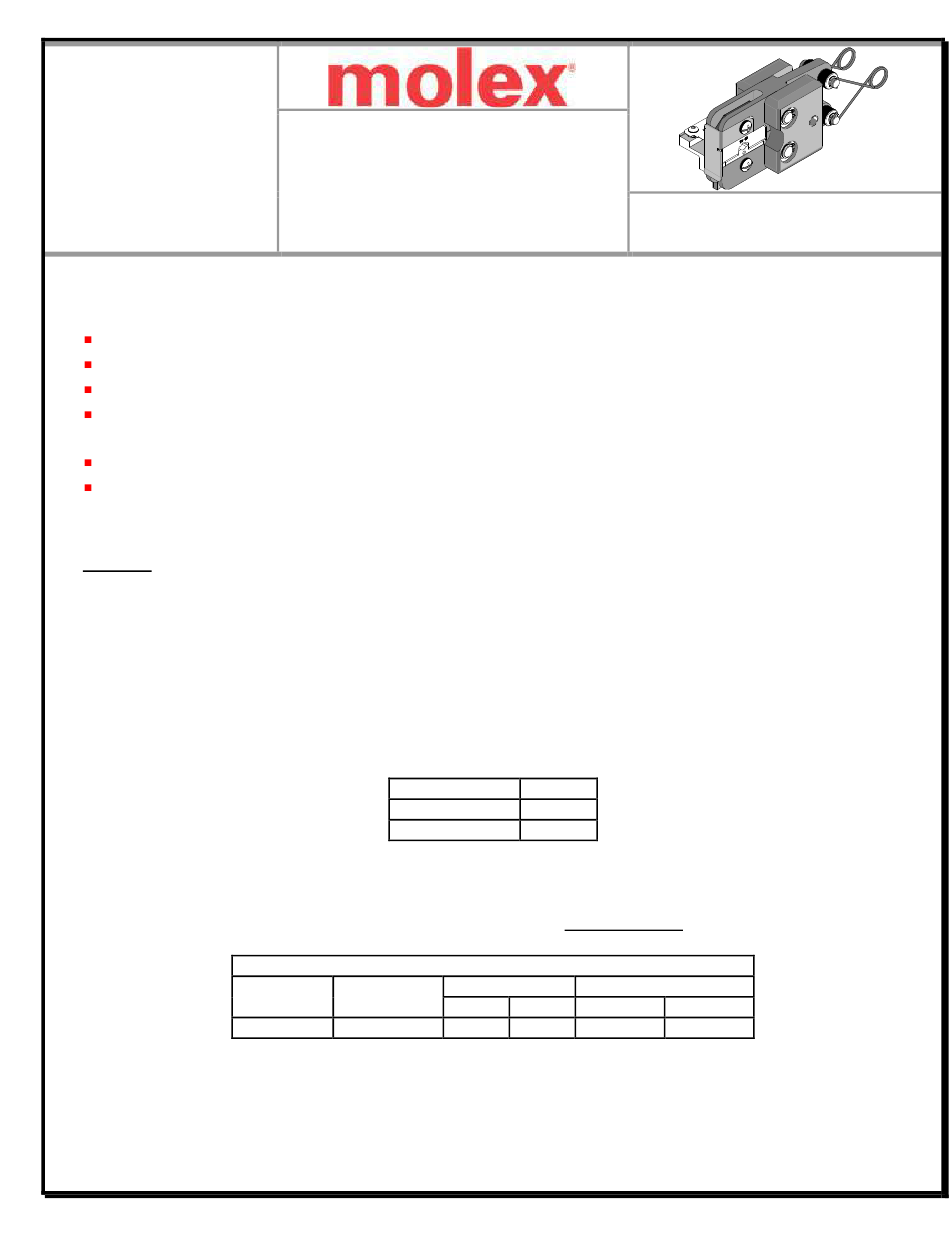

AT-5763 Air Crimp Head Tool
Air Powered
Crimp Tool Head
Avikrimp
FEATURES
Quick change tool head for the 19279-0001 (AT-200)
Tooling kit is interchangeable with other kits in the 64001 and 64003 Series
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Insulation crimp adjustment allows a precise insulation crimp. To meet or exceed the requirements of UL,
CSA and Military Class II
Pneumatic powered crimp tools help reduce fatigue and discomfort from repetitive manual crimping.
Single color-coded crimp pocket eliminates the possibility of using the wrong pocket
SCOPE
Products: AviKrimp™ Female Fully Insulated Quick Disconnect 10–12 AWG (Expanded Flare and Oval Barrel).
This tool head is intended for use in the 19279-0001 (AT-200) either hand held or with optional bench adapter
19078-0307 (ATBA) and foot switch.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections.
The following charts show the UL specifications for various wire sizes. The tensile strength is shown in pounds
and indicates the minimum acceptable force to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run.
We will be adding to this list and an up to date copy is available on www.molex.com.
Doc. No: ATS-640053000
Revision: C
Revision Date: 03-10-05
Application Tooling
Specification Sheet
Wire Size (AWG)
*UL – 310 – Quick Disconnects
Wire Size: 10 – 12 AWG
Terminal
Terminal No.
Eng No. (REF)
19002-0044
C-5265
Release Date: 05-29-03
*UL - 310
12
70
10
80
5.00 – 3.30 mm²
Wire Strip Length
Insulation Diameter Max.
In.
mm
In.
.310
7.94
.250
UNCONTROLLED COPY
Order No. 64005-3000
Engineering No. AT 5763
mm
6.22
Page 1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex Avikrimp 64005-3000
Summary of Contents for molex Avikrimp 64005-3000
- Page 1 The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding to this list and an up to date copy is available on www.molex.com. Wire Size: 10 – 12 AWG 5.00 –...
-
Page 2: Operation
See Figure 2 and 3. Cycle the tool. 4. Remove the crimp and inspect for proper crimp location, and check for insulation closure. Molex offers a Crimp Inspection Handbook for closed barrel industrial product. See our website or contact your sales engineer. -
Page 3: Maintenance
Should such a defect occur, we would repair or exchange the tool free of charge. This repair or exchange will not be applicable to altered, misused or damaged tools. CAUTION: Molex crimp specifications are valid only when used with Molex terminals, applicators and tooling. UNCONTROLLED COPY Doc. -
Page 4: Parts List
AT-5763 Air Crimp Head Tool PARTS LIST Item Order No Description Quantity 64005-3000 Crimp Tool Head Figure 5 64005-0000 Basic Air Tool Head 64001-3075 Locator Assembly 64001-3070 Tooling Kit Tooling Kit Only 64001-3002 Conductor Punch 64001-3001 Conductor Anvil 64001-3004 Insulation Punch 64001-3003 Insulation Anvil 4 mm Dia. - Page 5 AT-5763 Air Crimp Head Tool Parts List (Continued) Item Order No. Description Quantity 64005-0000 Basic Air Tool Head Figure 6 64005-0103 Nose Guard 64000-0077 Repair Kit (Springs, Rods Pivots ,Rings, and Washers) M4 by 12 Long Freedrive Pan Head Screw M4 by 30 Long Freedrive Pan Head Screw 3/16”...
-
Page 6: Certificate Of Calibration
Technician _______________________- Date of Calibration __________________- Calibration should be done every 5,000 cycles or 3 months. Tools should be lubricated during this operation. Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc. No: ATS-640053000 Release Date: 05-29-03 Page 6 of 6...
