ETC Installation Guide
DMX Emergency Bypass Controller
Installation
Install the DEBC enclosure on a suitable surface, within 1,640 ft (500 m) of the Emergency Bypass
Detection Kit (EBDK) or other suitable power sensing or triggering device providing a contact closure
output.
Required Installation Tools and Supplies
• Small 3 mm or 1/8" flat-blade screwdriver (jeweler's screwdriver) for wire terminations
• #2 Phillips screwdriver for the front cover
• Four mounting bolts or screws suitable to hold up to 6 lb (2.7 kg)
Install the DEBC
1:
Remove the front cover from the DMX Emergency Bypass Controller, revealing access to the
mounting keyholes.
a: Remove the six screws securing the front cover to the unit.
b: Lift the cover from the unit.

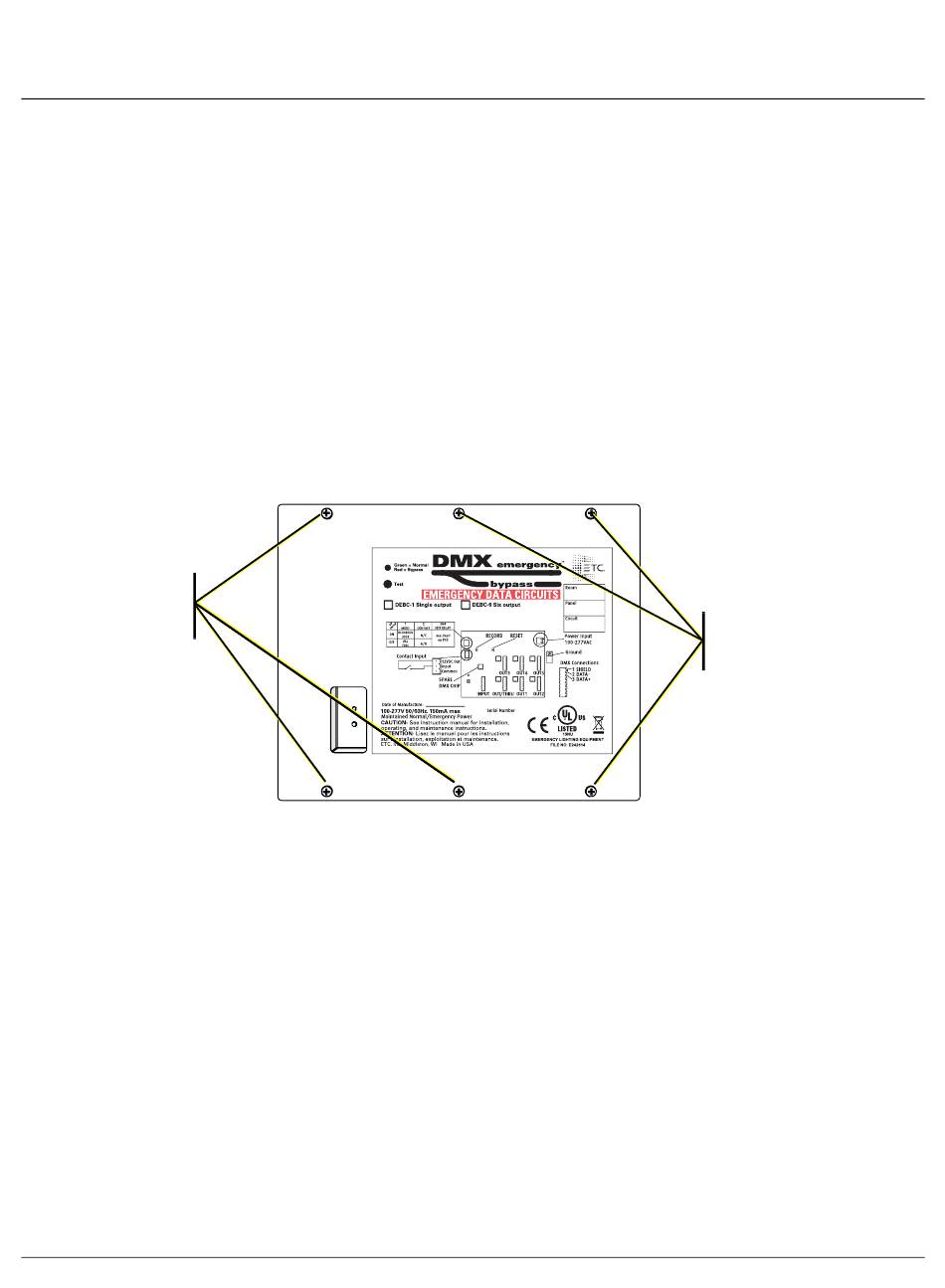

Remove these
screws to remove
cover
2:
Use the measurements provided in the image that follows for mounting bolt locations.
3:
Secure the DEBC enclosure to the wall using four bolts (mounting hardware not provided).
DMX Emergency Bypass Controller Installation Guide
Page 2 of 8
Remove these
screws to remove
cover
