ETC Installation Guide
DMX Emergency Bypass Controller
4:
To further secure the box to the wall, use a single screw (also not provided) in either bottom slot (see
image below).
Note:

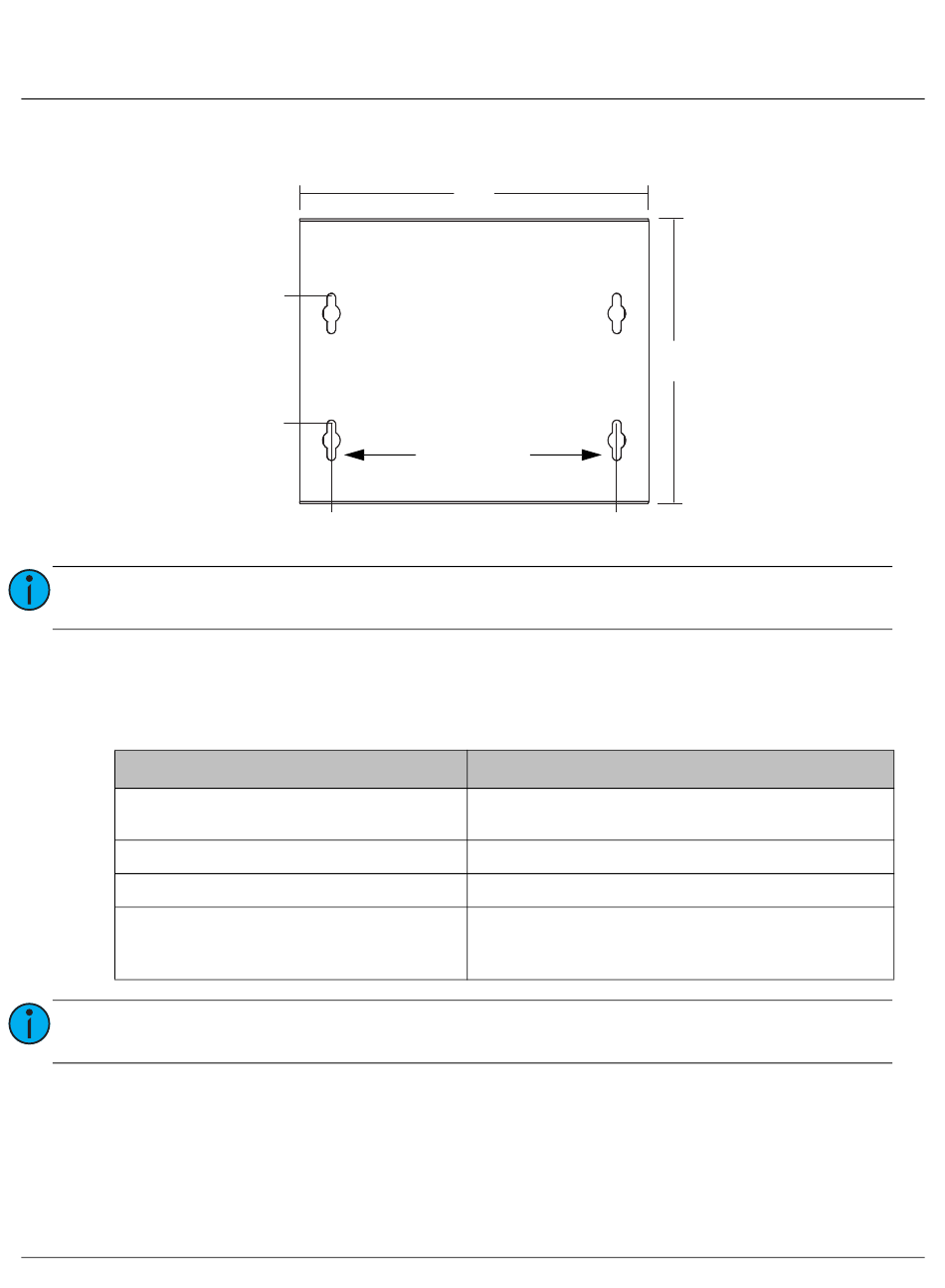

Route Conduit and Wiring

Four conduit knockouts are provided on each side of the enclosure for installation convenience. Emergency
or normal/emergency AC power will utilize the two topmost knockouts while the remaining knockouts
near the bottom of each side will accommodate the Class 2 wiring (DMX and panic input wire).
AC input (emergency or normal/emergency)
2 wires (hot, neutral)
Ground
Panic input
DMX in/out
Note:
DMX Emergency Bypass Controller Installation Guide
6.5 in
(165 mm)
2.5 in
(63 mm)
1 in
(25.4 mm)
Install the DEBC enclosure on a suitable surface, within 1,640 ft (500 m) of the
Emergency Bypass Detection Kit (EBDK) or suitable triggering device.
Termination type
Power and control wires must be run in separate conduits. Follow all local code
restrictions.
11 in
(280 mm)
Secure with a
screw in either
bottom slot
10 in
(254 mm)
24–10AWG / .2mm
Ground lug accepts 14–2AWG / 2.5mm
30–12AWG / .05mm
Belden 9729 (or approved equivalent for DMX, such as
CAT5 or CAT5E with insulation displacement
connectors)
Page 3 of 8
9 in
(229 mm)
Specified wire type
2
2
–4mm
2
–35mm
2
2
–2.5mm
2
