Chapter 2: Installing the Chassis
Install Drives Into the QXS-456 Drive Chassis

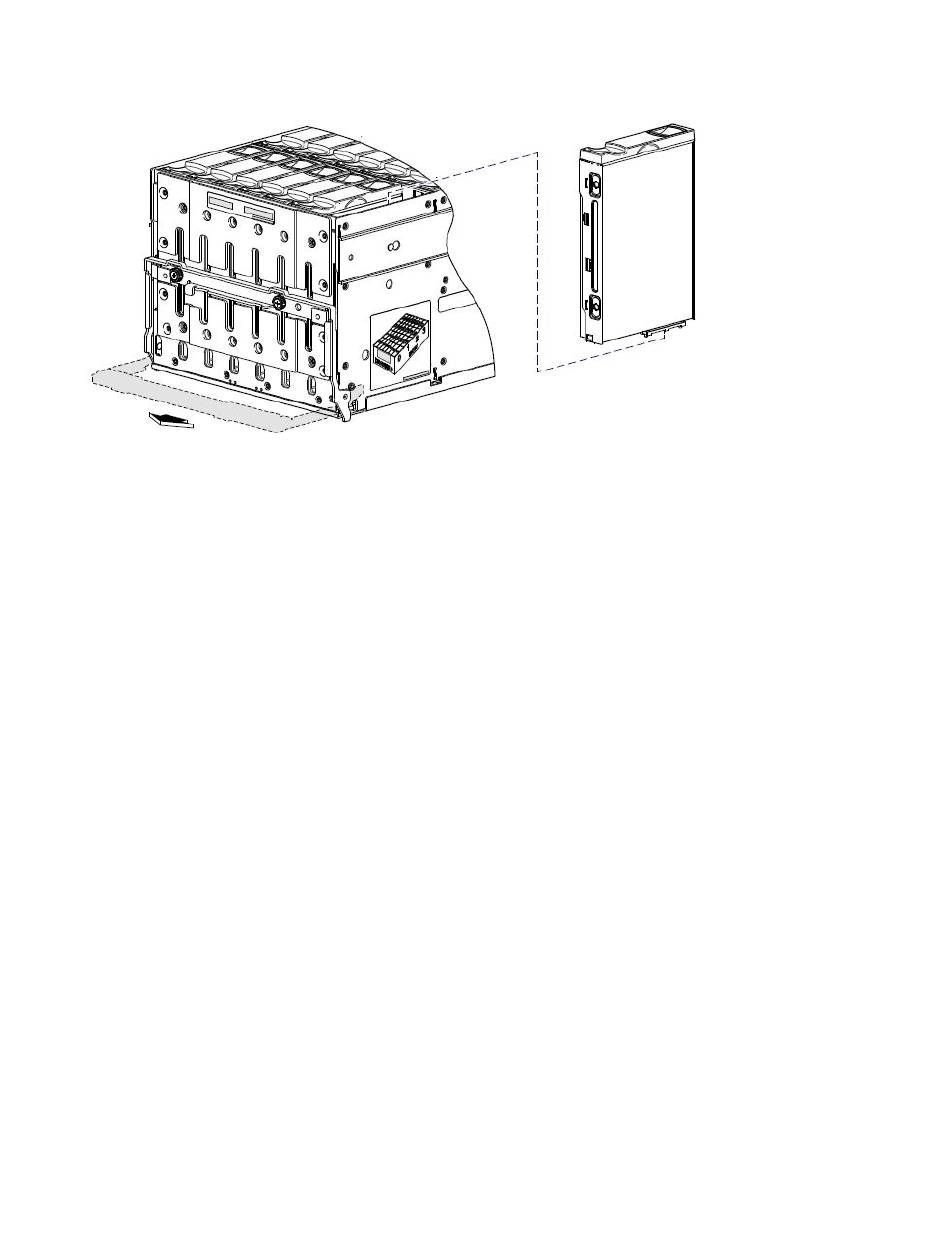

Figure 73: Installing a drive
2. Verify that you have inserted the drive module into the slot as far as it will go, to ensure that the module if
firmly seated in the drawer PCBA
Remove a Drive From a Drawer
1. Using your index finger, slide the release latch, located in the right pocket on the face of the drive
module, to the left to disengage the drive module.
Moving the latch to the left will provide a clicking sound and cause the spring to move its position inside
the drawer cage, partially ejecting the drive from its installed position within the drive slot.
2. Wait 20 seconds for the internal drive to stop spinning (HDDs).
Do not remove the drive from the drawer until the internal drive has stopped spinning.
