Quantum QX Series Setup Manual page 105

Chapter 2: Installing the Chassis
Power On/Power Off

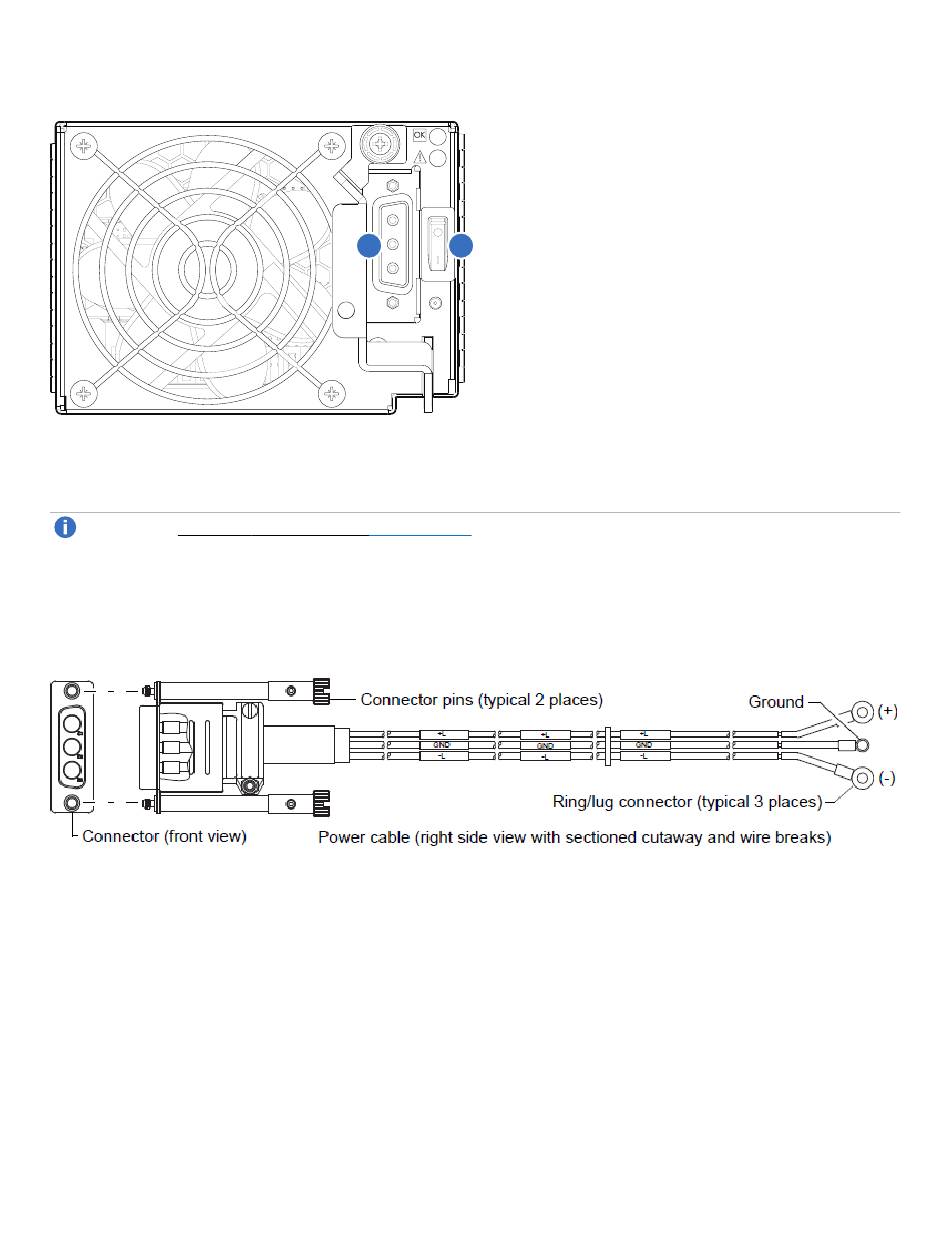

Figure 87: DC power supply with power switch
1. DC power switch
2. DC power cable connect
Note: See Electrical Requirements
DC Model
Figure 88: DC power cable featuring D-shell and lug connectors
1. Locate and use the provided DC power cables.
2. Verify that the chassis power switches are in the Off position.
3. Connect a DC power cable to each DC power supply using the D-shell connector. Use the UP> arrow
on the connector shell to ensure proper positioning (see adjacent left side view of D-shell connector).
QX and QXS Setup Guide
2 1
on page 195 for additional information.
90
