Chapter 6: LED Descriptions
LEDs for 12-, 24-, 48-Drive Systems

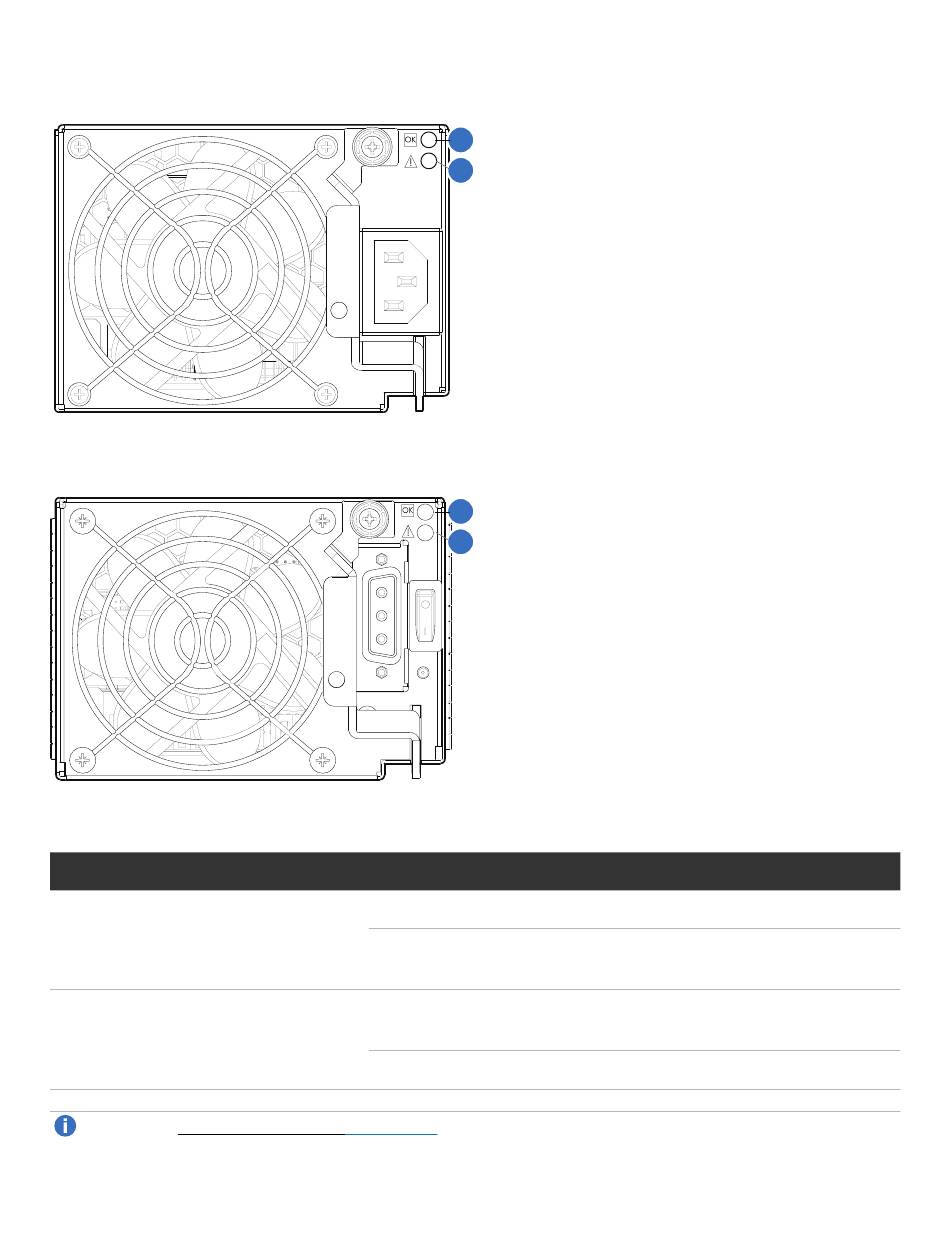

Figure 122: Power supply for AC model
Figure 123: Power supply for DC model
Table 51: Power supply LEDs
LED No./Description
1 — Input Source Power
Good
2 — Voltage/Fan
Fault/Service Required
Note: See Power On/Power Off
QX and QXS Setup Guide
1
2
1
2
Color State Definition
Green On Power is on and input voltage is normal.
Off Power is off, or input voltage is below the minimum
threshold.
Amber On Output voltage is out of range, or a fan is operating below the
minimum required r/min.
Off Output voltage is normal.
on page 85 for information on power-cycling chassis.
