Chapter 6: LED Descriptions
LEDs for 12-, 24-, 48-Drive Systems
Controller I/O Module for 12-, 24-, 48-Drive RAID Chassis
LEDs (Rear View)
Figure 120 below provides a representative example of the controller I/O module. It lists the location and
description of the controller I/O module LEDs.
Note: QXS-3, QXS-4, and QXS-6 Series systems offer a SAS and a CNC controller I/O module (FC
and iSCSI). The QXS-1200, QXS-2400, and QXS-5600 use only a FC controller I/O module.

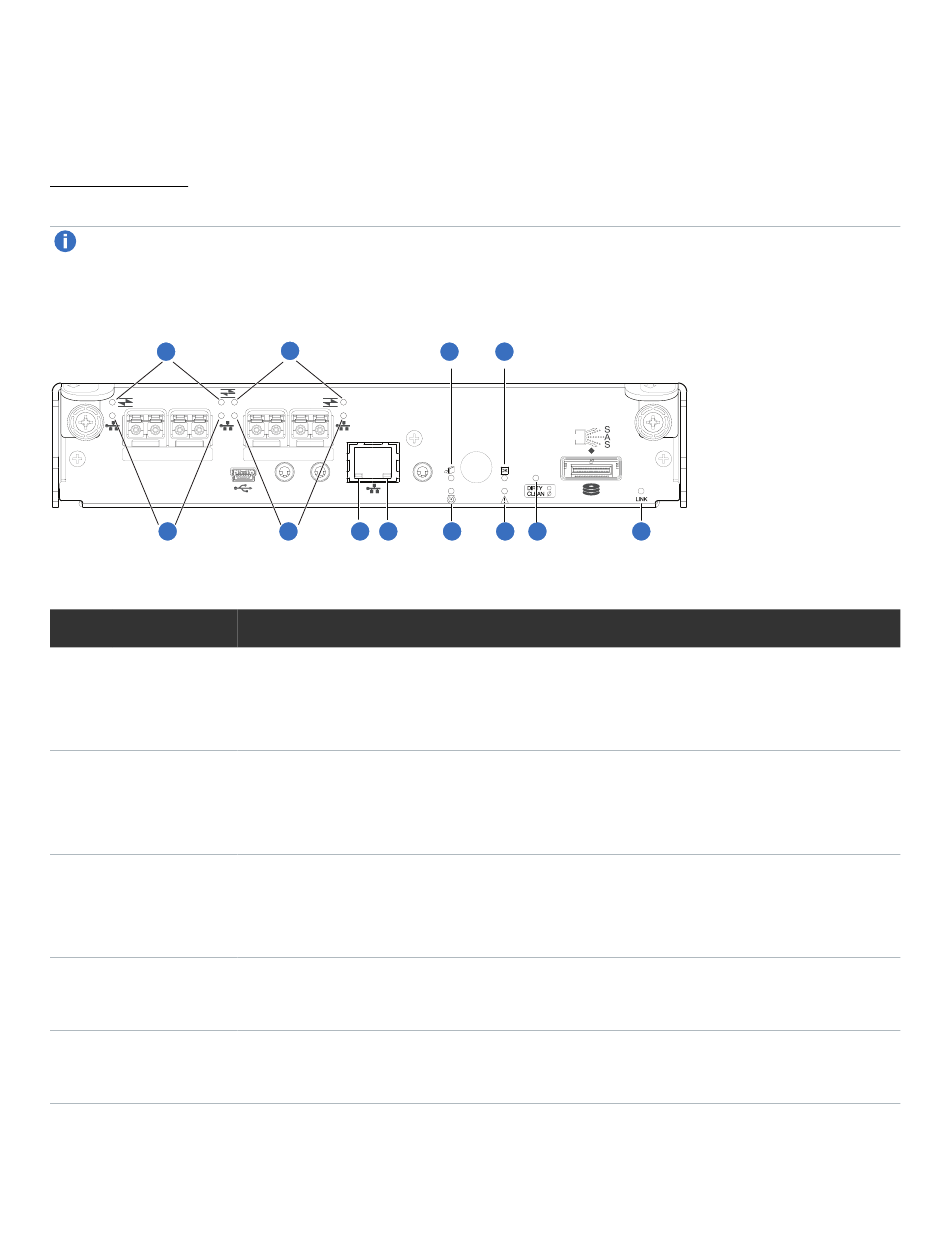

Figure 120: LEDs: controller I/O module (FC and 10GbE SFPs)
1
PORT 0 PORT 1
2
Table 49: Controller I/O module LEDs
LED Description
1 Host 4/8/16
1
Gb FC
Link Status/
Link Activity
2 Host 10GbE
2,3
iSCSI
Link Status/
Link Activity
3 Network Port
Link
Active
4
Status
4 Network Port
4
Link Speed
5 OK to
Remove
QX and QXS Setup Guide
1
PORT 2 PORT 3
SERVICE−2 ACT LINK SERVICE−1
CLI
CLI
2 3 4
Definition
Off — No link detected.
Green — The port is connected and the link is up.
Blinking green — The link has I/O or replication activity.
Off — No link detected.
Green — The port is connected and the link is up.
Blinking green — The link has I/O or replication activity.
Off — The Ethernet link is not established, or the link is down.
Green — The Ethernet link is up (applies to all negotiated link speeds).
Off — Link is up at 10/100base-T negotiated speeds.
Amber — Link is up and negotiated at 1000base-T.
Off — The controller I/O module is not prepared for removal.
Blue — The controller I/O module is prepared for removal.
5 7
6Gb/s
CACHE
6 8 9 10
