Chapter 6: LED Descriptions
LEDs for 12-, 24-, 48-Drive Systems

LEDs for 48-Drive RAID Chassis (2U48)

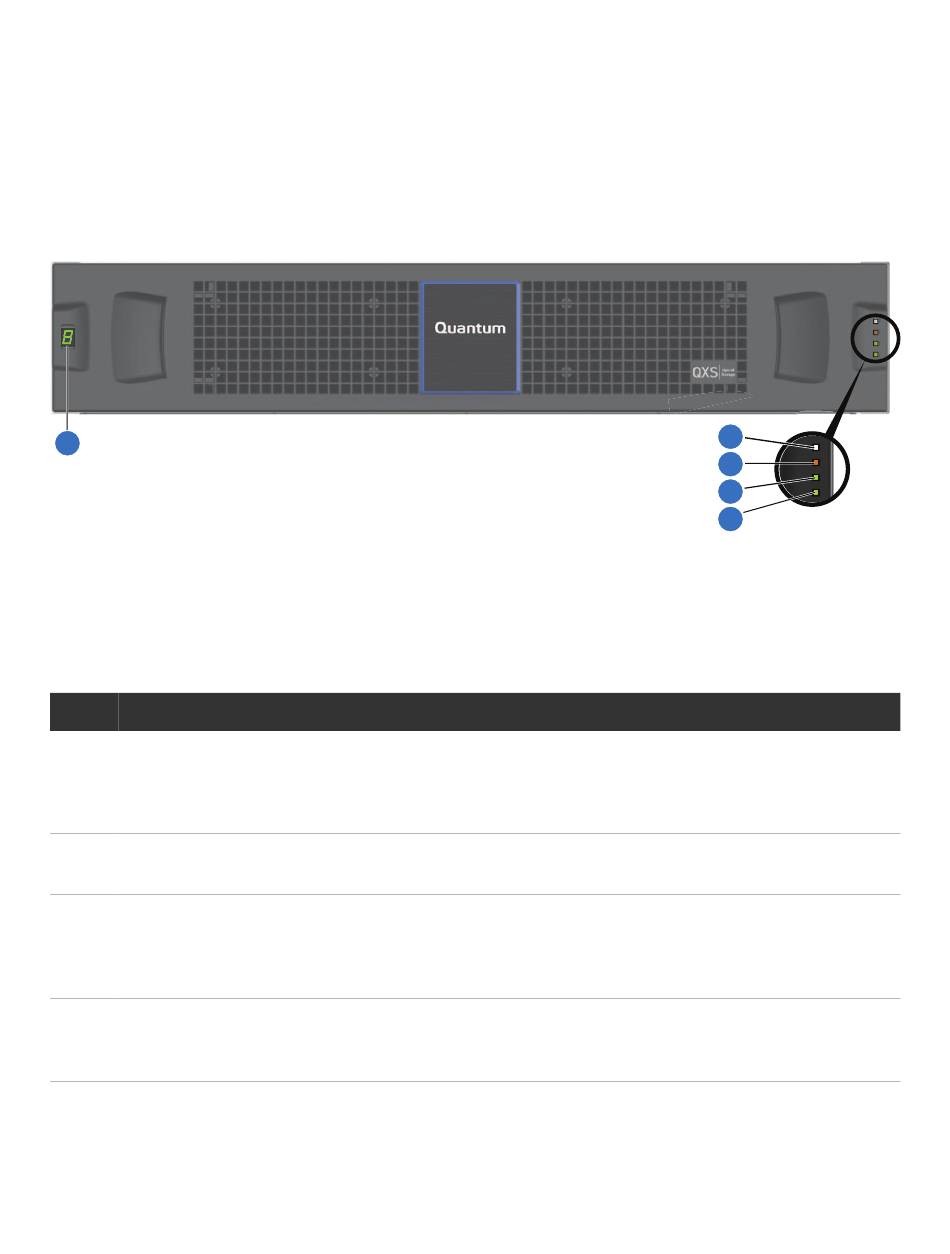

Figure 115: 2U Drive Chassis (Bezel Installed)
1
1. Chassis ID LED
2. Chassis S tatus LED: Unit Locator
3. Chassis S tatus LED: Fault/Service Required
Table 44: LEDs for 12-Drive RAID Chassis front panel (bezel installed)
LED Description
1 Chassis ID
LED
2 Unit Locator
3 Fault/Service
Required
4 FRU OK
QX and QXS Setup Guide
Definition
Green — On
Enables you to correlate the chassis with logical views presented by management
software. Sequential chassis ID numbering of RAID Chassis begins with the integer 0.
The chassis ID for an attached expansion chassis is nonzero.
White blink — Chassis is identified
Off — Normal operation
Amber — On
Chassis-level fault condition exists. The event has been acknowledged but the
problem needs attention.
Off — No fault condition exists.
Green — On
The chassis is powered on with at least one power supply operating normally.
Off — Both power supplies are off; the system is powered off.
4. Chassis S tatus LED: FRU OK
5. Chassis S tatus LED: Temperature Fault
2 5
6
3
7
4
8
5
