Chapter 1: Components
QXS-656 System
Host CNC Ports Configured with SFPs (1 Gb RJ-45/iSCSI)
The following figure shows a Controller I/O Module with CNC ports configured with SFPs supporting 1 Gb
RJ-45.

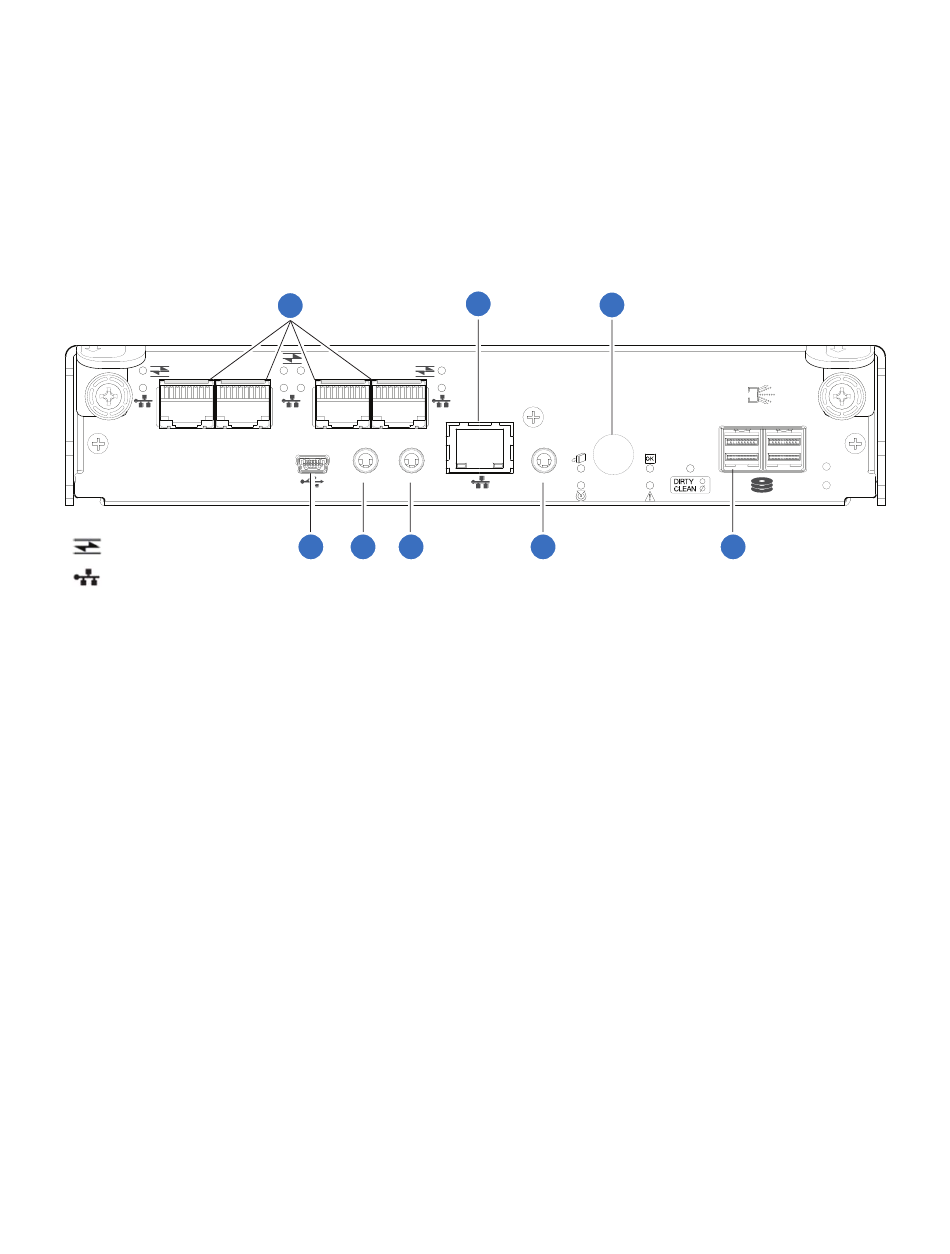

Figure 53: CNC Ports Configured with SFPs (RJ-45)
PORT 0 PORT 1
= FC LEDs
= 1Gb iSCSI LEDs (all CNC ports use 1 Gb RJ-45 SFPs in this figure)
1. CNC Ports (used for host connection or replication)
2. CLI Port (USB - Type B)
3. Service Port 2 (used by service personnel only)
4. Reserved for Future Use
Host Ports Configured with 12 Gbit/s HD mini-SAS
The following figure shows an I/O Controller Module with host interface ports configured with 12 Gbit/s HD
mini-SAS (SFF-8644) connectors.
QX and QXS Setup Guide
1
1
MGMT
PORT 2 PORT 3
ACT
S ERVICE−2 CLI
CLI
2 3 4
2 3 4
5
7
5 7
LINK
S ERVICE−1
6
6
5. Network Port
6. Service Port 1 (used by service personnel only)
7. Disabled Button (used by engineering only)
(Sticker shown covering the opening)
8. Mini-SAS Expansion Port
S
6Gb/s
A
S
EXP 0 EXP 1
CACHE
LINK 1
LINK 0
8
8
