Chapter 7: Environmental Requirements and Specifications
Physical Requirements

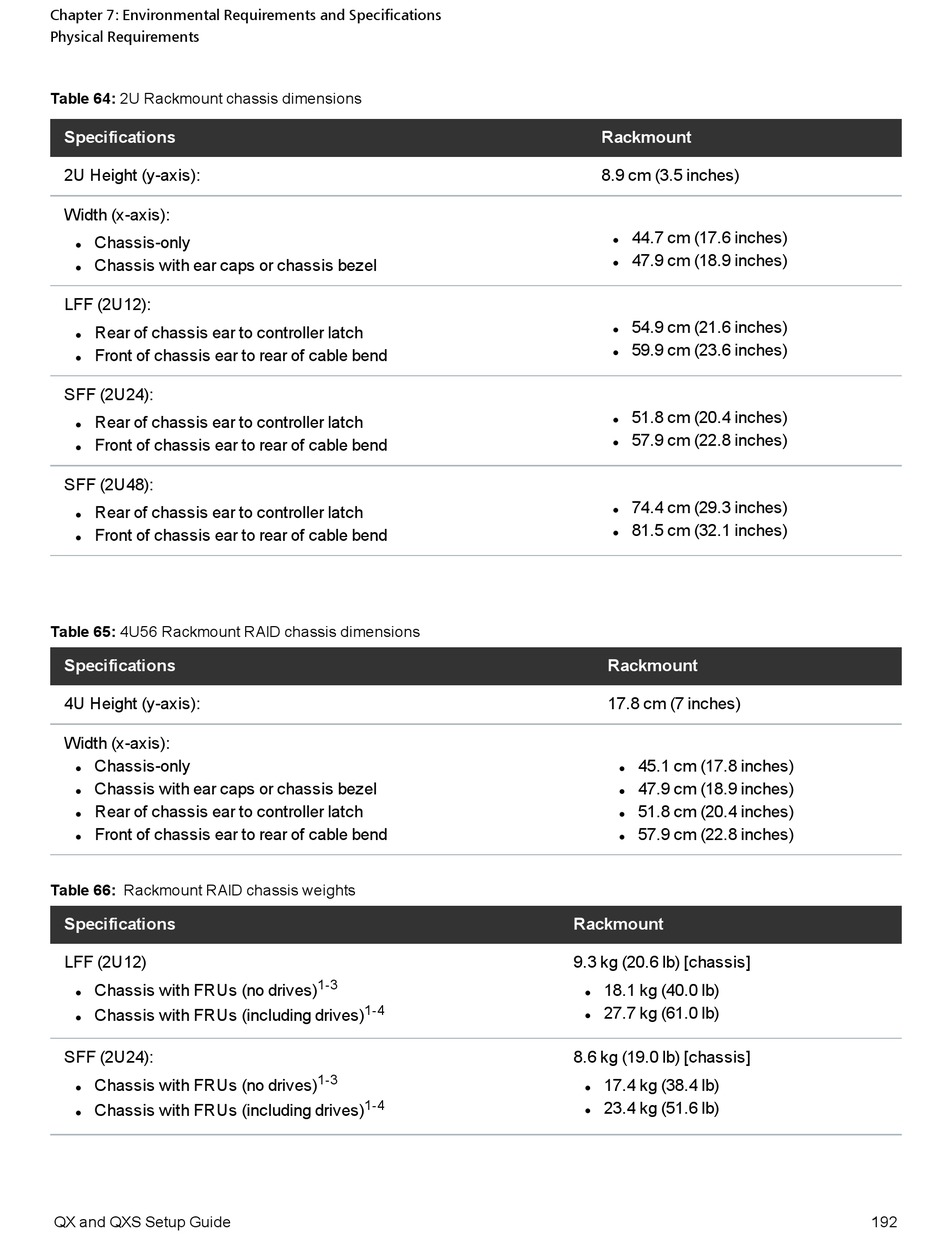

Table 64: 2U Rackmount chassis dimensions
Specifications
2U Height (y-axis):
Width (x-axis):
Chassis-only
l
Chassis with ear caps or chassis bezel
l
LFF (2U12):
Rear of chassis ear to controller latch
l
Front of chassis ear to rear of cable bend
l
SFF (2U24):
Rear of chassis ear to controller latch
l
Front of chassis ear to rear of cable bend
l
SFF (2U48):
Rear of chassis ear to controller latch
l
Front of chassis ear to rear of cable bend
l
Table 65: 4U56 Rackmount RAID chassis dimensions
Specifications
4U Height (y-axis):
Width (x-axis):
Chassis-only
l
Chassis with ear caps or chassis bezel
l
Rear of chassis ear to controller latch
l
Front of chassis ear to rear of cable bend
l
Table 66: Rackmount RAID chassis weights
Specifications
LFF (2U12)
Chassis with FRUs (no drives)
l
Chassis with FRUs (including drives)
l
SFF (2U24):
Chassis with FRUs (no drives)
l
Chassis with FRUs (including drives)
l
QX and QXS Setup Guide
1-3
1-4
1-3
1-4
Rackmount
8.9 cm (3.5 inches)
44.7 cm (17.6 inches)
l
47.9 cm (18.9 inches)
l
54.9 cm (21.6 inches)
l
59.9 cm (23.6 inches)
l
51.8 cm (20.4 inches)
l
57.9 cm (22.8 inches)
l
74.4 cm (29.3 inches)
l
81.5 cm (32.1 inches)
l
Rackmount
17.8 cm (7 inches)
45.1 cm (17.8 inches)
l
47.9 cm (18.9 inches)
l
51.8 cm (20.4 inches)
l
57.9 cm (22.8 inches)
l
Rackmount
9.3 kg (20.6 lb) [chassis]
18.1 kg (40.0 lb)
l
27.7 kg (61.0 lb)
l
8.6 kg (19.0 lb) [chassis]
17.4 kg (38.4 lb)
l
23.4 kg (51.6 lb)
l
