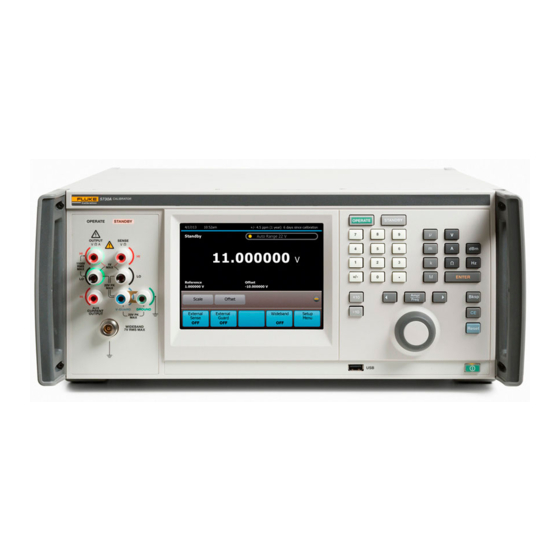

Page 1 5730A Multifunction Calibrator Operators Manual August 2013 Rev. 2, 7/23 © 2013-2023 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies.
Page 2 Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is available only if product is purchased through a Fluke authorized sales outlet or Buyer has paid the applicable international price.
Page 3 OPERATOR SAFETY SUMMARY WARNING HIGH VOLTAGE is used in the operation of this equipment LETHAL VOLTAGE may be present on the terminals, observe all safety precautions! To prevent electrical shock hazard, the operator should not electrically contact the output HI or sense HI terminals or circuits connected to these terminals. During operation, lethal voltages of up to 1100 V ac or dc may be present on these terminals.
Page 5: Table Of Contents
Introduction ......................1-1 Safety Information ..................... 1-3 How to Contact Fluke Calibration ..............1-3 Instruction Manuals ................... 1-3 Wideband AC Voltage Module (Option 5730A/03 or 5730A/05)..... 1-4 Auxiliary Amplifiers ..................1-4 5725A Amplifier ................... 1-5 52120A Amplifier ..................1-5 Support Equipment and Services ............... 1-5 732B Direct Voltage Reference Standard .............
Page 6 DC Current Output ..................4-19 AC Current Output ..................4-21 Resistance Output ..................4-23 Wideband AC Voltage Output (Option 5730A/03 or 5730A/05) ....4-26 Variable Phase Output ..................4-28 Phase Locking to an External Signal ..............4-29 Auxiliary Amplifier Use ..................4-30 5725A Amplifier Output ................
Page 7 Contents (continued) Error Reference ..................... 4-54 Instrument Settings .................... 4-56 Set the Internal Clock/Calendar ..............4-56 Language ....................... 4-57 Display Brightness ..................4-57 About This Instrument ................... 4-57 Remote Interface Setup ..............5-1 GPIB (IEEE-488) Interface................5-2 Use the IEEE-488 Port for Remote Control ..........5-2 IEEE-488 Bus Restrictions ................
Page 8 When to Adjust Calibrator Accuracy ............7-10 Calibration Procedure ..................7-10 Range Adjustment ....................7-13 Calibrate the Wideband AC Module (Option 5730A/03 or 5730A/05) ..... 7-17 Wideband Flatness Calibration Procedure ............7-18 Calibration Check ....................7-20 Develop a Performance History ................. 7-21 Save Calibration Reports ...................
Page 9 Contents (continued) 1 Ω and 10 kΩ Resistance Standards (742A-1 and 742A-10k) ..... 8-3 5725A Amplifier ................... 8-4 52120A Amplifier ..................8-4 Appendices A Fault Codes ....................A-1 B ASCII and IEEE-488 Bus Codes ..............B-1 C Glossary ....................... C-1...
Page 10 5730A Operators Manual...
Page 11: Introduction
The Calibrator also is available with a Wideband AC Voltage option which extends this workload to include RF voltmeters. Specifications are provided at the end of this chapter. The 5730A Calibrator is a fully- programmable precision source of: •...
Page 12 Offset and scaling modes that simplify linearity tests of multimeters. • Variable phase reference signal output and phase-lock input. • Interface for the Fluke Calibration 5725A Amplifier. • Interface for the Fluke Calibration 52120A Amplifier. • Standard IEEE-488 (GPIB) interface, that complies with ANSI/IEEE Standards 488.1-1987 and 488.2-1987.
Page 13: Safety Information
• For service information, see the 5730A Service Manual at www.flukecal.com. To order, refer to the Fluke Calibration Catalog or contact a Fluke Calibration sales representative. See “How to Contact Fluke Calibration”. This manual provides complete information to install and operate the 5730A Calibrator from the front panel or with remote commands.
Page 14: Wideband Ac Voltage Module (Option 5730A/03 Or 5730A/05)
RF voltmeters, with a frequency range of 10 Hz to 30 MHz (5730A/03) or 50 MHz (5730A/05). Output is in seven ranges from 300 μV (-57 dBm) to 3.5 V (+24 dBm) through a Type-N coaxial connector into a 50 Ω load. The output level is selected in volts or dBm through either the front panel controls or under remote control.
Page 15: 5725A Amplifier
The Fluke Calibration 5725A Amplifier is an external unit that operates under calibrator control. It extends ac voltage drive capabilities and both ac and dc current output range. The amplifier adds these capabilities to the 1100 V ac range of the 5730A Calibrator with no compromise in accuracy: •...
Page 16: 732B Direct Voltage Reference Standard
NIST legal volt and sends a report of calibration. 742A Series Resistance Standards The 5730A Calibrator uses 1 Ω and 10 kΩ resistor standards such as the 742A Series in its semi-automated calibration procedure to establish external traceability of resistance and current.
Page 17: The Components Of The Calibrator
Specifications Complete specifications are at www.flukecal.com. The 5730A Calibrator is verified and calibrated at the factory prior to shipment to ensure it meets the accuracy standards necessary for all certified calibration laboratories. By calibrating to the specifications in this chapter, the high-performance level can be maintained throughout the life of the Calibrator.
Page 18: Use Of Absolute And Relative Accuracy Specifications
Operators Manual Use of Absolute and Relative Accuracy Specifications To evaluate the 5730A Calibrator coverage of the calibration workload, use the Absolute Accuracy specifications. Absolute accuracy includes stability, temperature coefficient, linearity, line and load regulation, and the traceability to external standards. It is not necessary to add anything to absolute accuracy to determine the ratios between the Calibrator specifications and the tolerance requirements of the calibration workload.
Page 19: Installation
The Product can supply lethal voltages to the binding posts. Read this chapter before you use the Product. This chapter has instructions to unpack and install the 5730A Calibrator. The procedures for line voltage selection and connection to mains power are provided here.
Page 20: Placement And Rack Mounting
No part number Placement and Rack Mounting Put the 5730A Calibrator on top of a bench or mount in a standard-width, 24-inch (61-cm) deep equipment rack. For bench-top use, the Calibrator has non-slipping, non-marring feet. To mount the Calibrator in an equipment rack, use the Rack Mount Kit (Model Y5737) or the Rack Ear Kit (Model Y5738).
Page 21: Mains Voltage Selection
Mains Voltage Selection Mains Voltage Selection The 5730A Calibrator automatically detects the main line voltage when the soft power switch is pushed and configures itself to work at that voltage level. Nominal mains voltages ranging from 100 Vrms -120 Vrms and from 220 Vrms -240 Vrms ( ±10 %) are acceptable, with frequencies from 47 Hz to 63 Hz.
Page 22: Connect To Mains Power
Product. Connect a 5725A Amplifier The 5730A Calibrator provides an interface connector for the Fluke 5725A Amplifier. Designate the active amplifier for voltage and current boost in the Setup Menu, as detailed in Chapter 4. Refer to the 5725A Instruction Manual for the installation procedure.
Page 23: Features
This chapter is a reference for the functions and locations of the front and rear panel features. It also provides descriptions of each feature. Read this information before the 5730A Calibrator is used. Front-panel operation instructions for the Calibrator are in Chapter 4. Remote operation instructions are in Chapter 6.
Page 24 5730A Operators Manual Table 3-1. Front-Panel Features Item Description The color touch-sensitive display shows the output amplitude, frequency, and other active conditions and messages. The display provides controls not available with the keys alone. The Calibrator interface is made up of multiple menus, described in Chapter 4.
Page 25 Voltage Guard" and "Cable Connection Instructions" in Chapter 4 for details. The WIDEBAND connector is a Type "N" connector that provides a connection point for output from the Option 5730A/03 or 5730/05 Wideband AC Module. Wideband output specifications are stated for output levels present at the end of its WIDEBAND 3-foot 50 Ω...
Page 26 Connection points for ac and dc current and voltage output, and resistance. The function of each OUTPUT binding post is defined below: The common binding post for all output functions including 5725A amplified voltage output, but not Option 5730A/03 or 5730/05 Wideband AC or other auxiliary amplifier output. OUTPUT...
Page 27: Rear-Panel Features
Refer to "Auxiliary Amplifier Use" in Chapter 4 for Amplifier Connector details. Provides the analog and digital interface for the Fluke 5725A Amplifier. After the 5725A is connected to the 5725A AMPLIFIER connector, control 5725A Amplifier the 5725A from the Calibrator front panel or by remote commands.
Page 28 5730A Operators Manual Table 3-2. Rear-Panel Features (cont.) Item Description Provides the input for an external signal onto which the Calibrator can be phase locked. (1 V rms to 10 V rms, 10 kΩ input impedance.) The connector shell is not connected directly to chassis ground. It is connected PHASE LOCK IN internally to the OUTPUT LO binding post.
Page 29: Front-Panel Operation
Front-Panel Operation Introduction This chapter provides instructions to operate the 5730A Calibrator from the front panel and how to set up the Calibrator. Remote interface setups are explained in Chapter 5. Descriptions and instructions to program offsets, scale factors, and linearity checks are also provided.
Page 30: Turn On The Calibrator
To avoid electric shock, make sure the Product is safely grounded as described in Chapter 2. Make sure the rear power switch is on and then push Oto turn on the 5730A Calibrator. When the Calibrator is turned on, it takes approximately 50 seconds to complete its power-up process.
Page 31: Reset The Calibrator
“Operate” also shows on the display. When the STANDBY light above the output terminals is lit, all 5730A Calibrator binding posts except GROUND are open-circuited. “Standby” also appears on the display in this case.
Page 32: Connect The Calibrator To A Uut
Avoid the use of nickel-plated connectors. Optimum results can be obtained with the 5730A-7003 Low Thermal EMF Test Leads. Cable requirements depend on the output function, amplitude, and frequency. Table 4-1...
Page 33 Output Function Cable Recommendations DC voltage Low Thermal EMF Test Leads AC voltage ≤10 kHz 5730A-7002 (banana plugs) or 5730A-7003 (spade lugs) AC current ≤2 A, ≤10 kHz (If external sensing is necessary, use a twisted DC current ≤2 A shielded pair.)
Page 34: When To Use External Sensing
Calibrator as an external dc voltage reference for an ac/dc transfer standard. In this example, the Calibrator is sourcing 1 V dc into a Fluke 540B AC/DC Transfer Standard. The 180 Ω input impedance results in a current flow of approximately 5 mA.
Page 35: Cable Connection Instructions
Use the connection in Figure 4-4D to calibrate the meter referenced at the end of its test leads. Cable Connection Instructions To connect the 5730A Calibrator to a UUT: 1. If the Calibrator is powered on, push R, or 0V E. Either action sets the Calibrator to 0 mV in standby.
Page 36 5730A Operators Manual hhp011.tif Figure 4-1. UUT Connections: DC Voltage, AC Voltage ≤10 kHz...
Page 37 Front-Panel Operation Connect the Calibrator to a UUT hhp012.tif Figure 4-2. UUT Connections: AC Voltage >10 kHz...
Page 38 5730A Operators Manual hhp013.tiff Figure 4-3. UUT Connections: AC Current ≤2A 4-10...
Page 39 Front-Panel Operation Connect the Calibrator to a UUT hhp014.tif Figure 4-4. UUT Connections: Resistance 4-11...
Page 40 5730A Operators Manual hhp015.tif Figure 4-4. UUT Connections: Resistance (cont.) 4-12...
Page 41 Front-Panel Operation Connect the Calibrator to a UUT hhp016.tif Figure 4-5. UUT Wideband AC Voltage Output (5730A/03 Option) 5725A hhp017.emf Figure 4-6. UUT Connections: 5725A Amplified Current Output 4-13...
Page 42: Set The Output
5730A Operators Manual Set the Output While in normal output mode, the display can be divided into four horizontal sections. These sections are explained in Table 4-3. Table 4-3. Sections of the Display hhp158.tiff Section Explanation This section shows the date and time, the uncertainty specification of the output, and how long since the Calibrator was last calibrated.
Page 43 The subsequent step-by-step procedures explain how to set an output and how to use the features available for each output function: • DC voltage • AC voltage • DC current • AC current • Resistance • Wideband ac voltage (5730A/03 or 5730A/05 Option) • Variable phase • Boost operation (with an auxiliary amplifier) 4-15...
Page 44: Dc Voltage Output
5730A Operators Manual DC Voltage Output To set a dc voltage output: 1. Make sure the Calibrator is in standby (STANDBY annunciator lit). Push S if necessary. 2. If the UUT is not connected, connect it now as described in this chapter under “Connect the Calibrator to a UUT.”...
Page 45: Ac Voltage Output
Front-Panel Operation Set the Output • Setup Menu In addition, the Offset and Scale functions are available. The output range can be locked in dc volts. AC Voltage Output To set an ac voltage output: 1. Make sure the Calibrator is in standby (STANDBY annunciator lit). Push S if necessary.
Page 46 5730A Operators Manual 9. Enter a frequency with the numeric keypad followed by K or Nif necessary. The display now shows the amplitude and frequency of the entry. If an entry error is made, use B to clear the most recently entered digit, or push C to clear the display.
Page 47: Dc Current Output
Front-Panel Operation Set the Output DC Current Output To set a dc current output: 1. Make sure the Calibrator is in standby (STANDBY annunciator lit). Push S if necessary. 2. If the UUT is not connected, connect it now as described earlier in this chapter under “Connect the Calibrator to a UUT.”...
Page 48 5730A Operators Manual In dc current output, the selections available at the bottom are: • Current Output • External Guard • Boost • Wideband • Setup Menu In addition, the Offset and Scale functions are available. The output range can be locked in dc current.
Page 49: Ac Current Output
Front-Panel Operation Set the Output AC Current Output To set an ac current output: 1. Make sure the Calibrator is in standby (STANDBY annunciator lit). Push S if necessary. 2. If the UUT is not connected, connect it now as described earlier in this chapter under “Connect the Calibrator to a UUT.”...
Page 50 5730A Operators Manual 8. Enter a frequency with the numeric keypad (followed by K if necessary). The display now shows the amplitude and frequency of the entry. If an entry error is made, push C to clear the display, then reenter the value. If the most recent digit entered is in error, push B to clear that digit.
Page 51: Resistance Output
Front-Panel Operation Set the Output The Current Output item selects one of three locations for non-boosted (current sourced by the Calibrator, for example) current output: • OUTPUT binding post (NORMAL, which is the OUTPUT HI binding post, also the default setting) •...
Page 52 5730A Operators Manual If the “Ω Value Table” selection is used, touch the desired resistance value and to select it. To exit the menu, touch the “x” on the top right of the table. 5. Push K or N if necessary.
Page 53 Front-Panel Operation Set the Output In resistance output, the selections available at the bottom are: • External Sense • External Guard • 2-wire Compensation • Wideband • Setup Menu In the resistance function, two features are available to enhance accuracy: four-wire sensing and two-wire compensation.
Page 54: Wideband Ac Voltage Output (Option 5730A/03 Or 5730A/05)
Operators Manual Wideband AC Voltage Output (Option 5730A/03 or 5730A/05) To set an output from the Wideband AC Module (Option 5730A/03 or 5730A/05), proceed from Ror the power-up state as follows: 1. Make sure the Calibrator is in standby (STANDBY annunciator lit). Push S if necessary.
Page 55 Front-Panel Operation Set the Output 9. The display now shows the amplitude of the entry. If an entry error is made, push C to clear the display, then reenter the value. If the most recent digit entered is in error, push B to clear that digit.
Page 56: Variable Phase Output
5730A Operators Manual 11. Push E. The Calibrator clears the entry from the entry bar toward the bottom and displays in the larger area above. No voltage is available at the WIDEBAND Type “N” coaxial connector until P is pushed.
Page 57: Phase Locking To An External Signal
Front-Panel Operation Phase Locking to an External Signal 5. The phase can now be changed by entering a value with the numeric keypad, turning the knob, or touching a point on the phase scale. hhp127.tif 6. To turn phase shift off, touch the checkbox again. To enter a new amplitude leaving the phase shift as is, touch the X icon (where the + was) to collapse the phase control window before the new amplitude is entered.
Page 58: Auxiliary Amplifier Use
5730A Operators Manual 6. Touch Phase Reference to toggle between INTERNAL (the default, not locked to anything) and EXTERNAL. 7. If the Calibrator cannot lock onto the external signal for any reason, it shows the message below: hhp129.tif 8. To reactivate the numeric keypad for controlling the output, touch OK. Phase locking remains active until the frequency is changed or turned off phase lock with the Phase Reference selection.
Page 59: 5725A Amplifier Output
Front-Panel Operation Auxiliary Amplifier Use 5725A Amplifier Output XWWarning Boosted voltage operation produces high voltage at higher current levels than normally available from the Product. During boosted voltage operation, the potential risk of injury or fatal accident is greater than during normal operation. Note Refer to the 5725A Instruction Manual for setup and installation instructions.
Page 60: 52120A Transconductance Amplifier Output
5730A Operators Manual 52120A Transconductance Amplifier Output The 52120A Amplifier boosts ac and dc current. A maximum of three 52120A amplifiers may be connected together to the Calibrator. When their outputs are connected in parallel, they produce two (for two 52120As) or three (for three 52120As) times the current output, providing up to 300 A of dc current and 360 A rms ac current.
Page 61: Error Mode Overview
Front-Panel Operation Error Mode Operation Error Mode Overview This section explains how to use Error Mode in general. After the overview, a step-by- step procedure explains how to use this mode to read UUT error for each Calibrator output function. Enter Error Mode To start Error Mode, turn the rotary knob, push an arrow key, or push F.
Page 62: Use Error Mode
2. Use the output adjustment controls as necessary to get a reading on the UUT equal to the original entry on the 5730A Calibrator. To increment or decrement a higher-order digit, push I. As the reference value is approached, work progressively back towards the least-significant digit on the Calibrator display as necessary by pushing J.
Page 63: Read The Uut Error: Resistance Output
I. As the reference value is approached, work progressively back towards the least-significant digit on the 5730A Calibrator display as necessary by pushing J. It is only necessary to go one digit past the least significant digit of the UUT.
Page 64: Offset Error
5730A Operators Manual Offset Error Offset error can be measured directly by finding the Calibrator output that causes a meter reading of 0 V. This error is called an offset because it reflects a fixed error that is present in all meter output readings. For example, if a meter reads 0 V when -1.3 mV is applied, the meter has an offset error of +1.3 mV.
Page 65: Linearity Error
The error value is computed relative to the selected full-scale point. The formula for linearity error is: (Nominal setting) – (Adjusted 5730A Setting) Linearity Error= (Nominal Full Scale) Where the “nominal setting”...
Page 66: Combine The Error Types
5730A Operators Manual Figure 4-9 illustrates linearity error with both offset and scale errors assumed to be zero. The formula for linearity error yields: (10.0 – 9.993) Linearity Error= = 0.000352 = +0.0352 % 19.9 19.900 V Linear Response Calibrator Setting Linearity 10.000 V...
Page 67: Program An Offset
The Offset selection can be used when in the dc voltage or current function any time it is necessary to offset the 5730A Calibrator output by a fixed amount. The Offset selection is shown by touching the + icon on the right of the display above the bottom row of selections.
Page 68: Program A Scale Factor
“Linearity Checking With Offset and Scale”.) To program a scale factor: Set the 5730A Calibrator to output a level just below the UUT full-scale endpoint. For example, use 19.9 V for a UUT that ranges at 20 V. Adjust the Calibrator output with the rotary knob (and arrow keys if necessary) until the UUT reads the selected correct output level (19.9 V in this example).
Page 69: Linearity Check With Offset And Scale
Linearity Check with Offset and Scale Linearity Check with Offset and Scale With the 5730A Calibrator offset and scaling features, a UUT offset and scale errors can be removed to isolate and display linearity error. The subsequent procedure is an example that uses the Offset and Scale selection to determine both scale and linearity error of a 4 1/2-digit DMM.
Page 70 5730A Operators Manual Note The message “Error >+999.9999%” occurs because in this case the reference voltage is 0. 3. Touch Offset to identify this as the DMM zero-scale endpoint. The display changes hhp137.tif 4. Use the numeric keypad to set the Calibrator to a point near the end of the DMM range.
Page 71 Front-Panel Operation Linearity Check with Offset and Scale 5. Use the output adjustment controls to adjust the Calibrator output for a reading of 19.9 V (the reference value) on the DMM. The displays change to: hhp139.tif 6. Touch Scale to identify this as the full-scale endpoint for the DMM range. 7.
Page 72 5730A Operators Manual The 10.000208 V output setting is calculated by the Calibrator with the subsequent equation: 19.9 V – 19.903 V = 1.0001508 19.9 V This is applied to 10 V to yields: 10 V x 1.0001508 = 10.001508 V The 1.3 mV zero offset is then subtracted:...
Page 73: Set Up The Calibrator
• Calibration- The items in this submenu are used to activate calibration to external standards, Calibration Check, DC Zeros, and to verify or adjust the 5730A Calibrator calibration to its specifications. The Calibration submenu and process is explained in greater detail in Chapter 7.
Page 74: Setup Menu Rules
Conversely, from the Remote Port menu, touch Instrument Setup to go up one level, Setup Menu to go up two levels. An Exit or Cancel selection in the lower right of the display closes the menus or stops a process. The 5730A Calibrator then returns to the normal operation screen. 4-46...
Page 75: Menu Description
Front-Panel Operation Set up the Calibrator Menu Description A menu item that leads to a submenu with multiple selections has a black and amber title bar on top followed by a list of the items in the submenu. The Instrument Setup menu is shown in this example: Instrument Setup Remote Port...
Page 76 5730A Operators Manual Some selections do not have submenus beneath them or do not include changeable items. For example, in the display below, the About this Instrument selection has no changeable items. Setup Menu Calibration Instrument Setup DC Zero Remote Port...
Page 77 Front-Panel Operation Set up the Calibrator There are selections without a submenu listed beneath them that are used to start processes. For example, the Run DC Zero selection from the Calibration menu starts the DC Zero process (see Chapter 7). Setup Menu Calibration Run DC Zero...
Page 78 5730A Operators Manual Touchscreen selections with several possible values look like the Calibration Interval item shown in the screen above. Touch the selection to open another menu with a selection for each possible choice as shown below. Instrument Uncertainty Setup Menu...
Page 79: Instrument Setup
Front-Panel Operation Instrument Setup Some of the setup menus have a Restore Factory Defaults selection. If this selection is touched, a confirmation is requested. Touch Restore to reset the Calibrator to factory defaults or Cancel to make no changes. Instrument Setup The Instrument Setup menu (accessed by touching the Instrument Setup selection in the Setup Menu) is shown on this screen: Instrument...
Page 80: Uncertainty Information Menu
5730A Operators Manual AC Transfer Off stays active until the Calibrator is reset or the power is turned off. For remote control applications, the same feature is accessible through the remote command Transfer Off. Send the command Transfer On to restore internal ac transfers to normal operation.
Page 81: Set Output Limits
Front-Panel Operation Instrument Setup Set Output Limits An output limit feature is available to help prevent accidental damage to a UUT from overcurrent or overvoltage conditions. The maximum positive and negative allowable voltage or current output can be preset with this feature. Entry limits that are set prevent any input greater than the limit from being activated by entry through the front-panel keys or the output adjustment controls.
Page 82: Select Boost Amplifiers
-10.00030, the error is -30 ppm or -0.0030 %. The 5730A Calibrator has two methods of scaling the UUT error. The first method, called the “nominal” method is used in the Fluke Calibration 5700A, 5720A, 5502A, and 5522A calibrators.
Page 83 Front-Panel Operation Instrument Setup The second method is called “true value”. Both methods can be used in this Calibrator. The nominal method of error calculation uses the formula: reference value – edit value reference value The nominal method is useful to check the error of the Calibrator itself, when its performance is verified against a more accurate measuring device.
Page 84: Instrument Settings
A long-life lithium battery keeps the clock/calendar running during power- off periods. If the battery in the Calibrator should ever need replacement, contact a Fluke Calibration Service Center. To set the date or time, enter a security passcode. Touch Setup Menu>Instrument Settings>Date/Time.
Page 85: Language
Front-Panel Operation Instrument Settings Language To select the display language used for the 5730A Calibrator UI: 1. Touch Setup Menu>Instrument Settings>Language. 2. Touch the necessary language from the screen. The choices are: • English • French • Spanishe • Simplified Chinese •...
Page 86 5730A Operators Manual 4-58...
Page 87: Remote Interface Setup
Remote Interface Setup Introduction The 5730A Calibrator can operate under remote control of an instrument controller, computer, or terminal, as well as under direct local control from the front panel. Remote control can be interactive, with the user controlling each step from a terminal, or can be set up to run automatically, taking commands from a computer within an automated system.
Page 88: Gpib (Ieee-488) Interface
Bus Setup Procedure To set up the 5730A Calibrator on the IEEE-488 bus, only a choice of address and the connection to a controller is necessary. To set up the bus: 1. With the Calibrator off, attach the IEEE-488 cable to the rear panel IEEE-488 connector.
Page 89: Ieee-488 Interface Configuration
No bus control capability Bus Communication Overview Communication between the controller and the 5730A Calibrator takes place with commands established by IEEE-488 standards and commands specifically related to the Calibrator. The commands in Tables 6-4, 6-5, and 6-6 are all the remote commands, both common and device-dependent.
Page 90: Rs-232 Serial Interface
RS-232 Serial Interface Use the RS-232 Port for Remote Control This procedure is intended for those who use the 5730A Calibrator serial interface for remote control from a terminal or computer with a serial interface. This section describes how to set up the RS-232 interface for remote control with protocol similar to IEEE-488.
Page 91: Set Up And Connect The Serial Interface
Refer to the specifications for the peripheral device, and proceed as follows to set up the serial interface for the application: 1. With the 5730A Calibrator power off, connect a 9-pin D subminiature RS-232 null- modem cable such as Fluke accessory RS43 to the rear panel RS-232 connector and to the peripheral device.
Page 92: Serial Remote Control Setup Procedure
5. Touch Exit to exit the Setup Menu. Exceptions for Serial Remote Control When the RS-232 port is used to remotely control the 5730A Calibrator, either interactively with a terminal or under computer control, operation is the same as with an IEEE-488 controller connected to the IEEE-488 port for control.
Page 93: Ethernet Interface
An internet (IP) address is necessary for all internet and TCP/IP communications. If DHCP is enabled, the 5730A Calibrator will use the dynamic address supplied by the DHCP server. If the DHCP server fails to supply the address, the IP address will be shown as "0.0.0.0".
Page 94: Set A Static Internet Address
*RST command. Configure the General Network Socket Port In order to communicate with each other, a client computer and the 5730A Calibrator must use the same socket port number. The default port is 3490. Typically, the default port does not need to be changed. If the socket port must be changed, enter the Socket Port number supplied by the network administrator.
Page 95: Configure The Lan Default Gateway
The default gateway IP address is the IP address of a gateway (router) attached to the same network as the device. When the 5730A Calibrator detects that a client computer is not on the same network (using the network number), the data is sent through the gateway to reach the host computer.
Page 96: Establish An Ethernet Connection
Operators Manual Establish an Ethernet Connection Telnet is the easiest method of establishing an Ethernet connection with the 5730A Calibrator. Telnet is a client-server protocol, based on TCP. The Telnet Protocol provides a fairly general, bi-directional, eight-bit byte oriented communications method. Telnet is available on all UNIX servers and on most PCs.
Page 97: Use Of Usb 2.0 Remote Control
3. Touch USB. 4. Touch Exit to exit the Setup Menu. When the USB port is used to remotely control the 5730A Calibrator, either interactively with a terminal or under computer control, operation is the same as with an RS-232 controller connected to the RS-232 port for control.
Page 98 5730A Operators Manual 5-12...
Page 99: Remote Commands And Syntax
For example: “OUT 1 V, 100 HZ.” 2. Numeric parameters may have up to 255 significant figures and their exponents may range from -32000 to +32000. The useful range for 5730A Calibrator programming is ± 2.2 E-308 to ± 1.8 E308.
Page 100: Extra Space Characters
Table 6-5 contains examples for commands whose parameters are not self-explanatory. Terminators To signal the end of a response sent to the controller, the 5730A Calibrator sends a “terminator.” For response message terminators, the Calibrator sends the ASCII character Line Feed with the EOI control line held high. The subsequent characters are recognized by the Calibrator as terminators when encountered in incoming data: •...
Page 101: Incoming Character Processing
(See Table 5-2 for details.) Input Buffer Operation As the 5730A Calibrator receives each data byte from the controller, it places the bytes in a portion of memory called the input buffer. The input buffer holds up to 128 data bytes and operates in a first in, first out fashion.
Page 102: Commands
Multiple Commands Controllers may send commands all at once, or one at a time. To set the output to 100 mV dc and then place the 5730A Calibrator into operate, two separate commands may be used: OUT 100 MV <CR/LF>...
Page 103: Sequential And Overlapped Commands
*OPC?, and *WAI in Table 6-5 for more information.) Commands Ignored When Not in Remote The 5730A Calibrator can receive and execute most commands in either local or remote state. Commands that change the state of the Calibrator are prevented from executing unless the Calibrator is in the remote state.
Page 104: Definition: Queries And Commands
Table 6-1 lists the functional elements of commands described by the IEEE-488.2 standard that are used by the 5730A Calibrator. This table is for those who have a copy of the standard and want to use it to pursue additional information. The standard provides...
Page 105 Remote Commands and Syntax Commands Table 6-1. Functional Elements of Commands Element Function A sequence of zero or more PROGRAM MESSAGE PROGRAM MESSAGE UNIT elements, each of which is separated by a PROGRAM MESSAGE UNIT SEPARATOR element A command, programming data, or query received by PROGRAM MESSAGE UNIT the device.
Page 106: Interface Messages (Ieee-488 Only)
IEEE-488 standards define interface messages. Table 6-2 lists the interface messages that the 5730A Calibrator accepts. Table 6-3 lists the interface messages that the 5730A Calibrator sends. The mnemonics listed in the tables are not sent as literal statements as commands are.
Page 107 Remote Commands and Syntax Commands Table 6-2. Interface Messages Accepted by the Calibrator (cont.) Mnemonic Name Function Addresses a specific device on the bus as a talker. The controller My Talk sends MTA automatically whenever it directs a device-dependent or Address common query to a specific instrument.
Page 108: Use Of *Opc?, *Opc, And *Wai
*OPC?, except the program must read the ESR to detect the completion of all operations. The *WAI command causes the 5730A Calibrator to wait until any prior commands have been completed before continuing on to the next command, and takes no other action.
Page 109 Remote Commands and Syntax Commands Table 6-4. Command Summary by Function Error Mode Commands ADJOUT? Returns the adjusted output magnitude and frequency ERR_REF Selects the denominator for UUT error calculations. ERR_REF? Returns the denominator used to compute UUT error. INCR Increments or decrements the output MULT Multiplies the reference by a value and establishes a new reference...
Page 110 Puts the Calibrator in standby VOUT? Returns the output amplitude in volts if the active units are dBm WBAND Activates or deactivates the Wideband AC Module (Option 5730A/03 or 5730A/05) XFER Turns ac/dc transfers off (or on) after output has settled.
Page 111 Remote Commands and Syntax Commands Table 6-4. Command Summary by Function (cont.) Remote Interface Parameter Setting Commands SP_EOF Sets the End-Of-File (EOF) string SP_EOF? Returns the End-Of-File (EOF) string Sets baud, terminal or computer mode, stall method, data bits, stop bits, SP_SET parity, and End-Of-Line (EOL) string Returns baud rate, terminal or computer mode, stall method, data bits, stop...
Page 112 Saves the calibration report to a USB flash drive CAL_WBFLAT Does Wideband AC Module (Option 5730A/03 or 5730A/05) flatness calibration CAL_WBGAIN Does Wideband AC Module (Option 5730A/03 or 5730A/05) gain calibration CAL_ZERO Does internal zeros calibration DIAG Runs self-diagnostics 6-14...
Page 113 Remote Commands and Syntax Commands Table 6-4. Command Summary by Function (cont.) Calibration, Testing, and Diagnostics Commands for the Calibrator (cont.) DIAGFLT Sets the Calibrator response to faults in remote diagnostics DIAGFLT? Returns the Calibrator response to faults in remote diagnostics OHMSREF? Returned calculated resistance reference (Main software revision H and after)
Page 114 5730A Operators Manual Table 6-5. Commands ADDR Description Sequential command. Ignored if not in remote. Sets the GPIB interface bus address. Parameter Bus address ADDR 4 Example Sets the GPIB interface bus address to 4 ADDR ? Description Sequential command. Gets the GPIB interface bus address.
Page 115 Remote Commands and Syntax Commands Table 6-5. Commands (cont.) BRIGHTNESS Sets the brightness of the GUI display. Description Integer, 0 to 100, where 0 is dimmest and 100 is brightest. Parameter BRIGHTNESS 50 Example Sets the display to half brightness (the default value). BRIGHTNESS? Returns the brightness setting.
Page 116 5730A Operators Manual Table 6-5. Commands (cont.) CAL_CLST? Sequential command. Description Returns a list of names values of a particular group of calibration constants. (Returns active calibration constants) CHECK (Returns calibration check constants) Parameter PREV (Returns previous calibration constants) (String) "<EOL>...
Page 117 Remote Commands and Syntax Commands Table 6-5. Commands (cont.) CAL_DATE? Sequential command. Description Returns the date of the most recent calibration of the specified type. B5725 (Last 5725A Amplifier calibration) (Last calibration of the Calibrator) Parameter WBFLAT (Last wideband flatness calibration) WBGAIN (Last wideband gain calibration) ZERO...
Page 118 5730A Operators Manual Table 6-5. Commands (cont.) CAL_REF Overlapped long-term command, ignored if not in remote. Calibrates the internal references for the main output functions based on comparison to an externally-applied standard. To calibrate the Calibrator, the controller must send a...
Page 119 Remote Commands and Syntax Commands Table 6-5. Commands (cont.) CAL_RPT? Sequential command. Description Returns a report for a specified calibration activity (see Chapter 6 for format details). (Output change report for calibration) Parameter CHECK (Output change report for calibration check) (A list of all calibration constants) (String) "<EOL>...
Page 120 5730A Operators Manual Table 6-5. Commands (cont.) CAL_SHIFT? Sequential command. Description Returns a particular set of output shifts from a particular range. (Output changes due to calibration check) CHECK (All output changes due to calibration check) Parameter Range identifier from Table 5-4 (String) "<EOL>...
Page 121 Remote Commands and Syntax Commands Table 6-5. Commands (cont.) CAL_SLST? Sequential command. Description Returns a group of calibration constant shifts due to a calibration activity. (All output changes due to calibration) Parameter CHECK (All output changes due to calibration check) (String) "<EOL>...
Page 122 CAL_WBFLAT Overlapped command, ignored if not in remote. Does Wideband AC Module (Option 5730/03 or 5730A/05) flatness calibration. There are two different calibration procedures for the wideband module- gain and flatness. Wideband gain is to be done at every calibration cycle. Wideband flatness is needed only during full verification, recommended every two years.
Page 123 CAL_WBGAIN Overlapped long-term command, ignored if not in remote. Does Wideband AC Module (Option 5730/03 or 5730A/05) gain calibration. There are two different calibration procedures for the wideband module: gain and flatness. Wideband gain is to be done at every calibration cycle. Wideband flatness is needed only during full verification (recommended every two years).
Page 124 5730A Operators Manual Table 6-5. Commands (cont.) *CLS Sequential command. Description (Clear status.) Clears the ESR, ISCR, the fault queue, and the RQS bit in the status byte. This command terminates pending operation complete commands (*OPC or *OPC?). Parameter None CUR_POST Sequential command, ignored if not in remote.
Page 125 Remote Commands and Syntax Commands Table 6-5. Commands (cont.) DHCP Description Sequential command. Ignored if not in remote. Enables/disables DHCP (Dynamic Host Configuration Protocol) for LAN operation. Parameter ON (enables DHCP operation) OFF (disables DHCP operation) DHCP? Description Sequential command. Returns the current state of the DHCP configuration. Parameter None Response...
Page 126 *IDN? response. It also accepts BTYPE VB5205 and implements it as if Description BTYPE VBNONE was sent, as a Fluke 5205A cannot be connected to the 5730A Calibrator. (Integer) 5700 selects 5700A emulation; 5720 selects 5720A emulation; anything else Parameter selects normal 5730A behavior.
Page 127 Remote Commands and Syntax Commands Table 6-5. Commands (cont.) EOL? Sequential command. Returns the end of line terminator for outgoing data for a specified Description remote port. Parameter 1. SERIAL, USB, ENET Response String EOL? SERIAL Example Returns CRLF if the serial end of line terminator is set to CRLF. ERR_REF Description Selects the denominator for UUT error calculations.
Page 128 5730A Operators Manual Table 6-5. Commands (cont.) *ESR? Sequential command. Description Returns the byte from the Event Status Register and clears the register. The ESR is described under "Check the Calibrator Status." Parameter None Response (Integer) Decimal equivalent of the register byte.
Page 129 Remote Commands and Syntax Commands Table 6-5. Commands (cont.) FORMAT Sequential command, ignored if not in remote. Use with extreme care. Restores the contents of the non-volatile memory to factory Description defaults. The non-volatile memory holds calibration constants and setup parameters. All calibration data is lost permanently.
Page 130 5730A Operators Manual Table 6-5. Commands (cont.) *IDN? Sequential command. Description Returns Calibrator model number and firmware version letters for the main, inguard, and if attached, the 5725A Amplifier CPU. Parameter None (String, string, 0, string) A message containing four fields separated by commas, as follows:...
Page 131 Remote Commands and Syntax Commands Table 6-5. Commands (cont.) ISCE Sequential command. Description Loads a byte into the Instrument Status Change Enable register described under "Check the Calibrator Status." Parameter The decimal equivalent of the binary number to load into the register. ISCE 56 Example Enables bits 3 (BOOST), 4 (RCOMP), and 5 (RLOCK) in the Service Request Enable...
Page 132 5730A Operators Manual Table 6-5. Commands (cont.) LCOMP_52120? Sequential command. Returns the current state of inductance compensation for Description attached 52120As. Parameter None Response String LCOMP_52120? Example Returns ON if LCOMP is enabled. LIMIT Sequential command, ignored if not in remote.
Page 133 Remote Commands and Syntax Commands Table 6-5. Commands (cont.) MACADDR? Sequential command. Returns MAC/HW address for LAN communication. The MAC Description address is a unique assigned value and cannot be changed. Parameter None Response String MACADDR? Example Returns six groups of hexadecimal numbers separated by colons (for example, 01:23:45:67:89:ab) MULT Overlapped command, ignored if not in remote.
Page 134 5730A Operators Manual Table 6-5. Commands (cont.) OLDREF Overlapped command, ignored if not in remote. Description Sets the Calibrator output to the previously-programmed reference value. (The same as pushing the Ein local operation.) Parameter None ONTIME? Sequential command. Description Returns the time in minutes since the Calibrator was turned on.
Page 135 Remote Commands and Syntax Commands Table 6-5. Commands (cont.) *OPT? Sequential command. Description Returns a list of analog modules installed in the Calibrator, including any auxiliary amplifiers that are attached. Parameter None Response (Series of strings) A list of the modules and auxiliary amplifiers, separated by commas. Example "5725A Attached","52120 Attached"...
Page 136 5730A Operators Manual Table 6-5. Commands (cont.) PHASE? Sequential command. Description Returns the phase angle of the variable phase output signal, with respect to the main output signal. Parameter None Response (Integer) Phase in degrees (0 to 180,-179 to 0, 0 if the output is not ac) PHASELCK Overlapped command, ignored if not in remote.
Page 137 \<digits\> field defines the number of user data bytes in the \<user data\> field. *PUD #0FLUKE<Line Feed with EOI> *PUD #15FLUKE Both examples store the word FLUKE in the protected user data area. Example: Note The 1 indicates that one digit must follow (in this case ‘5’), and the 5 indicates that five characters are in the remainder of the *PUD message (in this case, FLUKE).
Page 138 5730A Operators Manual Table 6-5. Commands (cont.) RCOMP Overlapped command, ignored if not in remote. Description While a resistance output 19 kΩ or lower is selected, RCOMP activates or deactivates two-wire ohms compensation circuitry. (Turns on the two-wire compensation circuitry)
Page 139 Remote Commands and Syntax Commands Table 6-5. Commands (cont.) RPT_STR? Sequential command. Description Returns the user report string. The user report string can be read on the Display in local operation, and appears on calibration reports. Parameter None Response (String) Up to 40 characters *RST Overlapped command, ignored if not in remote.
Page 140 5730A Operators Manual Table 6-5. Commands (cont.) SP_EOF Sequential command, ignored if not in remote. Description Sets the End-Of-File character string for the RS-232-C serial interface. The EOF setting is saved when the power is turned off. ASCII code (decimal) for the first character...
Page 141 Remote Commands and Syntax Commands Table 6-5. Commands (cont.) SP_SET? Sequential command. Description Returns the serial port settings contained in nonvolatile memory. (Integer) One of these baud rates: 9600, 19200, 38400, 57600 or 115200 (String) TERM or COMP (Response type) (String) XON, RTS, or NOSTALL (Stall method) Response...
Page 142 5730A Operators Manual Table 6-5. Commands (cont.) STATE? Sequential command. Description Returns the long-term state of the Calibrator. Parameter None 1. (Integer) Gross state, with the subsequent responses: Operating Calibration, wideband positive gain Self diagnostics Calibration, wideband negative gain Self diagnostics halted by a fault...
Page 143 Remote Commands and Syntax Commands Table 6-5. Commands (cont.) SUBNETMASK? Description Sequential command. Returns Ethernet subnet mask for LAN communication. Parameter None Response String SUBNETMASK? Example Returns 255.255.254.0 if the subnet mask was previously set to this value. *TST? Sequential command, ignored if not in remote. Initiates a series of self-tests, then returns a "0"...
Page 144 Calibrator would normally go on to process other commands before completing the OUT command. WBAND Overlapped command, ignored if not in remote. Activates or deactivates output from the Wideband AC Module (Option 5730A/03). This Description has the same action as touching the wideband selection from the front panel during local operation.
Page 145 Remote Commands and Syntax Commands Table 6-6. Serial Remote Control Commands LOCAL Sequential command. Description Enables the local state. This command duplicates the IEEE-488-GTL (Go to Local) message. Parameter None LOCKOUT Sequential command. Description Enables the local lockout state. This command duplicates the IEEE-488 LLO (Local Lookout) message.
Page 146: Local-To-Remote State Transitions
Operators Manual Local-to-Remote State Transitions The 5730A Calibrator can be operated either locally from the front panel, or remotely with remote control commands. In addition to front panel and remote control operation, the controller can be placed in a local lockout condition at any time by remote command.
Page 147 Remote Commands and Syntax Local-to-Remote State Transitions • Remote with Lockout The remote with lockout state can be entered from remote or local with lockout, but not directly from local. Remote with lockout is similar to the remote state, but restricted: the Local Control is not shown on the display.
Page 148: Check The Calibrator Status
Operators Manual Check the Calibrator Status The controller has access to six status registers for the 5730A Calibrator, which indicate the Calibrator conditions in the as shown in Figure 6-1. Each register bit is explained under separate headings for each register. Table 6-9 lists each register and its remote commands.
Page 149 Remote Commands and Syntax Check the Calibrator Status Instrument Status Change Enable Register & Read using ISCE? & Write using ISCE & & & & & & & & & & & & & & Instrument Status Change Register Read using ISCR? Bit Change from 0 1 or 1 Instrument Status...
Page 150: Status Byte Register
The most important and frequently used register is the Status Byte Register, which is how the 5730A Calibrator responds to a serial poll. This byte is cleared (set to 0) when the power is turned on. A serial poll cannot be done if the RS-232C/USB/Ethernet port is used as the remote control interface.
Page 151: Event Status Register
Remote Commands and Syntax Check the Calibrator Status Event Status Register The Event Status Register is a two-byte register that the higher eight bits are always 0, and the lower eight bits except bits 6 and 1 represent various conditions of the Calibrator. The ESR is cleared (set to 0) when the power is turned on, and every time it is read.
Page 152: Read The Esr And Ese
5730A Operators Manual Read the ESR and ESE To read the contents of the ESR, send the remote command, *ESR?. The ESR is cleared (set to 0) every time it is read. To read the contents of the ESE, send the remote command, *ESE?.
Page 153: Read The Isr, Iscr, Or Isce
Remote Commands and Syntax Check the Calibrator Status ZERO CAL When 1, DC Zero Cal is necessary. ACXFER When 1, ac/dc transfer is active. SETTLED When 1, the output has stabilized to within specification. REMOTE When 1, the Calibrator is under remote control. WBND When 1, the wideband is active.
Page 154 5730A Operators Manual Note The Calibrator Main CPU software revision levels can be checked with the Instmt Config Menu, or *IDN? remote command. After the Calibrator has encountered a fault, do one of the subsequent actions to reenable the OPER command: 1.
Page 155: Operator Maintenance And Calibration
Introduction This chapter explains how to do the routine maintenance and calibration tasks necessary to keep the 5730A Calibrator in optimal operating condition. For intensive maintenance tasks such as troubleshooting or repair, contact a Fluke Calibration Service Center. See “How to Contact Fluke Calibration” in Chapter 1.
Page 156 5730A Operators Manual hhp003.emf Figure 7-1. Access the Fuse...
Page 157: Clean The Air Filter
Operator Maintenance and Calibration Clean the Air Filter Clean the Air Filter WCaution Damage caused by overheating can occur if the area around the fan is restricted, the intake air is too warm, or the air filter becomes clogged. To prevent Product damage, make sure that the filter is completely dry before reinstallation.
Page 158: Clean The Exterior
Operators Manual Clean the Exterior To keep the 5730A Calibrator looking new, clean the case, front panel keys, and display with a soft cloth slightly dampened with either water or a non-abrasive mild cleaning solution that is not harmful to plastics.
Page 159 Operator Maintenance and Calibration User-Replaceable Parts hhp224.emf Figure 7-3. Replaceable Parts...
Page 160: 5730A Calibration
When finished with artifact calibration, but before the new constants are saved, the 5730A Calibrator presents the proposed adjustments as +/- ppm of range and percentage change in specification for each range and function. A list of changes can be sent to the computer through the serial port, USB device port, Ethernet port, or the IEEE-488 port using the remote command: CAL_RPT? CHECK.
Page 161: Establish Traceability
Calibration Reports The 5730A Calibrator stores two sets of calibration constants: the set currently in use and the old set from the previous calibration. This gives the Calibrator the ability at any time to produce a calibration report of the differences between the present settings and the settings that were in effect before the last calibration.
Page 162: Dc Zeros Reminder
5730A Operators Manual 3. Touch Run DC Zero to start the dc zeros routine. The status of the dc zero calibration is shown as the Calibrator progresses through a series of steps. When completed, the Calibrator shows “Calibration complete”. Note If the Calibrator is not warmed up, the display prompts to continue or cancel the DC Zeros function.
Page 163: Calibration Security Passcode
This passcode replaces the hardware calibration switches found on older calibrators such as the Fluke 5720A. As with the 5720A, the passcode also protects the ability to set the date for the internal real-time clock.
Page 164: When To Adjust Calibrator Accuracy
2 ppm 10 Ω to 100 MΩ Calibration Procedure Before this procedure is started, make sure the 5730A Calibrator is powered on and has completed the appropriate warm-up period. Follow this procedure to calibrate the main output functions: 1. Touch Setup Menu>Calibration. The calibration menu is shown.
Page 165 6. If the entered value is not between 9 V and 11 V, an error message is shown. The process can be started over from this point with a calibrated 732B. Push E to start the calibration procedure. As the 5730A Calibrator does self-calibration, it will indicate what is happening on the display.
Page 166 5730A Operators Manual hhp028.emf Figure 7-5. 742A-1 and 742A-10k External Calibration Connections 12. Disconnect the 10 kΩ standard, and connect the Calibrator to the 1 Ω standard. Enter the value of the 1 Ω standard. If the standard is not between 0.9 Ω and 1.1 Ω, an error message appears, and the user can start over from this point with another standard.
Page 167: Range Adjustment
Range adjustment is accomplished by adjusting a range constant, which is an additional gain multiplier. Although range calibration is not needed in order to meet total uncertainty specifications, they are useful for tuning the 5730A Calibrator so that its values are closer to in-house standards.
Page 168 5730A Operators Manual 1. Touch Setup Menu>Calibration>Range Adjustment to bring up the Range Adjustment menu shown below: Range Setup Menu Calibration Adjustment Resistance Base 19 Values Base 10 Values Exit hhp189.emf 2. Touch DCV to show the next menu shown below:...
Page 169 Operator Maintenance and Calibration Range Adjustment 3. Touch 220 V and this screen is shown: Range Setup Menu Calibration Adjustment 220 V Enter nominal value then press ENTER. Cancel hhp216.emf 4. Connect the 732B, 8508A (Null Detector), and 752B in a 10:1 configuration, as shown in Figure 7-6.
Page 170 5730A Operators Manual hhp029.tif Figure 7-6. 220 V DC Range Calibration Connections 7-16...
Page 171: Calibrate The Wideband Ac Module (Option 5730A/03 Or 5730A/05)
The Wideband AC Module (Option 5730A/03 or 5730A/05) can be installed in the 5730A Calibrator. The module needs to be calibrated for both gain and flatness. The gain should be calibrated when the 5730A/03 or 5730A/05 main output functions undergo their routine calibration.
Page 172: Wideband Flatness Calibration Procedure
Touch Discard to delete the results of the calibration. In both cases, the calibration screen is shown after the results are saved or deleted. Wideband Flatness Calibration Procedure This calibration procedure and the full verification of the 5730A Calibrator should be done every 2 years. For flatness calibration: 1.
Page 173 At this point and all subsequent points for this range, push OPERATE then adjust the Calibrator output adjustment knob to bring the 5790A error display to 0 and touch Continue on the Calibrator. Repeat this step for each frequency through 30 MHz (5730A/03 option) or MHz (5730A/05 option). 7-19...
Page 174: Calibration Check
(there is no need to enter the security passcode, since no constants are changed). Use calibration check at any time to confirm the integrity of the 5730A Calibrator without connecting external standards. The calibration check is also useful for collecting a performance history.
Page 175: Develop A Performance History
Develop a Performance History Develop a Performance History A Fluke Calibration specification is a set of performance limits that all products must meet. To maintain consistent quality, Fluke calibrators are specified with enough margin to include temperature, line, and load extremes, plus additional margin for production.
Page 176: Calibration Shift Results
5725A Amplifier output shifts (if attached) • Wideband AC Module (Option 5730A/03 or 5730A/05) output shifts (if installed) The shifts of references and outputs are given both as absolute shifts in V, A, or ohms, and also (for non-zero magnitudes) as shifts relative to the previous value, in parts per million (ppm) or percent (%).
Page 177: Calibration Check Shift Results
Operator Maintenance and Calibration Save Calibration Reports Calibration Check Shift Results The Calibration Check report presents changes in the magnitude of self-correction generated by calibration check. Calibration check uses internal standards rather than external standards as the basis for comparison, and does not make permanent changes to calibration constants.
Page 178 5730A Operators Manual 7-24...
Page 179: Options And Accessories
The Wideband AC Voltage Module (Option 5730A/03 or 5730A/05) is used to calibrate RF voltmeters, and can be installed in the Calibrator. The Module frequencies range from 10 Hz to 30 MHz (5730A/03) or 50 MHz (5730A/05). It is a highly accurate, low-noise, ac voltage source that maintains excellent flatness. The module sources its output through a coaxial connector into a 50 Ω...
Page 180: Low Thermal Emf Test Leads
Shield lead has a banana plug connector. • Model 5730A-7002. Low Thermal Test Lead cables with banana plugs. Set includes two 4 ft. (122 cm) cables. Each cable includes two conductors and a shield lead.
Page 181: Rack Mount Kits
5725A Amplifier on slides in a 24 inch (61 cm) equipment rack. Model Y5737 is for the 5730A and Model Y5735 is for the 5725A. The Y5738 includes the Rack Ears and fasteners without the slide rack mount. Instructions are included with each kit.
Page 182: 5725A Amplifier
Operators Manual 5725A Amplifier The Fluke 5725A Amplifier is an external unit that operates under Calibrator control to extend ac voltage drive capabilities and both ac and dc current output range. The amplifier adds the following capabilities to the Calibrator 1100 V ac range with no compromise in accuracy: •...
Page 183: A Fault Codes
Appendix A Fault Codes 0-Level Faults: Firmware Updater Backup directory not specified in AuxInfo Backup filename not specified in AuxInfo Destination directory not specified in AuxInfo Destination filename not specified in AuxInfo Error extracting required file transfer data from AuxInfo Error retrieving parameter value from AuxInfo Error retrieving section name from AuxInfo Interim directory not specified in AuxInfo...
Page 184 5730A Operators Manual Cannot get required AuxInfo parameters (config/cal) Cannot open new file (config/cal) Failed to read the existing (destination) file (config/cal) Failed to read the new (source) file (config/cal) Cannot remove existing backup file (config/cal) Cannot rename existing file to backup file (config/cal) Source file does not exist (config/cal) Invalid timestamp.
Page 185 Appendices Fault Codes File on USB device is older than installed file File on USB device same as installed file (per timestamp) Error unmounting USB device Cannot extract ver # from line 1 of src file (config/cal) Cannot extract ver # from line 1 of dest file (config/cal) Kernel Datapath1 MD5 hash failed Kernel Datapath2 (readback) MD5 hash failed 100-Level Faults: System...
Page 186 5730A Operators Manual 5725 -400 V Supply Too Small 5725 +400 V Supply Current Too High Output Tripped To Standby 5725 -400 V Supply Current Too High Output Tripped To Standby 5725 Fan Not Working 5725 CLAMPS Fault Output Tripped To Standby...
Page 187 Appendices Fault Codes 800-Level Faults: Executive Wideband Module Needed Amplifier Not Selected or Connected Amplifier Must Remain On For This Output Over Limits Of Locked Range Under Limits Of Locked Range Invalid Date Invalid Time DC dBm Not Allowed Ext Ref Value Out Of Range Bad Edit Digit Movement Not Wideband Units Cannot Set Frequency With Ohms...
Page 188 5730A Operators Manual Cannot Use Ext Sense On Selected Range Cannot Use 2-Wire Comp On Selected Range Cannot Lock This Range Cannot Set Clock, Cal Is Secured Cannot Fmt EEPROM, Cal Is Secured Illegal Output Post For Current No Boost Available For Selected Output...
Page 189 Appendices Fault Codes 1100-Level Faults: 5725 Communication Transmit 1100 Multiple Timeouts Sending To 5725 1101 5725 RQR Loop 1102 Unexpected NSA From 5725 1103 Bad Packet Number In ACK From 5725 1104 Bad Control Byte From 5725 Receive Task 1105 Illegal 5725 Transmit Task State 1106 5725 Indefinite ACKWAIT Holdoff...
Page 190 5730A Operators Manual 1600-Level Faults: Guard Crossing Transmit 1600 Multiple Timeouts Sending To Inguard 1601 Inguard Request Reset Loop 1602 Unexpected NSA From Inguard 1603 Bad Packet Number In ACK From Inguard 1604 Bad Control Byte From Inguard Rcv Task...
Page 191 Appendices Fault Codes 1821 NRMbstcur Passed Bad Range 1826 5725 No Longer Connected 1827 14-Bit DAC Scaling Found Zero Output 1900-Level Faults: Non-volatile 1900 Repaired Missing Or Corrupted NV Files 1903 Unknown Nonvolatile Constant Selector 1905 Could Not Write Byte To 5725 EEPROM 1906 Checksum Error Reading 5725 EEPROM 2000-Level Faults: Analog Operations Manager...
Page 192 5730A Operators Manual 2219 Invalid Binary Block 2220 Invalid Character 2221 Invalid Decimal Number 2222 Invalid Hexadecimal Block 2223 Invalid Hexadecimal Number 2224 Too Many Parameters 2225 Invalid Octal Number 2226 Too Many Characters 2227 Invalid String 2228 Invalid Register Address...
Page 193 Appendices Fault Codes 2509 Could not Cal 2.2 V Zero 2510 Could not Cal 220 mV Gain S1 2511 Could not Cal 220 mV Gain S2 2512 Could not Cal 220 mV Gain S3 2513 Could not Cal 220 mV Gain S4 2514 Could not Cal 220 V DC Offset 2515...
Page 194 5730A Operators Manual 2544 Could not Cal 2.2 A DCI (Meas 2) 2545 Could not Ext Cal 10 KΩ Std (Meas 1) 2546 Could not Ext Cal 10 KΩ Std (Meas 2) 2547 Could not Ext Cal 10 KΩ Std (Meas 3) 2548 Could not Cal 10 KΩ...
Page 195 Appendices Fault Codes Could not Cal 19 Ω (Meas 1) 2579 Could not Cal 19 Ω (Meas 2) 2580 Could not Ext Cal 1 Ω (0.26V CM Meas) 2581 Could not Ext Cal 1 Ω (Ext Meas) 2582 Could not Ext Cal 1 Ω (0.13V CM Meas) 2583 Could not Ext Cal 1 Ω...
Page 196 5730A Operators Manual 2614 2.2 mA IAC Flat Early Fail 2615 2.2 mA IAC Flat Bad AC Cal Sensor? 2616 2.2 mA IAC Flat Diverge 2617 22 mA IAC Flat Early Fail 2618 22 mA IAC Flat Bad AC Cal Sensor?
Page 197 Appendices Fault Codes Could not Cal 100 M Ω (Meas 2) 2650 2651 Invalid Security Passcode 2652 Passcode Be 1 to 8 Digits 2700-Level Faults: Self Diagnostics (Current) 2700 A7: 8255 Control Word 2701 A7: 8255 Port A Fault 2702 A7: 8255 Port B Fault 2703 A7: 8255 Port C Fault...
Page 198 5730A Operators Manual 2810 A11: +11 V DC Range Fault 2811 A11: -11 V DC Range Fault 2812 A11: +22 V DC Range Fault 2813 A11: -22 V DC Range Fault 2814 A11: 6.5 V Buffered Reference Fault 2815 A11: 6.5 V Reference Fault...
Page 199 Appendices Fault Codes 3116 A15: HV -DC Reference/Error Amp Fault 3117 A14/A15: HV +DC Current Error Amp Fault 3118 A14/A15: HV -DC Current Error Amp Fault 3119 A14/A15: HV +DC Current Abs. Value 3120 A14/A15: HV -DC Current Abs. Value 3122 A14/A15: HV AC 1 KHZ, Preamp Fault (lo) 3123...
Page 200 5730A Operators Manual 3207 5725 ACV VLF (100 Hz) will not Converge 3208 5725 ACV LF (1 kHz) will not Converge 3209 5725 ACV MF (10 kHz) will not Converge 3210 5725 ACV HF (100 kHz) will not Converge 3211...
Page 201 Appendices Fault Codes 3323 A9/A10: 19 MΩ Ratio Fault 2 3324 A9/A10: 100 MΩ Ratio Fault A9/A10: 10 K Ω Check Fault 3325 A9/A10: 19 K Ω Check Fault 3326 A9/A10: 1 K Ω Check Fault 3327 A9/A10: 1.9 K Ω Check Fault 3328 A9/A10: 100 Ω...
Page 202 5730A Operators Manual 3414 A12/A13: Nonlinear Control Loop 2Vrng 3415 A12/A13: nonlinear Control Loop 20Vrng 3416 A12/A13: DAC 15th Bit Fault 3417 A12: DC Sensor Buffer Fault 3418 A12: Sensor Loop/Sq. Root Amp Fault 3419 A12: AC Sensor Buff (2V Range)
Page 203 Appendices Fault Codes 3600-Level Faults: Self Diagnostics (Power Supplies) 3600 +17S Supply Fault 3601 -17S Supply Fault 3602 +15S Supply Fault 3603 -15S Supply Fault 3604 +42S Supply Fault 3605 -42S Supply Fault 3606 LH COM Ground Fault 3607 -5LH Supply Fault 3608 5RLH Supply Fault 3609...
Page 204 5730A Operators Manual 3807 A8: Zero Amp Hi Noise Fault 3808 A8: Zero Amp Hi Offset 3809 A8: Zero Amp Hi Gain Fault 3810 A8: 2.2 V Amp Noise Fault 3811 A8: Zero Amp Offset 3812 A8: 2.2 V Gain Fault...
Page 205 Appendices Fault Codes 3918 A5: 40 DB Output Attenuation Fault 3922 A5/A6: Wideband Initialization Fault 3923 A5: 8255 Was Reset 4000-Level Faults: Analog Sequencing 4000 Bad Sequence ID 4001 Over Nested Subsequences 4002 Bad Sequence Command Code 4003 Bad Reply Size From Inguard 4004 Reply From Inguard Too Small 4005...
Page 206 5730A Operators Manual 4200-Level Faults: Instrument State Manager 4200 Bad Boolean Value Selector 4201 Meaningless Target State Value 4202 Meaningless Actual State Value 4203 Mystery Target/Actual State Difference 4204 Display Brightness Setting Exceeds Limits 4400-Level Faults: General Purpose Utility 4400...
Page 207 Appendices Fault Codes 4800-Level Faults: GPIB 4800 Error opening GPIB Controller 4801 Error setting GPIB Primary Address 4802 Error occurred reading characters from GPIB controller 4803 Error occurred sending characters to the GPIB controller 4804 GPIB DOS Error 4805 GPIB Specified Interface Board is not Active Controller 4806 GPIB No present listening devices 4807...
Page 208 5730A Operators Manual 5000-Level Faults: 52120A Boost System 5000 Error while reading 52120A cal store 5001 Expected a 52120A but it was gone 5002 52120A cal store corrupted 5003 Value out of range of 52120A 5004 Unknown error reported by 52120A...
Page 209: B Ascii And Ieee-488 Bus Codes
Appendix B ASCII and IEEE-488 Bus Codes...
Page 210 5730A Operators Manual FB-01.emf...
Page 211: C Glossary
The frequency range of human hearing; normally 15 Hz - 20,000 Hz. artifact standard An object that produces or embodies a physical quantity to be standardized, for example a Fluke 732B dc Voltage Reference Standard. base units Units in the SI system that are dimensionally independent. All other units are derived from base units.
Page 212 A device used solely to verify the integrity of another standard. For example in the Calibrator, one Fluke RMS sensor continuously monitors the output voltage while a second Fluke RMS sensor confirms the integrity of the first. characterization The development of a table of calibration constants or correction factors for use in correcting the output or reading of an instrument.
Page 213 Appendices Glossary current guard A generator that drives the inner shield of a triaxial cable with a signal of the same amplitude and phase as a Calibrator’s ac current output signal on the center conductor. The current guard shields the Calibrator’s output signal from a capacitive leakage path to ground.
Page 214 5730A Operators Manual ground The voltage reference point in a circuit. Earth ground is a connection through a ground rod or other conductor to the earth, usually accessible through the ground conductor in an ac power receptacle. ground loops Undesirable currents induced when there is more than one chassis ground potential in a system of instruments.
Page 215 Appendices Glossary MTTF (Mean Time to Fail) The time interval in operating hours that can be expected until the first failure of equipment. MTF can be calculated from direct observation or mathematically derived through extrapolation. MTTR (Mean Time to Repair) The average time in hours required to repair failed equipment.
Page 216 5730A Operators Manual random error Any error which varies in an unpredictable manner in absolute value and in sign when measurements of the same value of a quantity are made under effectively identical conditions. range The stated upper end of a measurement device’s span. Usually, however, a measurement device can measure quantities for a specified percentage overrange.
Page 217 Appendices Glossary rf (radio frequency) The frequency range of radio waves; ranging from 150 kHz up to the infrared range. rms (root-mean-square) The value assigned to an ac voltage or current that results in the same power dissipation in a resistance as a dc current or voltage of the same value. rms sensor A device that converts ac voltage to dc voltage with great accuracy.
Page 218 5730A Operators Manual standard A device that is used as an exact value for reference and comparison. standard cell A primary cell that serves as a standard of voltage. The term “standard cell” often refers to a “Weston normal cell”, which is a wet cell with a mercury anode, a cadmium mercury amalgam cathode, and a cadmium sulfate solution as the electrolyte.
Page 219 Appendices Glossary true value Also called legal value, the accepted, consensus, (for example, the correct value of the quantity being measured). uncertainty The maximum difference between the accepted, consensus, or true value and the measured value of a quantity. Uncertainty is normally expressed in units of ppm (parts per million) or as a percentage.
Page 220 5730A Operators Manual C-10...

Fluke 5730A Operator's Manual

Quick Links

Related Manuals for Fluke 5730A

Summary of Contents for Fluke 5730A

Table of Contents
