Ethernet Ports

Port Ethernet Type
MGT Copper Gigabit
Multi-mode Fiber 10 Gigabit (SFP+)
1
2 Multi-mode Fiber 10 Gigabit (SFP+)
3 Multi-mode Fiber 10 Gigabit (SFP+)
4 Multi-mode Fiber 10 Gigabit (SFP+)
Copper Gigabit
5
6 Copper Gigabit
7 Copper Gigabit
8 Copper Gigabit
Copper Gigabit (100 Mbps)
AUX

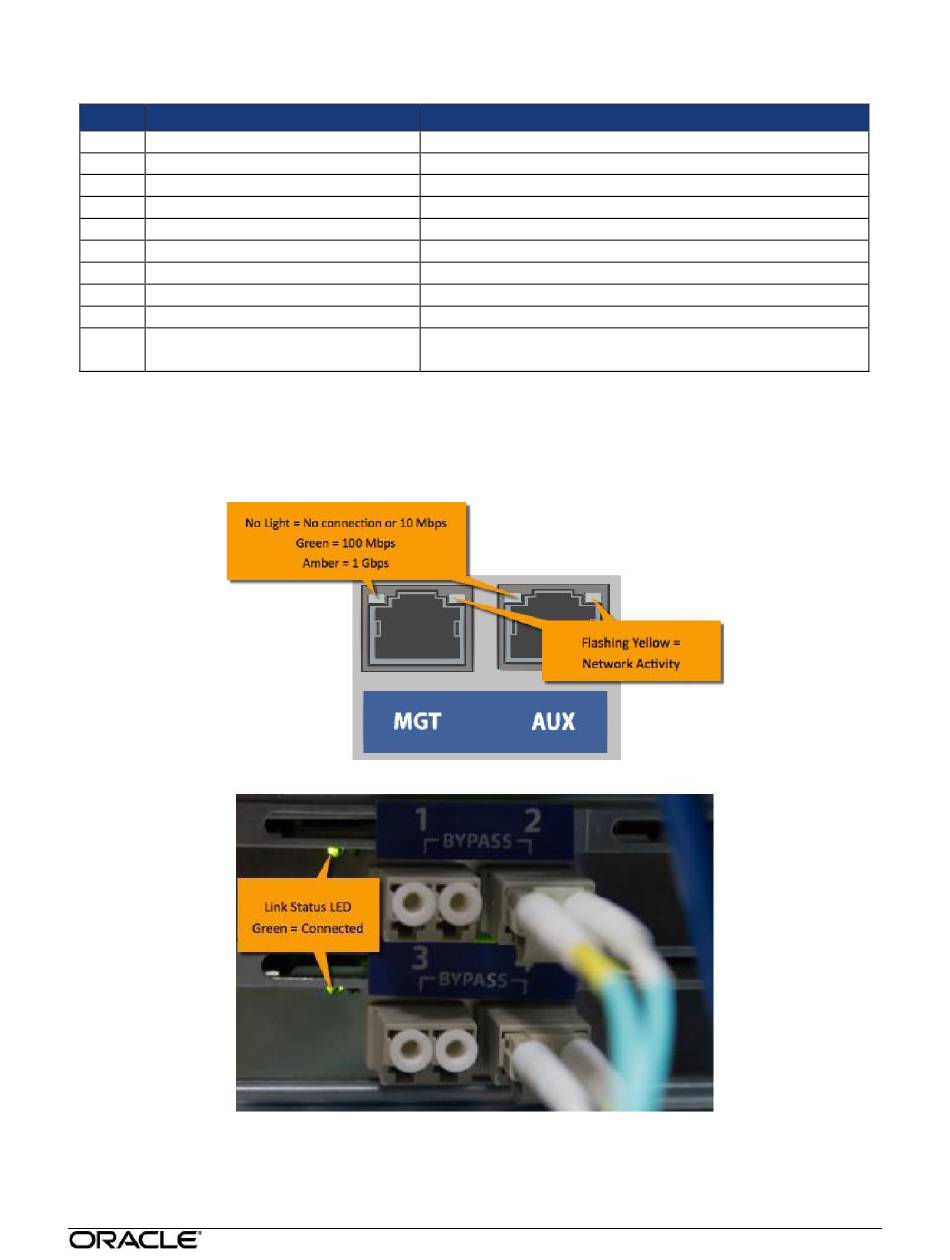

NIC Indicator Codes

Ethernet ports on the rear panel have indicator lights for information on network activity
and link status.
Management port (dedicated – out of band)
User defined; forms a Bypass pair with Port 2
User defined; forms a Bypass pair with Port 1
User defined; forms a Bypass pair with Port 4
User defined; forms a Bypass pair with Port 3
User defined; forms a Bypass pair with Port 6
User defined; forms a Bypass pair with Port 5
User defined; forms a Bypass pair with Port 8
User defined; forms a Bypass pair with Port 7
User defined; used for MGT AUX. May be used as
an untrusted port
Table 1: Ethernet Ports
Figure 3: Management Interfaces
Figure 4: 10 Gigabit Bypass Interface
Description
