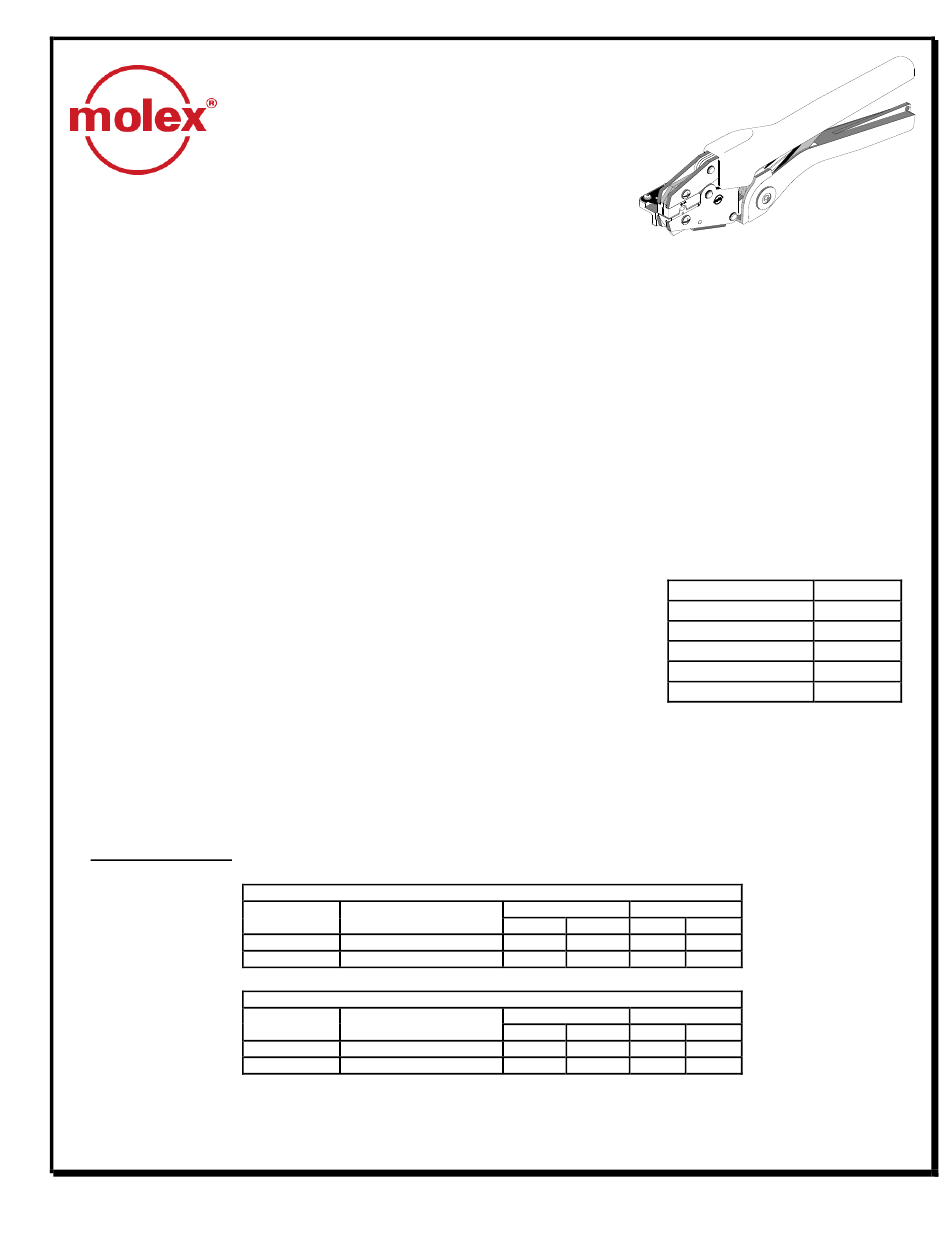

molex RHT 5761 Operating Instruction Sheet And Specifications

RHT5761 Hand Crimp Tool
FEATURES

A full cycle ratcheting hand tool ensures complete crimps

Long handles for comfortable crimping with reduced crimping force

A precision user-friendly terminal locator wire stop holds terminals in the proper crimping
position

Insulation crimp adjustment allows a precise insulation crimp. To meet or exceed the
requirements of UL, CSA and Military Cass II

Single color-coded crimp pocket eliminates the possibility of using the wrong pocket
SCOPE
AviKrimp Male Fully Insulated Quick Disconnect 14-22 AWG.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the
mechanical properties of the crimped connections. The
following charts show the UL specifications for various wire
sizes. The tensile strength is shown in pounds and indicates
the minimum acceptable force to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool
is designed to run. We will be adding to this list and an up to date copy is available on
www.molex.com.
Terminal No.
Terminal No.
Doc No. 64001-2600
Page 1 of 8
Revision: B Revision Date: 09-02-03
Hand Crimp Tool
Operating Instruction Sheet
And Specifications
Part No. 64001-2600
Eng. No. RHT 5761
Wire Size: 18 – 22 AWG
Terminal Eng No. (REF)
19001-0001 AA-5260
19001-0003 AA-5266
Wire Size: 14 – 16 AWG
Terminal Eng No. (REF)
19001-0006 BB-5262
19001-0008 BB-5268
*UL – 310 – Quick Disconnects
0.80 – 0.35 mm²
Wire Strip Length
In mm
0.34 8.73
0.34 8.73
2.00 – 1.30 mm²
Wire Strip Length
In mm
0.34 8.73
0.34 8.73
Release Date: 04-21-03
Wire Size (AWG)
22
20
18
16
14
Insul. Dia. Max.
In mm
0.14 3.56
0.14 3.56
Insul. Dia. Max.
In mm
0.17 4.32
0.17 4.32
UNCONTROLLED COPY
*UL - 310
8
13
20
30
50
