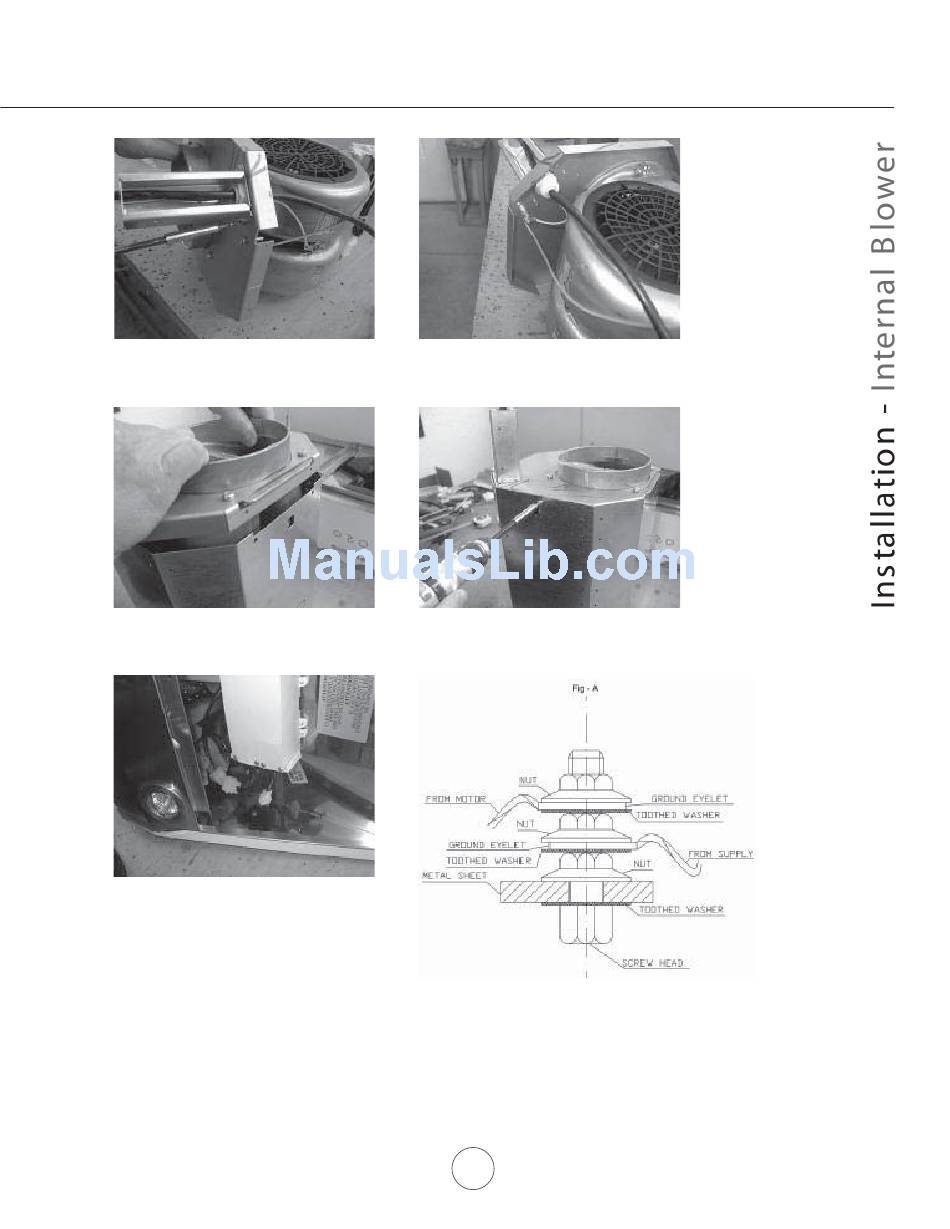

6. Attach junction box to internal flange using
provided 1/2" self tapping screws and 4mm
internal diameter washers.
8. Place blower with attached flange into
motor housing as shown on Fig-A.
10. Att ach other end of capacitor box
connector and junction box connector to
control board box and wiring box connector
inside hood.
7. Attach grounding wires from junction box
and motor to grounding screw as shown.
9. Attach using 1/2" self tapping screws to
secure in place.
Continue to page "11" for hood installation instructions.
For external blower installation please refer to the manual
included with the external blower.
