ATTENTION
The following are intructions for installing internal blower model CBI-600. For instructions on preparing for external
blower model CBE-1000 please turn to page "10". Before installing, verify that motor spins freely.

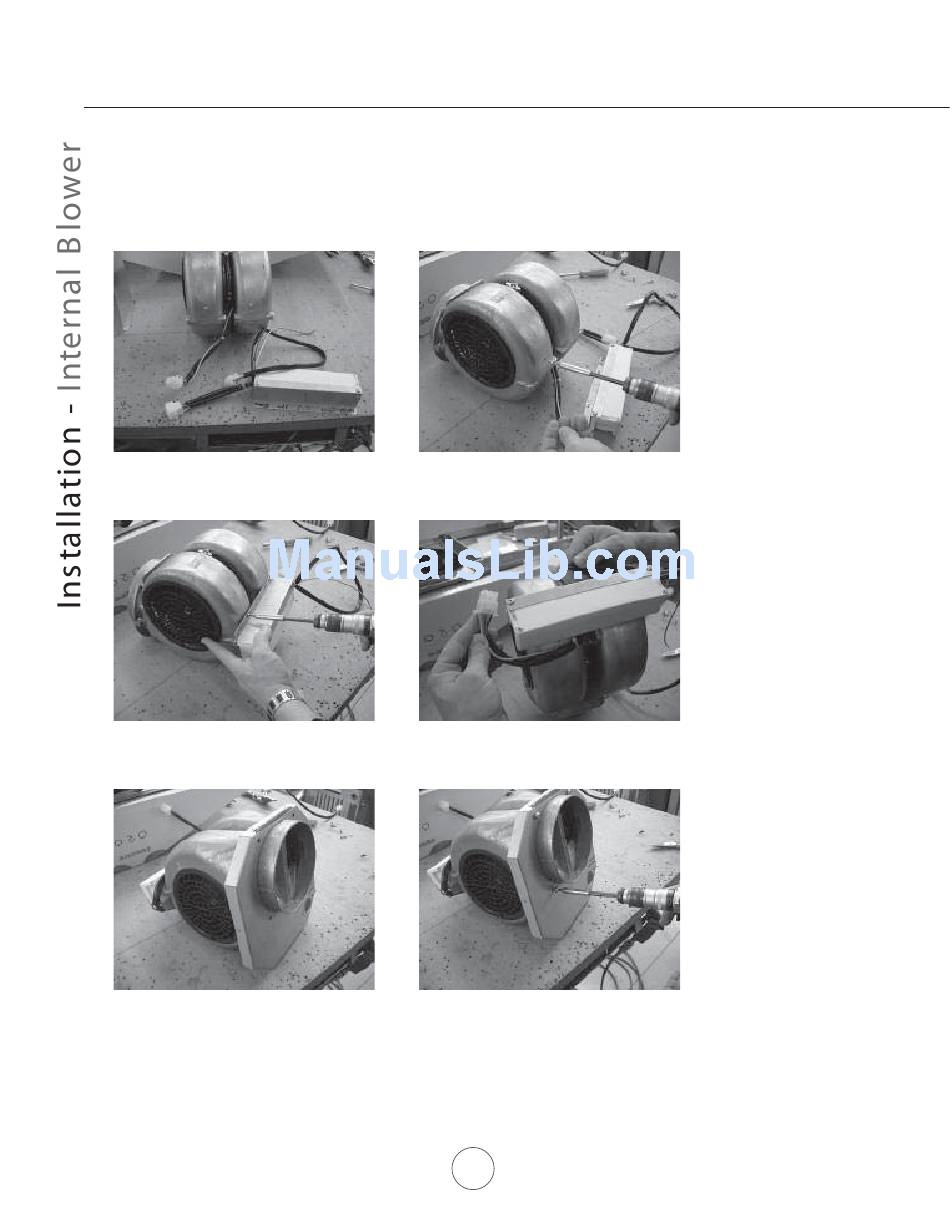

The internal blower kit consists of the blower
and capacitor box with wiring.
2. Att ach capacitor box to blower housing
using the removed screws.
4. P osition internal flange over blower
housing.
1. Remove existing screws from blower
housing.
3. Att ach motor connector to capacitor box
connector.
5. Att ach (4) 1/2" 5x15mm screws and (4)
10mm washers to hold flange to blower
housing.
