Zephyr Trapeze CTP-E 48SX Installation Manual page 14

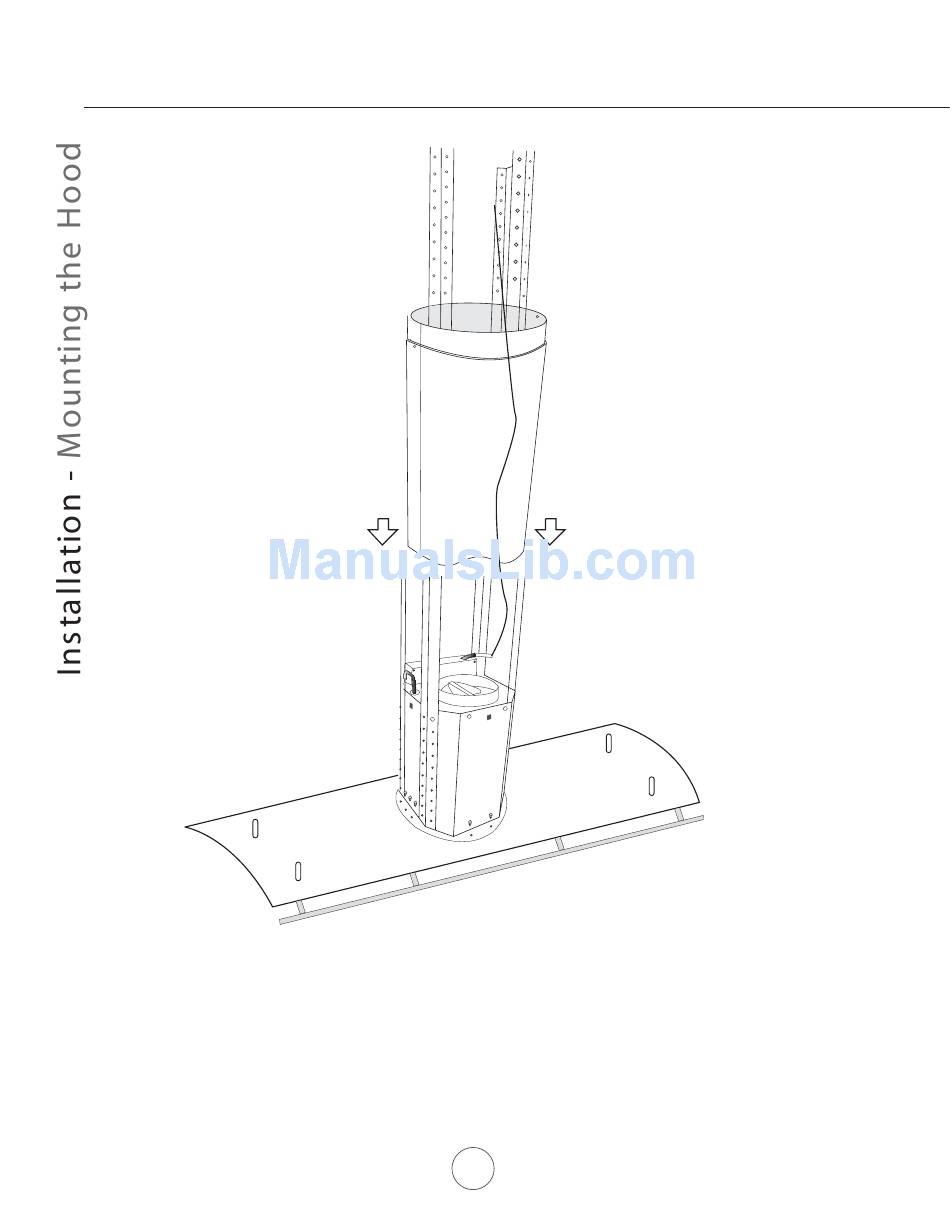

1. Mount motor housing to the range hood b ody using (10) 1/2" self tapping screws.
2. Determine height of hood, measure and select either 27 3/8" or 35 3/8" angle brac
them to the motor housing using (8) 1/2" self tapping screws (2) for each angle bracket.
3. Slide duct covers over motor housing. Make sure bottom duct cover with cut-out is facing the front and back of
the hood.
12
www.zephyronline.com
kets and attach (4) of
