Zephyr Trapeze CTP-E 48SX Installation Manual page 12

ATTENTION

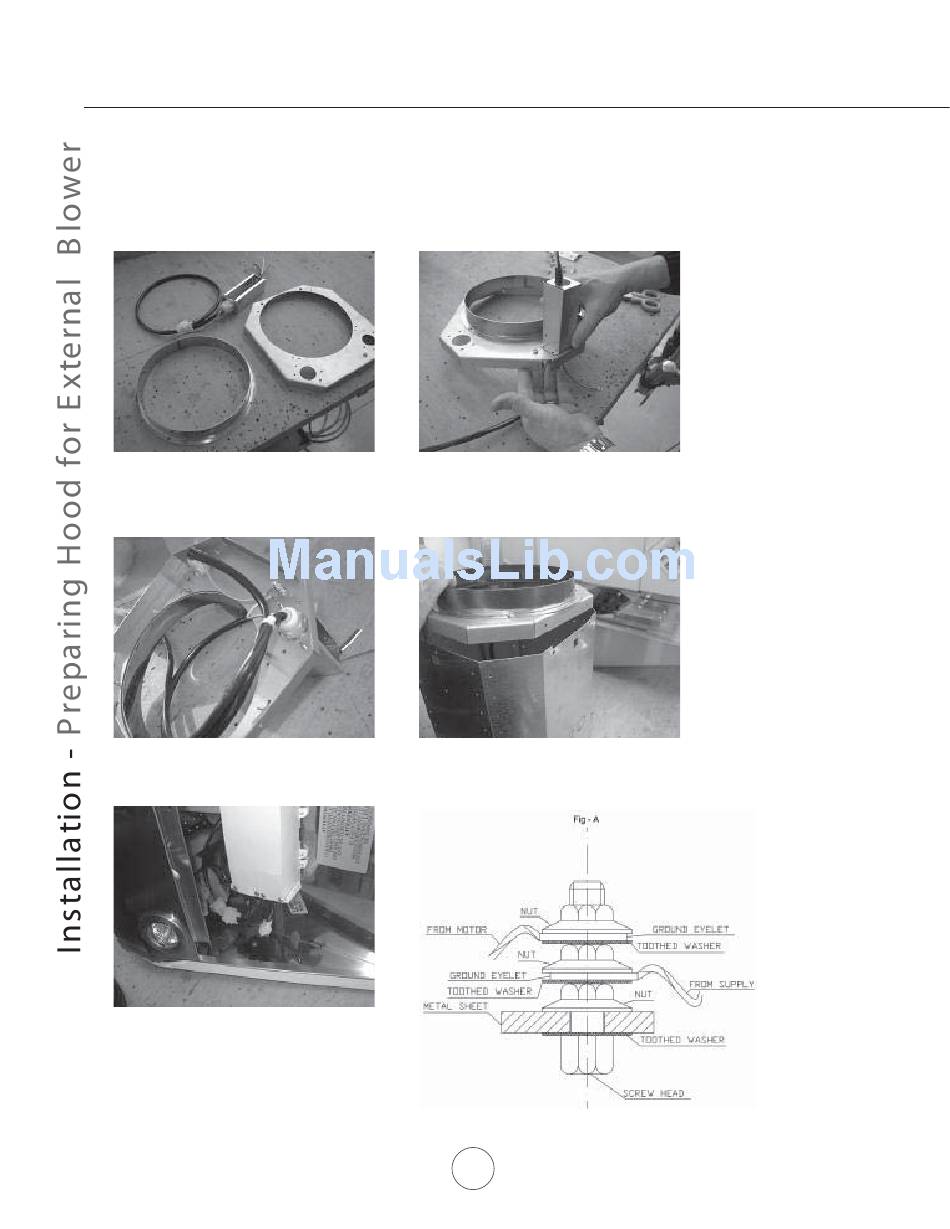

The following are instructions on preparing your hood for installation with external blower model CBE-1000.
For instructions on installing internal blower model CBI-600 please turn to page "8".
The external blower kit consists of an 8"
collar, external flange and external blower
wiring box. The external blower is purchased
separately.
2. Attach grounding wires from external
blower wiring box and junction box to
grounding screw as shown in Fig-A.
4. Attach junction box and external blower
wiring box connectors to control board and
wiring box connectors inside hood.
1. P osition and attach external blower wiring
box and junction box using provided 1/2" self
tapping screws and 4mm internal diameter
washers.
3. Position and attach external flange to
motor housing using provided 1/2" self
tapping screws.
Continue to page "11" for hood
installation instructions.
10
