Zephyr Pisa ZPI-E24AG290 Use, Care And Installation Manual

Hide thumbs Also See for Pisa ZPI-E24AG290:

Advertisement

Quick Links

Pisa
ZPI-E24AG
ZPI-E24AG290
ZPI-E30AG
ZPI-E30AG290
ZPI-E36AG
ZPI-E36AG290
Model number:
Serial Number:
NOV17.0701 © Zephyr Ventilation LLC.
www.zephyronline.com
ZPI-E24AW
ZPI-E24AW290
ZPI-E30AW
ZPI-E30AW290

Advertisement

Table of Contents
loading

Summary of Contents for Zephyr Pisa ZPI-E24AG290

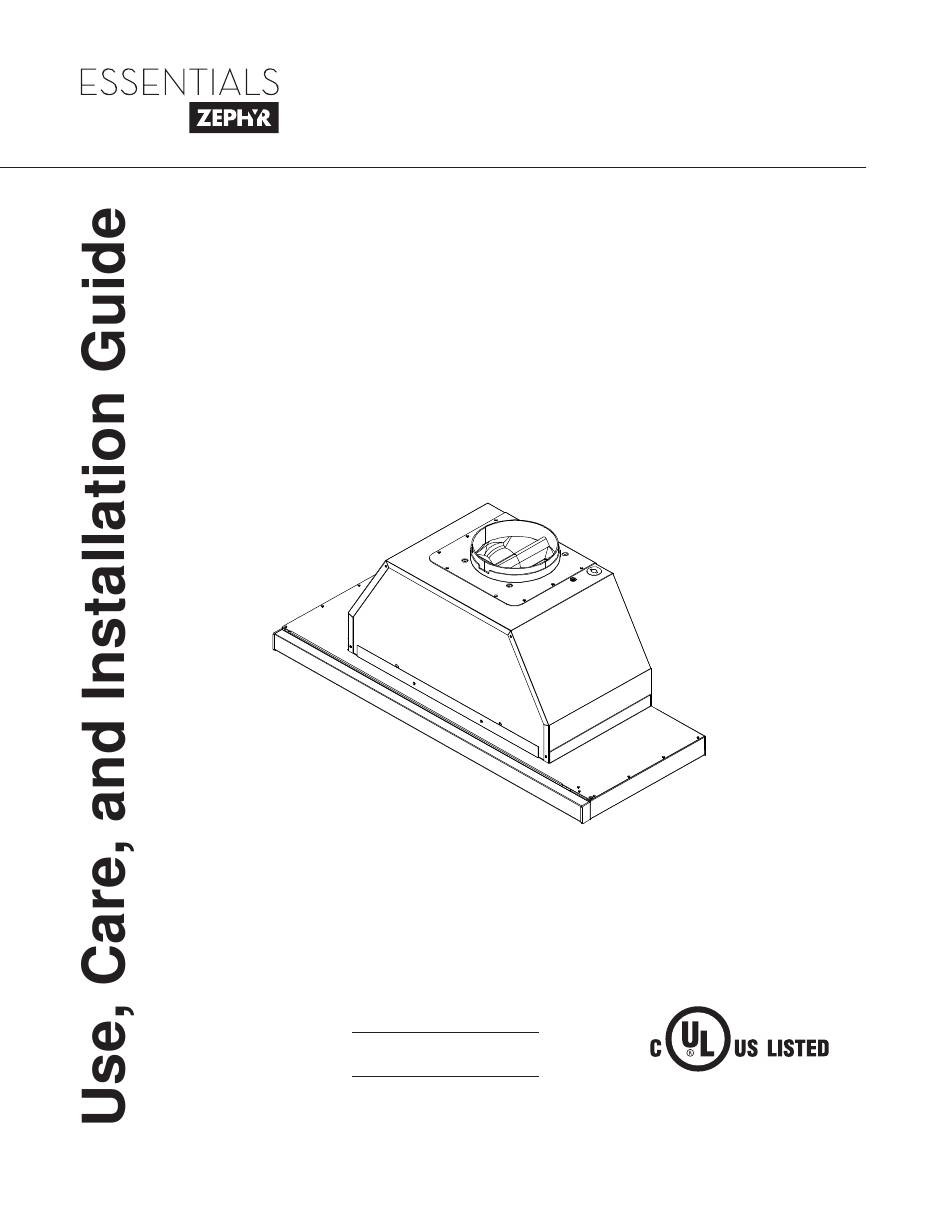

  • Page 1 Pisa ZPI-E24AG ZPI-E24AW ZPI-E24AG290 ZPI-E24AW290 ZPI-E30AG ZPI-E30AW ZPI-E30AG290 ZPI-E30AW290 ZPI-E36AG ZPI-E36AG290 Model number: Serial Number: NOV17.0701 © Zephyr Ventilation LLC.
  • Page 2 www.zephyronline.com...
  • Page 3 SAFETY NOTICE ................LIST OF MATERIALS ..............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ......................Preparing the Cabinet ..........Horizontal Ducting Conversion ......Installing the Hood 11 - 13 ............Recirculation Kit ............FEATURES & CONTROLS Slide Controls ..............
  • Page 4 www.zephyronline.com READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
  • Page 5: Operation

    WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. CAUTION attics, crawl spaces or garages. Hood not intended for installation over an outdoor grill. OPERATION and loose clothing. The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product.
  • Page 6: Hardware Package Contents

    www.zephyronline.com PARTS SUPPLIED (1) 6” round damper (pre-installed) (1) hood body with sliding glass (2) upper installation brackets (2) lower installation brackets (24” model only) (1) filler panel (2) halogen lights, GU-10 50W (1) mesh filter (1) hardware package HARDWARE PACKAGE CONTENTS (4) M3.5x10 (4) M4 x 16mm (2) M4 x 1”...
  • Page 7 Equivalent number Equivalent number Duct pieces Duct pieces T otal length x used length x used T otal 3- 1/ 4” x 10” 1 Ft. 3- 1/ 4” x 10” 5 Ft. Rect., Rect. to straight 6” round transition 6”, 7”, 8”, 10” 1 Ft.
  • Page 8 www.zephyronline.com Mounting height from top of cooking surface to bottom of hood should be no less than 24” and no more than 32”. It is important to install the hood at the proper mounting height. Hoods mounted too low could mounted too high will be hard to reach and will If available, also refer to range manufacturer’s height clearance requirements and recommended...
  • Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. Use single wall rigid Metal ductwork only. Ducting Options Example roof pitch w/ flashing &...
  • Page 10 www.zephyronline.com 3/16” (24”) 3/16” (30”) 3/16” (36”) 9/16” 7/8”(24”), 7/8”(30”), 7/8”(36”) FRONT 6” Ø BACK ” 13/16” 1/8 ” 3/8” - 1/8” 2 1/4"* *adjustable rear 15 16” filler panel ” - 18- ” 15/16 closed open SIDE...
  • Page 11 Fig.1 7” ” 7” 3/16” 7/8” * Dimension used for rear ducting option Fig.2 front edge glass handle 1. Determine and mark center line on wall and cabinet bottom with a pencil. 2. If the cabinet bottom is recessed, wood blocking must be installed to ensure proper within cabinet bottom.
  • Page 12 www.zephyronline.com 6” ROUND VERTICAL TO HORIZONTAL DUCTING CONVERSION disconnect blower plug located toward the right side back of hood attaching blower plate to hood body. interior of hood body. reposition blower to hood body so blower collar protrudes from back of hood body. Re-install blower plate to hood Re-connect blower plug.
  • Page 13 WARNING: Electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards. This range hood must be properly grounded. Turn off electrical power at service entrance before wiring. Fig.3 Fig.4 the opening located in the bottom of the cabinet, Fig.3. of the hood body which will temporarily hold the hood in Make sure opening matches the dimensions on page 9, place, Fig.4.
  • Page 14 www.zephyronline.com Fig.7 Fig.8 24” Models Only 24” Models Only M4x8 screw into each lower installation bracket. The captive nuts of each upper installation bracket. Tighten position of this screw is adjustable to accomodate various screws to adjust the height of the range hood until there cabinet bottom thicknesses, Fig.7.
  • Page 15 Fig.9 with aluminum duct tape. If using hood in ductless recirculating mode turn to page 14. using a utility knife or heavy-duty scissors. with local requirements and codes, purchase and install appropriate connector if necessary. Make sure no packing material is inside hood. Power up hood check for leaks around duct tape and verify all functions.
  • Page 16 www.zephyronline.com Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust within the home. We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct is not possible should you recourse to converting the hood into a recirculating hood.
  • Page 17 Blower On/Off Speed Selection Lights Off/Dim/Bright I I I BLOWER ON/OFF/SPEED SELECTION 0 is off, I is low speed, II is medium speed and III is high speed. LIGHTS OFF/DIM/BRIGHT 0 is off, I is dim, and II is bright. NOTE: Blower and lights will automatically shut off when the glass is closed and turn back on when the glass is opened.
  • Page 18: Surface Maintenance

    www.zephyronline.com SURFACE MAINTENANCE: Do not use corrosive detergents, abrasive detergents or oven cleaners. Do not use any product containing chlorine bleach or any product containing chloride. Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface. Cleaning Stainless Steel direction of the stainless steel grain.
  • Page 19: Replacing Light Bulbs

    Remove by turning bulb counter-clockwise. Note: Bulb does not unscrew; it turns 60 degrees, stops and falls out. the bulb or use a rubber/latex glove to grip the bulb and turn counter clockwise. For Zephyr part numbers please turn to page 20 of the manual.
  • Page 20 www.zephyronline.com VOLTS...
  • Page 21 TROUBLESHOOTING PROCEDURES FOR ZPI Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
  • Page 22 www.zephyronline.com DESCRIPTION PART# Replacement Parts Aluminum Mesh Filter 50200054 Optional Accessories Recirculatiing Kit ZRC-00PI To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368...
  • Page 23 Zephyr Ventilation, LLC (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or workmanship as follows:...
  • Page 24: Product Registration

    PRODUCT REGISTRATION Congratulations on your Zephyr range hood purchase! Please take a moment to register your new range hood at www.zephyronline.com/registration IT’S IMPORTANT Prompt registration helps in more ways than one. Ensures warranty coverage should you need service. Ownership verification for insurance purposes.
