CEILING FAN
Box-D
USER'S MANUAL
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Box-D Series and is the answer not in the manual?

Questions and answers

Related Manuals for BLAUBERG Ventilatoren Box-D Series

Summary of Contents for BLAUBERG Ventilatoren Box-D Series

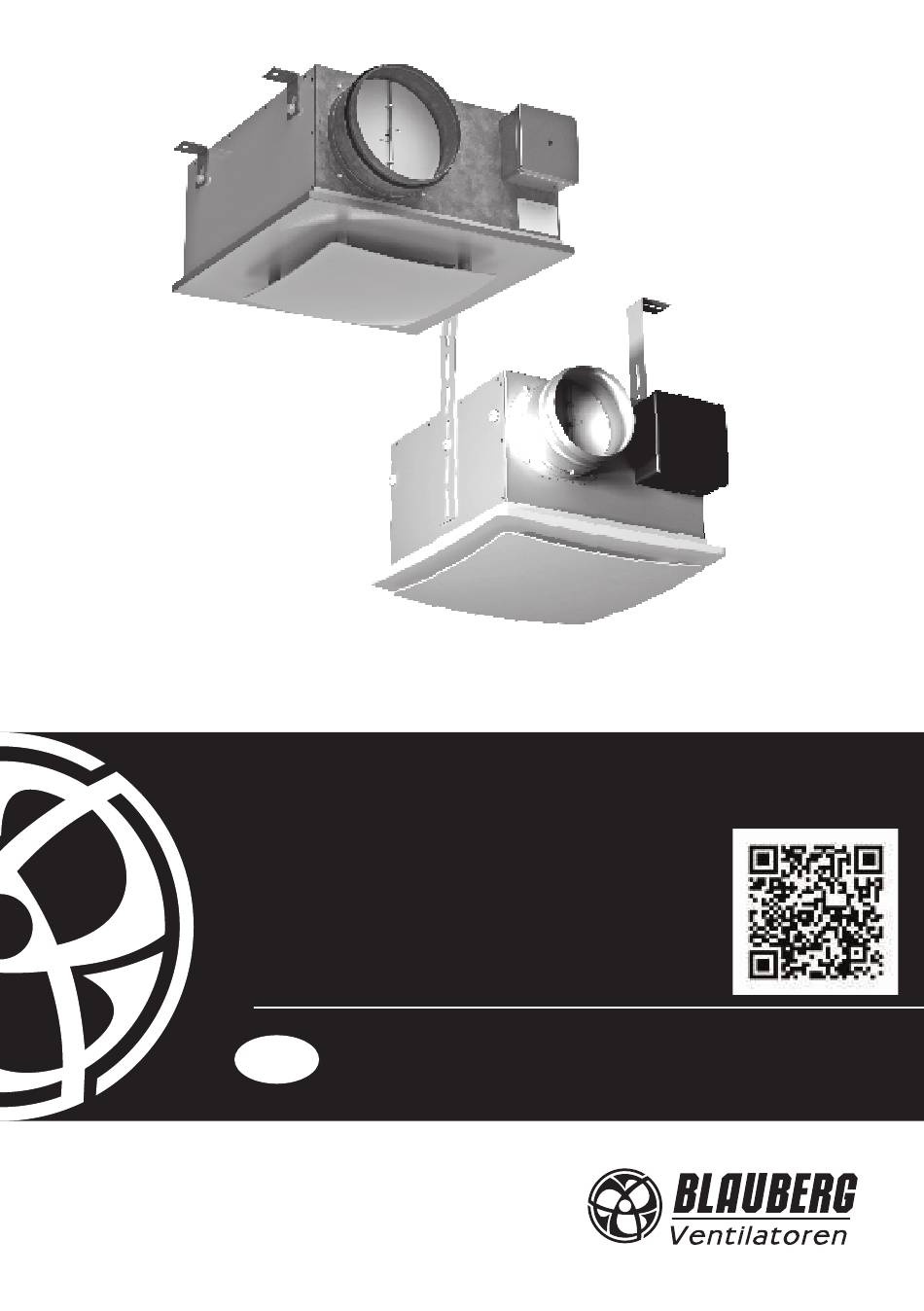

  • Page 1 CEILING FAN Box-D USER'S MANUAL...

  • Page 2: Table Of Contents

    Box-D www.blaubergventilatoren.de SAFETY REQUIREMENTS Disconnect the fan from power mains prior to any installation, setup, maintenance and repair operations. The fan must be connected by an expert qualified for unassisted operations with electrical installations up to 1,000 V after being made familiar with the present technical certificate. Prior to installation check for any visible damage to the impeller, casing and grille.

  • Page 3: Delivery Set Р

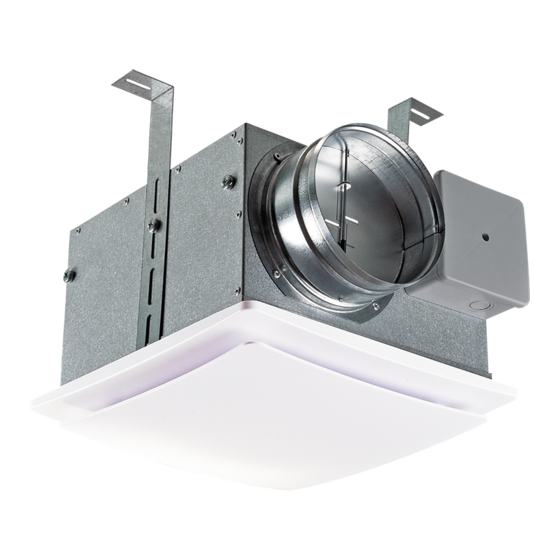

    Box-D www.blaubergventilatoren.de PURPOSE The Box-D ceiling fan in a metal casing with 100, 125, 150 and 160 mm exhaust outlets (hereinafter "Fan") is intended for ventilation systems of industrial or residential buildings, swimming pools, blocks of flats, offices, hospitals, restaurants and other spaces heated during the winter. The air discharged by the fan must not contain dust, solids, sticky substances and fibrous materials.
  • Page 4 Box-D www.blaubergventilatoren.de TECHNICAL DATA The names of the fans, their parameters and connecting dimensions are given in tables 1, 2. Figure 1.1 Figure 1.2 Box-D 100 L Box-D 100 Box-D 125 L Box-D 125 Box-D 150 Box-D 160 Fan type Voltage [V] 1~220-240 1~220-240...
  • Page 5 Box-D www.blaubergventilatoren.de FAN DESIGN The Box-D ceiling fan (Fig. 2) comprises of casing 1 with lid 2. The casing has an exhaust outlet 3 with a check valve which prevents back flow of air while the fan is off. Terminal box 4 containing the terminals for connecting the fan to power mains is mounted to the casing.
  • Page 6 Box-D www.blaubergventilatoren.de INSTALLATION AND OPERATION INSTRUCTIONS The fan is installed between the floor slab and the suspended ceiling by means of two mounting brackets. The distance between the bracket attachment point and the suspended ceiling must be within 165 - 390 mm. The fan installation steps are given in Fig.
  • Page 7 Box-D www.blaubergventilatoren.de Box-D 100 L, Box-D 100 Box-D 125 L, Box-D 125 280 mm Figure 5...
  • Page 8 Box-D www.blaubergventilatoren.de Box-D 150, Box-D 160 250 mm 403,5 mm Figure 6...

  • Page 9: Connection To Power Mains Р

    Box-D www.blaubergventilatoren.de CONNECTION TO POWER MAINS Disconnect the damper from the power supply (electric mains) prior to any work on the unit. Power mains connection shall only be performed by a qualified electrician. The nominal electrical parameters of the fan are given on the manufacturer's label. Any tampering with the internal connections is prohibited and will void the warranty.
  • Page 10 Box-D www.blaubergventilatoren.de The electrical connections are terminated on the terminal block located inside the fan casing in accordance with the Wiring Diagram and the terminal designations (Fig. 7). The terminal designation diagram is given on a label inside the terminal box. ~220-240 V 50/60 Hz Figure 7...

  • Page 11: Technical Maintenance Р

    Box-D www.blaubergventilatoren.de TECHNICAL MAINTENANCE The technical maintenance of the fan includes periodic cleaning of the fan surfaces from dust and dirt. The filter must be replaced on a need-to-do basis, but at least every 6 months. The impeller cleaning and filter replacement steps are given in Fig. 9. The impeller blades must be thoroughly cleaned from dust and dirt every 6 months.

  • Page 12: Storage Regulations Р

    Box-D www.blaubergventilatoren.de The unit is not intended for operation in environments with high concentrations of highly flammable substances or vapours such as alcohol, petrol, insecticides etc. Do not close or block the inlet and outlet openings of the unit to ensure optimum air flow. Do not sit on the unit or put any objects on top of it.
  • Page 13 Box-D www.blaubergventilatoren.de The warranty is exclusively limited to the defects of workmanship. Any and all defects and malfunctions including mechanical damage caused by physical contact in the course of operation or natural wear and tear shall not be deemed warranty cases.

  • Page 14: Acceptance Certificate Р

    Box-D www.blaubergventilatoren.de ACCEPTANCE CERTIFICATE СВИДЕТЕЛЬСТВО О ПРИЕМКЕ CEILING FAN Unit Type Box-D ____________ Model Serial Number Manufacture Date is compliant with the technical specifications and is hereby declared ready for service. We hereby declare that the product complies with the essential protection requirements of Electromagnetic Council Directive2014/30/EU and Low Voltage Directive 2014/35/EU and CE-marking Directive 93/68/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility.

  • Page 15: Warranty Card

    Box-D www.blaubergventilatoren.de WARRANTY CARD WARRANTY CARD Unit Type CEILING FAN Model Box-D _________ Serial Number Purchase Date Purchase Date Warranty Period Seller's Stamp Seller...
  • Page 16 www.blaubergventilatoren.de...
