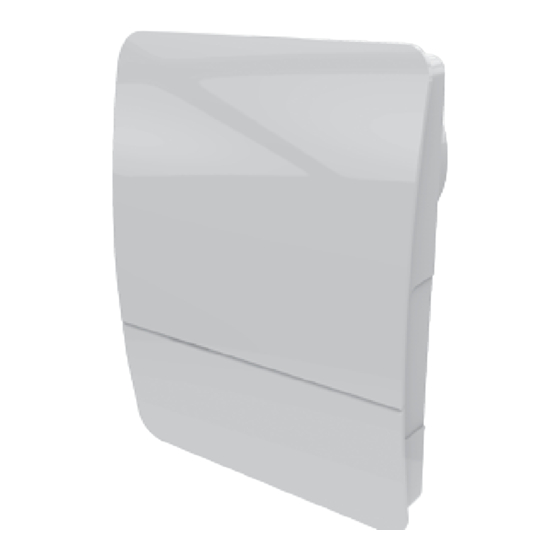

- Page 1 AXIAL FAN Cabrio Base 100 USER’S MANUAL...
-
Page 2: Table Of Contents
The manual contains information about purpose, technical details, operating principle, design, and installation of the Cabrio Base 100 unit and all its modifications. Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country. - Page 3 READ THE USER’S MANUAL CAREFULLY BEFORE PROCEEDING WITH INSTALLATION WORKS. COMPLIANCE WITH THE MANUAL REQUIREMENTS ENSURES RELIABLE OPERATION AND LONG SERVICE LIFE OF THE UNIT. KEEP THE USER’S MANUAL AVAILABLE AS LONG AS YOU USE THE UNIT. YOU MAY NEED TO REREAD THE INFORMATION ON THE PRODUCT SERVICING. This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision...
- Page 4 Children shall not play with the appliance. Precautions must be taken to avoid the back-flow of gases into the room from the open flue of gas or other fuel-burning appliances. Connection to the mains must be made through a disconnecting device, which is integrated into the fixed wiring system in accordance with the wiring rules for design of electrical units, and has a contact separation in all poles that allows for full disconnection under...
- Page 5 applicable local and national construction, electrical, and technical norms and standards must be observed when installing and operating the unit. Disconnect the unit from the power supply prior to any connection, servicing, maintenance, and repair operations. Only qualified electricians with a work permit for electrical units up to 1000 V are allowed for installation.
- Page 6 sticky substances, or fibrous materials. Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it. The information in this user’s manual was correct at the time of the document’s preparation.
-
Page 7: Delivery Set
DELIVERY SET - 1 pc. Screws with dowels - 4 pcs. Plastic screwdriver - 1 pc. (only for the models with a timer) User’s manual - 1 pc. Packing box - 1 pc. BRIEF DESCRIPTION The product described herein is an axial fan for exhaust ventilation of small to medium-sized premises heated during winter. The fan is designed for connection to 100 mm air ducts. -
Page 8: Designation Key
DESIGNATION KEY Cabrio Base V2 100 Extra options: T : turn-on delay timer, turn-off delay timer and interval timer H : humidity sensor, turn-on and turn-off delay timer Exhaust spigot diameter [mm] Base : single-speed motor Base V2 : two-speed motor MOUNTING The fan is designed for wall mounting and connection to a ventilation shaft or a round air duct of a matching diameter (Fig. -
Page 9: Fan Setup
FAN SETUP : to adjust the humidity set point turn the control knob H clockwise to increase and counter-clockwise to decrease the humidity sensor set point, adjustable from 60% up to 90%. : turning of the interval timer on and its adjustment is performed with the potentiometer T . -
Page 10: Maintanance
MAINTANANCE The fan maintenance periodicity is at least once per 6 months. Maintenance steps: • Cut off power supply to the fan and make that the power is disconnected (Fig. 17). • Take off the front panel and clean the fan with a soft dry cloth or a brush (Fig. 18). •... -
Page 11: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/ EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 12 components caused by the user. • Redesign or engineering changes to the unit. • Replacement and use of any assemblies, parts and components not approved by the manufacturer. • Unit misuse. • Violation of the unit installation regulations by the user. •...
- Page 13 ø99...
- Page 15 Cabrio Base 100 Cabrio Base 100 T Fan does not run Activation of the interval S switch is ON timer (6/12/24 hours) Activation of the turn-on Fan runs delay timer for 60 seconds Activation of the turn-off delay timer (2…30 minutes)
- Page 16 Cabrio Base V2 100 T Off 6/12/24 hours Interval timer Fan runs with Fan does not run low speed Activation of the interval S switch is ON S switch is ON timer (6/12/24 hours) Activation of the turn-on delay Activation of the turn-on Fan runs with timer for 60 seconds delay timer for 60 seconds...
- Page 17 Cabrio Base 100 H Fan does not run S switch is ON Activation of the turn-on delay timer for 60 seconds Switch S is OFF during Humidity is above countdown of the turn-on set point delay timer Fan runs S switch is OFF...
- Page 18 Cabrio Base V2 100 H Fan does not run S switch is ON Activation of the turn-on delay timer for 60 seconds Switch S is OFF during Humidity is above countdown of the turn-on set point delay timer Fan runs with low speed S switch is OFF Fan runs with...
- Page 23 Quality Inspector’s Stamp Seller (name and stamp of the seller) Manufacture Date Purchase Date...
- Page 24 Cabrio _____________________________________ www.blaubergventilatoren.de B164EN-05 Cabrio Base 100...
