BLAUBERG Ventilatoren Iso Box-F 100 User Manual

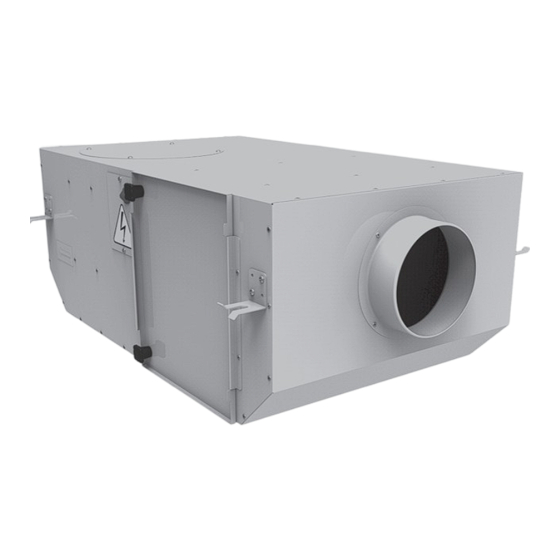

Sound-insulated centrifugal filter fan
Hide thumbs Also See for Iso Box-F 100:
Table of Contents

Advertisement

Quick Links

Download this manual

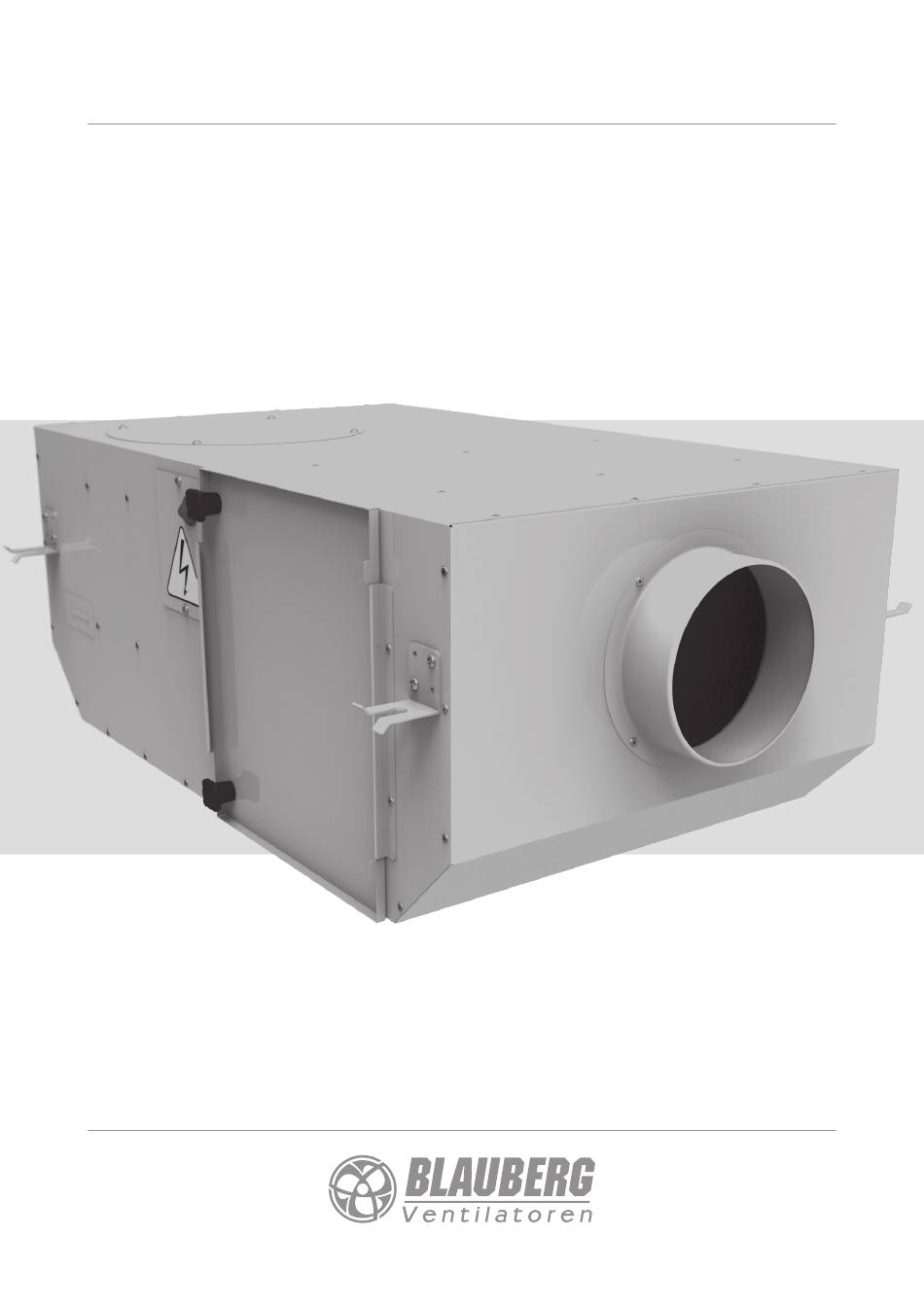

USER'S MANUAL
Iso Box-F 100
Iso Box-F 150
Iso Box-F 150 L
Iso Box-F 200
Iso Box-R 100
Iso Box-R 150
Iso Box-R 150 L
Iso Box-R 200
Sound-insulated
centrifugal filter fan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Iso Box-F 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BLAUBERG Ventilatoren Iso Box-F 100

Summary of Contents for BLAUBERG Ventilatoren Iso Box-F 100

  • Page 1 USER’S MANUAL Iso Box-F 100 Iso Box-R 100 Iso Box-F 150 Iso Box-R 150 Iso Box-F 150 L Iso Box-R 150 L Iso Box-F 200 Iso Box-R 200 Sound-insulated centrifugal filter fan...

  • Page 2: Table Of Contents

    Iso Box-F(R) CONTENTS Safety requirements ............................2 Purpose ..................................4 Delivery set ................................4 Designation key ..............................4 Technical data ..............................4 Unit design and operating logic ....................... 7 Mounting and set-up ............................8 Connection to power mains and control ................... 9 Technical maintenance ..........................
  • Page 3 • Do not change the power cable length at your own discretion. • Do not bend the power cable. • Unpack the unit with care. • Avoid damaging the power cable. • Do not put any foreign objects on the power cable.

  • Page 4: Purpose

    Iso Box-F(R) PURPOSE The fan is designed for ventilation of domestic, public and industrial premises with high requirements to the noise level and with limited space for mounting. The fan is intended for mounting into a system of round air ducts. The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafés, conference halls and other utility and public spaces.
  • Page 5 OVERALL DIMENSIONS OF THE UNIT, MM Iso Box-F Iso Box-R Model Model Iso Box-F 100 100 705 250 415 805 508 650 458 Iso Box-R 100 100 415 250 335 515 428 360 378 Iso Box-F 150 L 150 705 250 415 805 508 650 458...
  • Page 6 Iso Box-F(R) ISO BOX-F V2 TECHNICAL DATA Parameters Fan speed Voltage [V] 1~ 230 Power [W] Current [A] 0.15 0.19 0.15 0.19 0.15 0.19 0.19 0.23 0.18 0.22 0.18 0.21 0.41 0.55 0.41 0.55 0.38 0.54 0.47 0.59 0.45 0.57 0.43 0.55 Maximum air capacity [m...

  • Page 7: Unit Design And Operating Logic

    UNIT DESIGN AND OPERATING LOGIC The device is a sound-insulated centrifugal fan. The fan casing is made of galvanized sheet steel using heat- and sound-insulation material. The round connecting spigots are rubber sealed. The fan is equipped with a two-pole AC motor with an external rotor and an impeller with backward curved blades. The motor has an integrated overheating protection with an automatic restart.

  • Page 8: Mounting And Set-Up

    Iso Box-F(R) MOUNTING AND SET-UP The fan is suspended to the mounting surface through the threaded rod fixed inside the expansion anchor. The fan is intended for mounting to round air ducts. The fans are installed between the air ducts. The casing is equipped with fixing brackets for easier installation of the fan.

  • Page 9: Connection To Power Mains And Control

    CONNECTION TO POWER MAINS AND CONTROL DISCONNECT THE UNIT FROM POWER MAINS PRIOR TO ANY OPERATIONS. THE FAN MUST BE CONNECTED TO POWER MAINS BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. ANY INTERNAL CONNECTION MODIFICATIONS ARE NOT ALLOWED AND RESULT IN WARRANTY LOSS.

  • Page 10: Technical Maintenance

    Iso Box-F(R) TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS. Maintenance operations of the unit are required 3-4 times per year. Technical maintenance includes regular cleaning of the unit and periodic cleaning of filters. 1. Filter maintenance (3-4 times per year) – only for Iso Box-F. Dirty filters increase air resistance.

  • Page 11: Troubleshooting

    TROUBLESHOOTING Problem Possible reasons Troubleshooting Make sure the power supply line is connected correctly, otherwise No power supply. troubleshoot a connection error. The fan(s) do(es) not get started. Jammed motor. Turn off the fan. Troubleshoot the motor jamming. Restart the fan. Automatic circuit breaker tripping following the fan High current consumption due to short circuit in power line.

  • Page 12: Acceptance Certificate

    Iso Box-F(R) ACCEPTANCE CERTIFICATE Unit Type Sound-insulated centrifugal filter fan Model Iso Box- ______________________________________ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 14 Iso Box-F(R) www.blaubergventilatoren.de...
  • Page 16 IsoBox_F(R)_v.2(0)_EN...

This manual is also suitable for:

Iso box-f 150Iso box-f 150 lIso box-f 200Iso box-r 100Iso box-r 150Iso box-r 150 l ... Show all
