- Page 1 Centrifugal Ceiling extraCt fan Blaultra USER’S MANUAL...
-
Page 2: Table Of Contents
Blaultra www.blaubergventilation.com.au CONTENTS Safety requirements ..................................3 Purpose ........................................ 5 Delivery set ......................................5 Technical data ....................................6 Design and functioning ................................7 Mounting and set-up .................................. 8 Connection to power mains ..............................10 Technical maintenance ................................11 Storage and transportation regulations .......................... 11 Manufacturer’s warranty ................................ -
Page 3: Safety Requirements
Blaultra www.blaubergventilation.com.au SAFETY REQUIREMENTS All user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and technical norms and standards must be observed when installing and operating the unit. Disconnect the unit from the power supply prior to any connection, servicing, maintenance, and repair operations. - Page 4 Blaultra www.blaubergventilation.com.au The connection to the supply mains must be made through a means of disconnection, which is incorporated in the fixed wiring in accordance with the wiring rules, and has a contact separation in all poles that allows for full disconnection under overvoltage category III conditions.
-
Page 5: Purpose

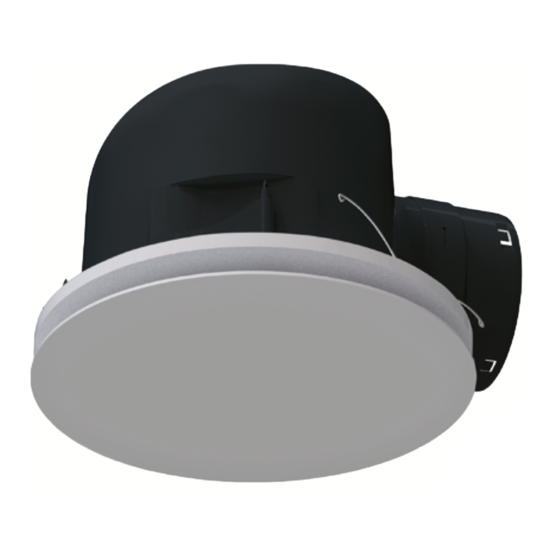

Blaultra www.blaubergventilation.com.au PURPOSE The centrifugal ceiling extract fan BLAULTRA is designed for extract ventilation of small to medium-sized premises. THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE TRAINING. -
Page 6: Technical Data
Blaultra www.blaubergventilation.com.au TECHNICAL DATA The centrifugal ceiling extract fan is designed for indoor application with the ambient temperature ranging from +1 °C up to +45 °C. The unit is rated as a Class I electrical appliance. Ingress protection rating against access to hazardous parts and water ingress is IPX4. The unit design is constantly being improved, thus some models may be slightly different from those described in this manual. -
Page 7: Design And Functioning
Blaultra www.blaubergventilation.com.au TECHNICAL DATA PARAMETER BLAULTRA Frequency [Hz] Voltage [V] 1 ~ 220-240 Rated fan power [W] RPM [min 1085 Current [A] 0.25 Max. air flow [m Max. air flow [l/s] Specific fan power (SFP) [W/l/s] 0.43 Sound pressure level at 3 m distance [dBA] Weight [kg] 4.13 SEC class... -
Page 8: Mounting And Set-Up
Blaultra www.blaubergventilation.com.au MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. The fan is a component part and is not designed for stand-alone operation. The fan is designed for ceiling mounting with fastening to the ceiling surface using removable rotary clamping brackets on the fan casing. The fan installation location must comply with local building codes for this type of product. - Page 9 Blaultra www.blaubergventilation.com.au MOUNTING SEQUENCE 1. Use the template to mark the mounting 2. The flexible air duct is pushed through 3. Before installation, it is required to location for the fan and make a hole in the hole from behind the ceiling, from loosen the self-tapping screws on the the ceiling Ø...
-
Page 10: Connection To Power Mains
Blaultra www.blaubergventilation.com.au CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. -
Page 11: Technical Maintenance
Blaultra www.blaubergventilation.com.au TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! ENSURE THAT THE UNIT IS SWITCHED OFF FROM THE SUPPLY MAINS BEFORE REMOVING THE GUARD. The fan maintenance includes regular cleaning of the surfaces of dust and dirt. Replace the filter as required, but at least every 6 months. The impeller cleaning is shown below. -
Page 12: Manufacturer's Warranty
Blaultra www.blaubergventilation.com.au MANUFACTURER’S WARRANTY Blauberg Warranty: • This warranty is given by Blauberg Australasia Pty Ltd, with an office at Unit 5, 45A Eastern Creek Drive, Eastern Creek, New South Wales 2766, Australia. Phone 1300 475-504. • From the date of purchase, the original purchaser is entitled to free replacement parts, or a new unit for a period of two years from the date of purchase. - Page 13 Blaultra www.blaubergventilation.com.au...
- Page 14 Blaultra www.blaubergventilation.com.au...
-
Page 15: Certificate Of Acceptance
Blaultra www.blaubergventilation.com.au CERTIFICATE OF ACCEPTANCE Unit Type Centrifugal ceiling extract fan Model BLAULTRA Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 16 www.blaubergventilation.com.au Blauberg_Australasia_219EN-01...
