BLAUBERG Ventilatoren Box User Manual

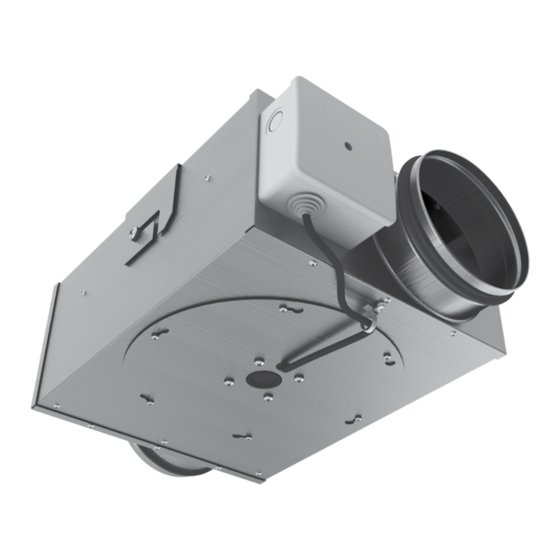

Inline centrifugal fan
Hide thumbs Also See for Box:
Table of Contents

Advertisement

Quick Links

Download this manual
InlIne centrIfugal fan
Box
Box-R
EN
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Box and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BLAUBERG Ventilatoren Box

Summary of Contents for BLAUBERG Ventilatoren Box

  • Page 1 InlIne centrIfugal fan Box-R USER’S MANUAL...

  • Page 2: Table Of Contents

    Warranty card ....................................15 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the Box, Box-R unit and all its modifications.

  • Page 3: Safety Requirements

    Box, Box-r www.blaubergventilatoren.de SAFETY REQUIREMENTS All user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and technical norms and standards must be observed when installing and operating the unit. Disconnect the unit from the power supply prior to any connection, servicing, maintenance, and repair operations.
  • Page 4 Box, Box-r www.blaubergventilatoren.de This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety.

  • Page 5: Purpose

    1 pc. User’s manual 1 pc. Packing box 1 pc. DESIGNATION KEY Designation example: Box-R 150 / 100x4 max V3 Series Box, Box-R — inline centrifugal fan Outlet spigot diameter [mm] 80; 100; 125; 150; 160; 200 Inlet spigot diameter [mm] _ —...

  • Page 6: Technical Data

    3 m Model Speed Power [W] Current [A] per minute [V/50 Hz] flow [m distance [RPM] temperature [dBA] [°C] 0.32 1400 Box-R 80 V3 0.34 1800 2600 0.32 1400 Box-R 80x2 V3 0.34 1800 2600 0.32 1400 Box-R 80x4 V3 0.34...
  • Page 7 0.26 2500 Box 125 230/50 0.26 2500 Box 125/100x2 230/50 0.26 2500 Box 125/100x4 230/50 0.26 2500 Box 150, Box 160 230/50 0,38 2600 Box 150, Box 160 230/60 0,47 2810 Box 150/125x2 230/50 0.38 2600 Box-R 125 230/50 0.22...
  • Page 8 Box, Box-r www.blaubergventilatoren.de Dimensions [mm] Weight Model [kg] Ø D Ø D1 Box-R 80 V3 Box-R 100 V3 252 110 Box-R 125 124 124 270 141 Box-R 125 max 124 124 270 141 Box-R 125 V2 124 124 303 152...
  • Page 9 Box, Box-r www.blaubergventilatoren.de Dimensions [mm] Weight Model [kg] ØD ØD1 Box-R 80x4 V3 297 253 Box-R 100/80x4 V3 252 110 166 297 253 Box-R 100x4 V3 252 110 166 297 253 Box 125/100x4 252 133 191 370 321 Box-R 80x5 V3...
  • Page 10 6 inlets – 1 outlet The Box-R V3 fan consists of a metal casing with a turbine fixed on a casing flange. The impeller with forward curved blades is located inside of the scroll casing that ends up with the exhaust spigot. The terminal box incorporates an operating capacitor and a terminal block inside, and is attached to the casing end face.
  • Page 11 Box-R 100/80x4 V3 Box 150/125x2 Box-R 100/80x5 V3 Box 160 Box-R 100/80x6 V3 Box-R 125 (V2) (max) Box-R 100x2 V3 Box-R 150 (V2) Box-Rx200 (V2) CAUTION! If necessary, close the fan spigot with a plug, lubricate the rubber seal of the spigot with silicone grease.
  • Page 12 Connect the air ducts to the fan spigots (Fig. e). • Tighten the quick-detachable clamps at the points where the air ducts are connected to the spigots (see Fig. e). Connection options of the air duct to the Box-R ... /...x4 fans are shown in Fig. g, h.

  • Page 13: Connection To Power Mains

    The recommended circuit breaker nominal current is 1.0 A. The conductor section is 0.75 mm². Connect the fan to power mains through the terminal block incorporated inside the terminal box on the fan casing in compliance with the fan wiring diagram.

  • Page 14: Technical Maintenance

    STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 ˚С to +40 ˚С and relative humidity up to 70 %. • Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing deformation.

  • Page 15: Manufacturer's Warranty

    Box, Box-r www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.
  • Page 16 Box, Box-r www.blaubergventilatoren.de...
  • Page 17 Box, Box-r www.blaubergventilatoren.de...
  • Page 18 Box, Box-r www.blaubergventilatoren.de...

  • Page 19: Certificate Of Acceptance

    Box, Box-r www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Inline centrifugal fan Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 20 www.blaubergventilatoren.de B17EN-06...
