- Page 1 Centrifugal inline fan Iso Box-F Iso Box-R USER’S MANUAL...
-
Page 2: Table Of Contents
iso Box-f(r) www.blaubergventilatoren.de CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Unit design and operating principle ..........................8 Installation and set-up................................9 Connection to power mains ..............................10 Control ......................................... - Page 3 iso Box-f(r) www.blaubergventilatoren.de • Do not change the power cable length at your own discretion. Do not bend the • Do not lay the power cable of the unit in power cable. Avoid damaging the power close proximity to heating equipment. cable.
-
Page 4: Purpose
iso Box-f(r) www.blaubergventilatoren.de PURPOSE THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE TRAINING. THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED PERSONNEL AFTER THE APPROPRIATE BRIEFING. THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORIZED ACCESS BY UNATTENDED CHILDREN. -
Page 5: Technical Data
iso Box-f(r) www.blaubergventilatoren.de TECHNICAL DATA The unit is designed for indoor application with the ambient temperature ranging from -25 °C to +40 °C and relative humidity up to 80 %. Ingress protection rating against access to hazardous parts and water ingress is IPX4. The unit design is constantly being improved, thus some models may be slightly different from those described in this manual. - Page 6 iso Box-f(r) www.blaubergventilatoren.de TECHNICAL DATA OF THE Iso Box-R UNIT Parameters Voltage [V/Hz] 1 ~ 230/50 Power [W] Current [A] 0.27 0.33 0.48 0.58 Maximum air flow [m RPM [min 1200 1200 1200 1200 Sound pressure level at 3 m distance [dBA] Maximum transported air temperature [°C] -25...+40 Ingress protection rating of the casing...
- Page 7 iso Box-f(r) www.blaubergventilatoren.de TECHNICAL DATA OF THE Iso Box-F V2 UNIT Parameters Speed Voltage [V/Hz] 1 ~ 230/50 Power [W] 92 117 89 115 85 114 106 123 103 121 97 119 Current [A] 0.15 0.19 0.15 0.19 0.15 0.19 0.19 0.23 0.18 0.22 0.18 0.21 0.41 0.55 0.41 0.55 0.38 0.54 0.47 0.59 0.45 0.57 0.43 0.55 Maximum air flow [m 160 190 150 175 140 160 230 340 215 310 205 285 320 430 300 390 280 355 390 630 380 590 350 525 RPM [min...
-
Page 8: Unit Design And Operating Principle

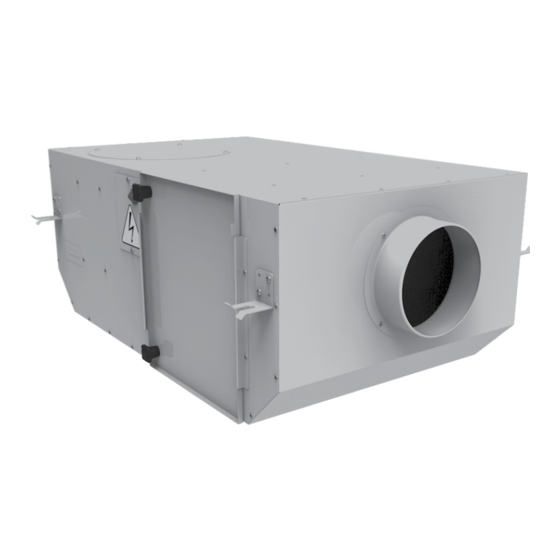

iso Box-f(r) www.blaubergventilatoren.de UNIT DESIGN AND OPERATING PRINCIPLE The unit is a centrifugal inline fan in a sound-insulated casing. The fan casing is made of painted sheet steel using heat- and sound- insulation material. The round connecting spigots are rubber sealed. The fan is equipped with a two-pole AC motor with an external rotor and an impeller with backward curved blades. -
Page 9: Installation And Set-Up
iso Box-f(r) www.blaubergventilatoren.de INSTALLATION AND SET-UP The fan is suspended to the mounting surface through the threaded rod fixed inside the expansion anchor. The fan is intended for mounting to round air ducts and is installed between them. The casing is equipped with fixing brackets for easier installation of the fan. While installing the unit, ensure convenient access for subsequent maintenance and repair. -
Page 10: Connection To Power Mains
iso Box-f(r) www.blaubergventilatoren.de CONNECTION TO POWER MAINS DISCONNECT THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. CONNECTION OF THE UNIT TO POWER MAINS IS ALLOWED BY A QUALIFIED ELECTRICIAN WITH A WORK PERMIT FOR THE ELECTRIC UNITS UP TO 1000 V AFTER CAREFUL READING OF THE PRESENT USER’S MANUAL. -
Page 11: Technical Maintenance
iso Box-f(r) www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! Maintenance operations of the unit are required 3-4 times per year. They include regular cleaning of the unit and periodic cleaning of filters. 1. Filter maintenance. Dirty filters increase air resistance in the system and reduce supply air volume. -
Page 12: Troubleshooting
iso Box-f(r) www.blaubergventilatoren.de TROUBLESHOOTING PROBLEM POSSIBLE REASONS TROUBLESHOOTING Make sure the power supply line is connected No power supply. correctly, otherwise troubleshoot a connection error. The fan(s) do(es) not get started. Turn off the fan. Troubleshoot the motor jamming. Jammed motor. Restart the fan. -
Page 13: Manufacturer's Warranty
iso Box-f(r) www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/ EU and CE-marking Directive 93/68/EEC. -
Page 14: Certificate Of Acceptance
iso Box-f(r) www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Centrifugal inline fan Model Iso Box- _______________________________________ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 15 iso Box-f(r) www.blaubergventilatoren.de...
- Page 16 www.blaubergventilatoren.de B163EN-03...
