  • Page 1 AXIAL WINDOW FAN BLABWIND USER’S MANUAL...
  • Page 2: Table Of Contents

    This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the BLABWIND unit and all its modifications. Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.
  • Page 3: Safety Requirements

    FOLLOW THE USER’S MANUAL REQUIREMENTS TO ENSURE DURABLE AND TROUBLE-FREE OPERATION OF THE UNIT. SAFETY REQUIREMENTS Disconnect the unit from power supply prior to any connection, servicing, maintenance, and repair operations. Only qualified electricians with a work permit for electrical units up to 1000 V are allowed for installation and maintenance.
  • Page 4 casing before starting installation. The casing internals must be free of any foreign objects that can damage the impeller blades. • While mounting the unit, avoid compression of the casing! Deformation of the casing may result in the motor jam and noisy operation.
  • Page 5 with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. • Children should be supervised to ensure that they do not play with the appliance.
  • Page 6: Delivery Set

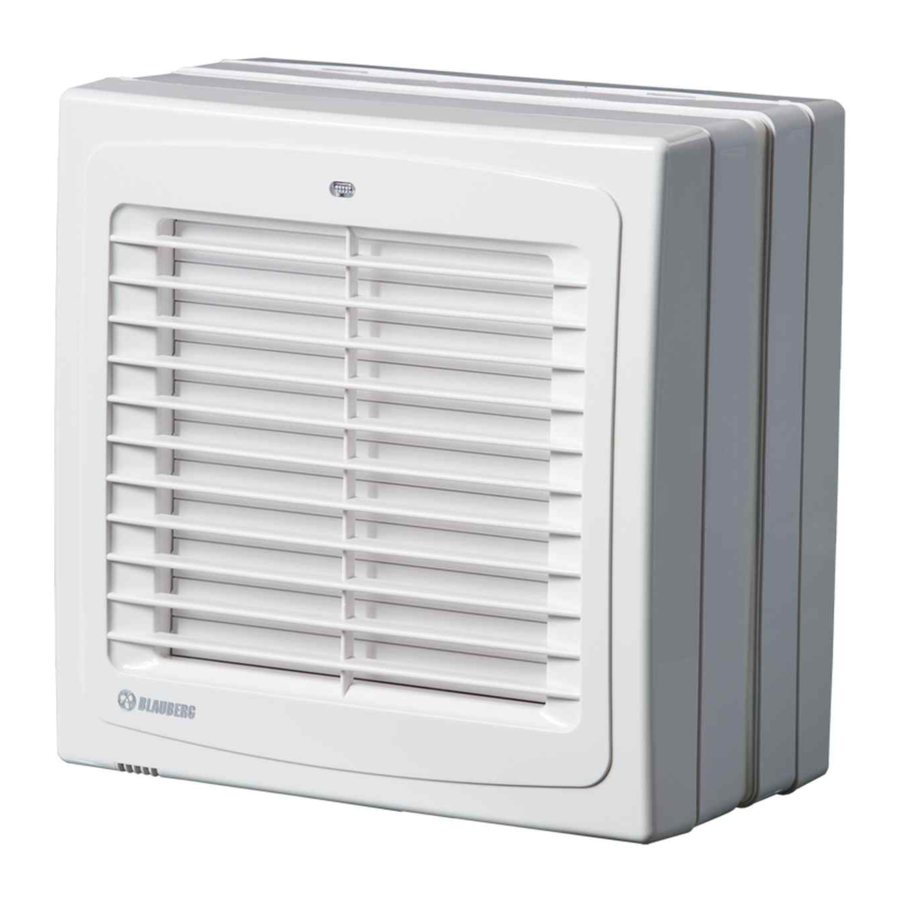

    DELIVERY SET Fan – 1 pc. Fitting set – 1 pc. Sealing gasket – 2 pcs. User’s manual – 1 pc. Packing box – 1 pc. BRIEF DESCRIPTION The unit described herein is an axial fan for exhaust ventilation of small to medium-sized premises heated during winter. The fan is designed for window mounting (Fig.
  • Page 7: Mounting And Set-Up

    MOUNTING AND SET-UP The fan is designed for mounting on a glass plate in the wall (fig. 1-2) or on a thin partition (fig. 3-4) and air extraction outside or to an adjacent room. The fan mounting sequence is shown in fig. 6-7. The fan wiring diagrams are shown in fig. 8.
  • Page 8: Technical Maintenance

    TECHNICAL MAINTENANCE The fan maintenance periodicity is at least once per 6 months. Maintenance steps: • Disconnect the fan from power supply and take steps to avoid unauthorized power supply connection (Fig. 9). • Remove the decorative panels, wipe the fan with a dry cloth or a brush (Fig. 10). •...
  • Page 9: Troubleshooting

    TROUBLESHOOTING Problem Possible reasons Troubleshooting Make sure the power supply line No power supply. is connected correctly, otherwise When the unit is connected to power troubleshoot the connection error. mains, the fan does not rotate and does not respond to any controls. Internal connection fault.
  • Page 10 BLAUBERG AUSTRALASIA WARRANTY - This warranty is given by Blauberg Australasia Pty Ltd, with an office at U5, 45 Eastern Creek Drive, Eastern Creek, NSW 2766, Australia. Phone 1300 475 504. • From the date of purchase, the original purchaser is entitled to free replacement parts, or a new unit for a period of five years from the date of purchase •...
  • Page 11 FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND TROUBLE-FREE OPERATION OF THE UNIT. USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON PRESENTATION OF THE UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL WITH THE PURCHASE DATE STAMP.
  • Page 12 1 – cover 2 – casing 3 – motor 4 – impeller 5 – inner flange 6 – sealing gasket 7 – outer flange...
  • Page 13 Dimensions [mm] Weight Model [kg] BLABWIND 150...
  • Page 15 BLABWIND Fan does not run Switch is closed Fan runs Switch is opened TERMINAL DESIGNATIONS ON WIRING DIAGRAMS L — phase (220-240 V only) S — external switch Fan does not run N — neutral (220-240 V only) QF — automatic circuit breaker...
