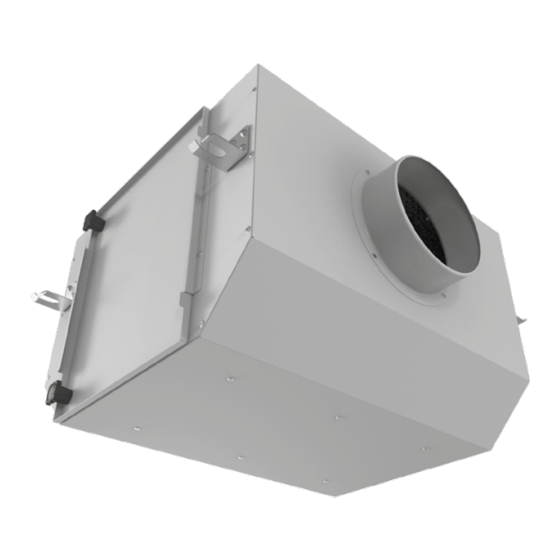

Filter-box with panel filters for round air ducts
Hide thumbs Also See for Clean Box 100 Series:

Advertisement

Quick Links

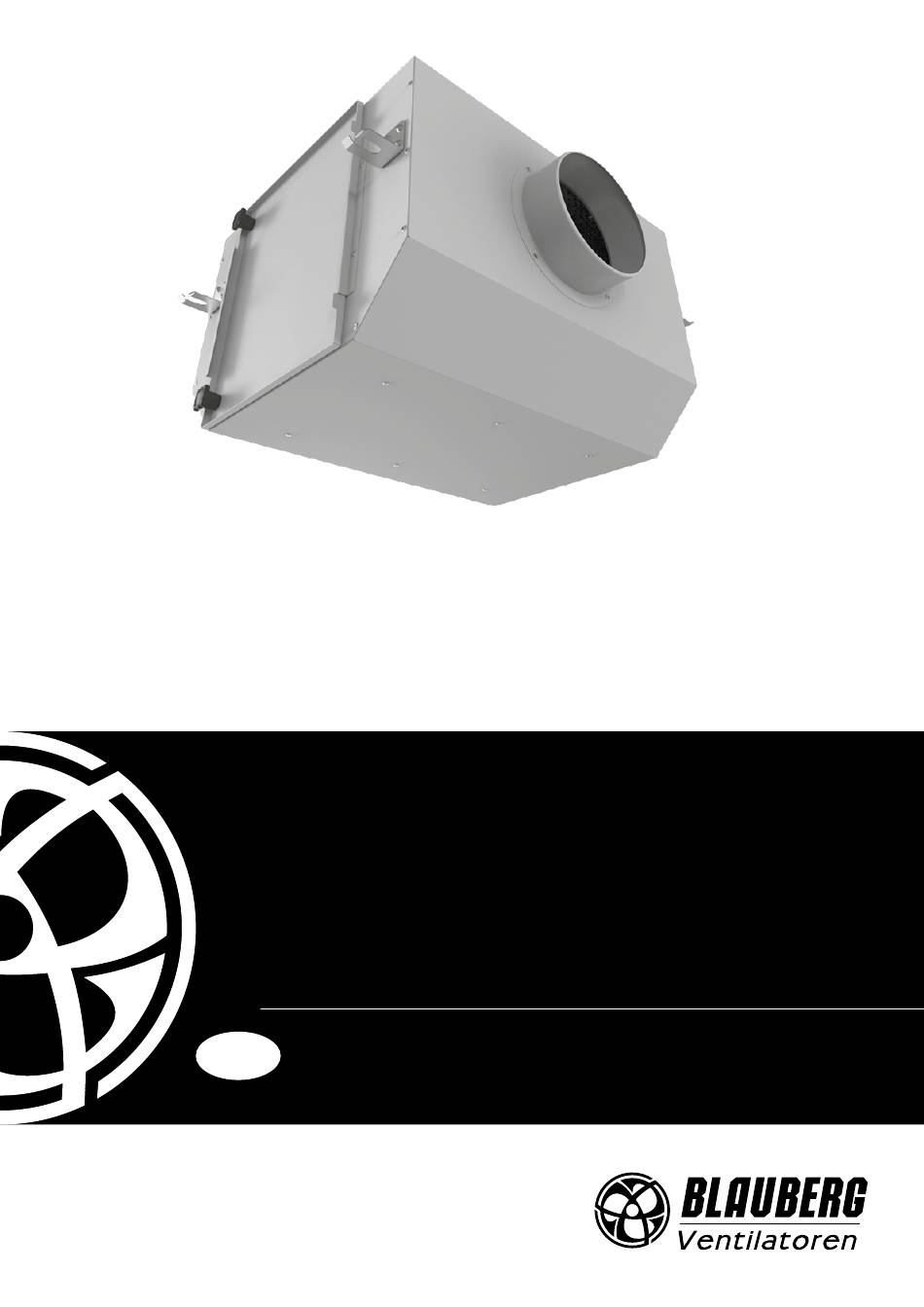

FILTER-BOX WITH
PANEL FILTERS
FOR ROUND AIR DUCTS
Clean Box 100
Clean Box 125
Clean Box 150
Clean Box 200
USER'S MANUAL
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Clean Box 100 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for BLAUBERG Ventilatoren Clean Box 100 Series

  • Page 1 FILTER-BOX WITH PANEL FILTERS FOR ROUND AIR DUCTS Clean Box 100 Clean Box 125 Clean Box 150 Clean Box 200 USER’S MANUAL...
  • Page 2: Table Of Contents

    Clean Box www.blaubergventilatoren.de CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and operating principle ............................7 Installation and set-up................................7 Connection to power mains ..............................8 Technical maintenance ................................9 Storage and transportation regulations ..........................
  • Page 3 Clean Box www.blaubergventilatoren.de • Do not change the power cable length at your own discretion. Do not bend the power • Do not lay the power cable of the unit in cable. Avoid damaging the power cable. Do close proximity to heating equipment. not put any foreign objects on the power cable.
  • Page 4: Purpose

    Clean Box www.blaubergventilatoren.de PURPOSE The unit is a device for purification of air circulating in ventilation systems. The unit is a component part and is not designed for stand-alone operation. The unit is intended for use in supply and recirculation ventilation systems for the purification of air in private homes, offices, hotels, cafés, conference halls and other utility and public spaces.
  • Page 5: Technical Data

    Clean Box www.blaubergventilatoren.de TECHNICAL DATA The unit is designed for operation in an enclosed area at ambient temperatures from -25 ˚C to + +55 ˚C at relative humidity of up to 80 % (at +25 ˚C). Ingress protection rating against access to hazardous parts and water ingress is IPX4. The unit casing is made of painted steel.
  • Page 6 Clean Box www.blaubergventilatoren.de Overall dimensions of the unit [mm] Model Clean Box 100 G4-F8 413.5 513.5 358.5 Clean Box 100 G4-F8-C 413.5 513.5 358.5 Clean Box 100 G4-H13 413.5 513.5 358.5 Clean Box 100 G4-H13-C 413.5 513.5 358.5 Clean Box 100 ES 513.5 613.5 Clean Box 125 G4-F8...
  • Page 7: Design And Operating Principle

    Clean Box www.blaubergventilatoren.de DESIGN AND OPERATING PRINCIPLE The unit is a box with filters of different filter class installed in it. Each unit involves installation of up to three filters with different supply air filter classes (from coarse to more fine cleaning). The air flow direction is indicated by the arrow on the fan casing.
  • Page 8: Connection To Power Mains

    Clean Box www.blaubergventilatoren.de CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL.
  • Page 9: Technical Maintenance

    Clean Box www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! Maintenance operations of the unit are required 3-4 times per year. Technical maintenance includes regular cleaning of the unit and periodic cleaning of filters. Dirty filters increase air resistance. The filters require cleaning not less than 3-4 times per year. Vacuum cleaning is allowed.
  • Page 10: Manufacturer's Warranty

    Clean Box www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/ EU and CE-marking Directive 93/68/EEC.
  • Page 11: Certificate Of Acceptance

    Clean Box www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Filter box with panel filters for round air ducts Model Clean Box _______ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 12 www.blaubergventilatoren.de B185EN-05...
