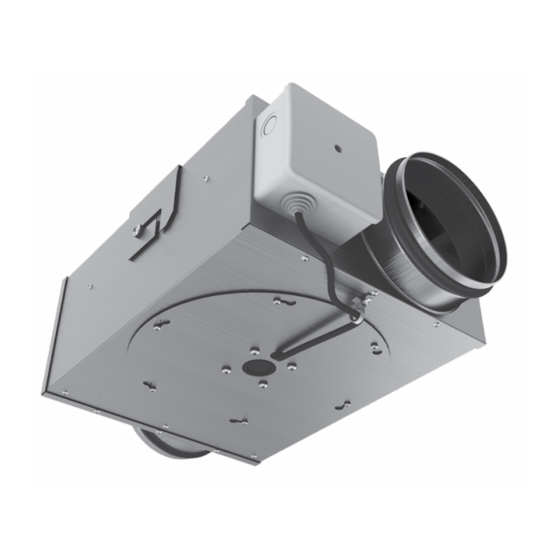

Inline centrifugal fan
Hide thumbs Also See for Box Series:

Advertisement

Quick Links

InlIne centrIfugal fan
Box
Box-R
EN
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Box Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BLAUBERG Ventilatoren Box Series

  • Page 1 InlIne centrIfugal fan Box-R USER’S MANUAL...
  • Page 2: Table Of Contents

    Box, Box-r www.blaubergventilatoren.de CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Unit design and operating principle ..........................9 Installation and set-up................................10 Connection to power mains ..............................12 Technical maintenance ................................
  • Page 3 Box, Box-r www.blaubergventilatoren.de • Do not change the power cable length at your own discretion. Do not bend the • Do not lay the power cable of the unit in power cable. Avoid damaging the power close proximity to heating equipment. cable.
  • Page 4: Purpose

    Box, Box-r www.blaubergventilatoren.de PURPOSE THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE TRAINING. THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED PER- SONNEL AFTER THE APPROPRIATE BRIEFING. THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORIZED AC- CESS BY UNATTENDED CHILDREN.
  • Page 5: Technical Data

    Box, Box-r www.blaubergventilatoren.de TECHNICAL DATA The unit is designed for indoor application with the ambient temperature ranging from 0 °C up +45 °C and relative humidity up to 80 %. The unit is rated as a Class I electrical appliance. Hazardous parts access and water ingress protection rating: IP22 for the assembled unit connected to the air ducts and IP44 for the unit motors.
  • Page 6 Box, Box-r www.blaubergventilatoren.de Maximum Rotation Noise level Voltage Maximum air transported Model Speed Power [W] Current [A] per minute at 3 m dis- [V/50 Hz] flow [m air tempera- [RPM] tance [dBA] ture [°C] 0.32 1400 Box-R 100x2 V3 0.34 1800 2600 0.32...
  • Page 7 Box, Box-r www.blaubergventilatoren.de Dimensions [mm] Weight Model [kg] Ø D Ø D1 Box-R 80 V3 Box-R 100 V3 252 110 Box-R 125 124 124 270 141 Box-R 125 max 124 124 270 141 Box-R 125 V2 124 124 303 152 Box-R 150 149 149 340 207 Box-R 150 V2...
  • Page 8 Box, Box-r www.blaubergventilatoren.de Dimensions [mm] Weight Model [kg] ØD ØD1 Box-R 80x4 V3 297 253 Box-R 100/80x4 V3 252 110 166 297 253 Box-R 100x4 V3 252 110 166 297 253 Box 125/100x4 252 133 191 370 321 Box-R 80x5 V3 136 351 Box-R 100/80x5 V3 252 110 166 351...
  • Page 9: Unit Design And Operating Principle

    Box, Box-r www.blaubergventilatoren.de UNIT DESIGN AND OPERATING PRINCIPLE Box-R 80...200 Box-R 80..100/80..100x2 Box 100...160 Box 125..150/100..125x2 Mounting bracket Casing Terminal box 1 inlet – 1 outlet 2 inlets – 1 outlet Box-R 80..100/80..100x4 Box-R 80..100/80..100x5 Box-R 80..100/80..100x6 Box 125/100x4 4 inlets – 1 outlet 5 inlets –...
  • Page 10: Installation And Set-Up

    Box, Box-r www.blaubergventilatoren.de INSTALLATION AND SET-UP BEFORE MOUNTING MAKE SURE THE CASING DOES NOT CONTAIN ANY FOREIGN OB- JECTS (E.G. FOIL, PAPER). WHILE INSTALLING THE UNIT ENSURE CONVENIENT ACCESS FOR SUBSEQUENT MAIN- TENANCE AND REPAIR. The fan is suitable both for horizontal and vertical installation. To get the best performance of the unit and to V3mize turbulence-induced air pressure losses, connect the straight air duct section to the spigots on both sides of the unit while installing.
  • Page 11 Box, Box-r www.blaubergventilatoren.de Fan mounting sequence: • Make sure that the fan is disconnected from power mains. • Mark the positions for mounting the fixing brackets on the load-bearing surface. • Drill the holes and fix the bracket with matching fasteners (e.g. dowels), see Fig. b. •...
  • Page 12: Connection To Power Mains

    Box, Box-r www.blaubergventilatoren.de CONNECTION TO POWER MAINS DISCONNECT THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. CONNECTION OF THE UNIT TO POWER MAINS IS ALLOWED BY A QUALIFIED ELECTRI- CIAN WITH A WORK PERMIT FOR THE ELECTRIC UNITS UP TO 1000 V AFTER CAREFUL READING OF THE PRESENT USER’S MANUAL.
  • Page 13: Technical Maintenance

    Box, Box-r www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! The technical maintenance includes periodic cleaning of the surfaces from accumulated dust and dirt. The impeller blades require thor- ough cleaning once in 6 months. Maintenance sequence: •...
  • Page 14: Manufacturer's Warranty

    Box, Box-r www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/ EU and CE-marking Directive 93/68/EEC.
  • Page 15: Certificate Of Acceptance

    Box, Box-r www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Single-room reversible energy regeneration ventilator Model Box __________________________________________ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 16 www.blaubergventilatoren.de B17EN-05...
