  • Page 1 INLINE AXIAL FAN BLABDUCTO User’s manual...
  • Page 2: Table Of Contents

    CONTENTS Safety requirements ............................................3 Delivery set ................................................7 Brief description ..............................................7 Operation guidelines ............................................7 Designation key ..............................................8 Installation................................................9 Technical maintenance ........................................... 10 Troubleshooting ..............................................10 Manufacturer’s warranty ..........................................11 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the BLABDUCTO unit and all its modifications.
  • Page 3: Safety Requirements

    PLEASE READ THE USER’S MANUAL CAREFULLY PRIOR TO INSTALLING, CONNECTION TO POWER MAINS AND OPERATING THE UNIT. THE MANUFACTURING COMPANY SHALL NOT BE RESPONSIBLE FOR DAMAGE TO HEALTH AND PROPERTY OF THE CUSTOMER CAUSED BY THE CUSTOMER’S VIOLATING THE USER’S MANUAL. FOLLOW THE USER’S MANUAL REQUIREMENTS TO ENSURE DURABLE OPERATION OF THE UNIT, ITS MECHANICAL AND ELECTRICAL RELIABILITY.
  • Page 4 While mounting the unit, avoid compression of the casing! Deformation of the casing may result in motor jam and excessive noise. Misuse of the unit and any unauthorised modifications are not allowed. Do not expose the device to adverse atmospheric agents (rain, sun, etc.).
  • Page 5 order to incorporate the latest technological developments. Never touch the unit with wet or damp hands. This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety.
  • Page 6 Connection to the mains must be made through a disconnecting device, which is integrated into the fixed wiring system in accordance with the rules for design of electrical units, and has a contact separation in all poles that allows for full disconnection under overvoltage category III conditions.
  • Page 7: Delivery Set

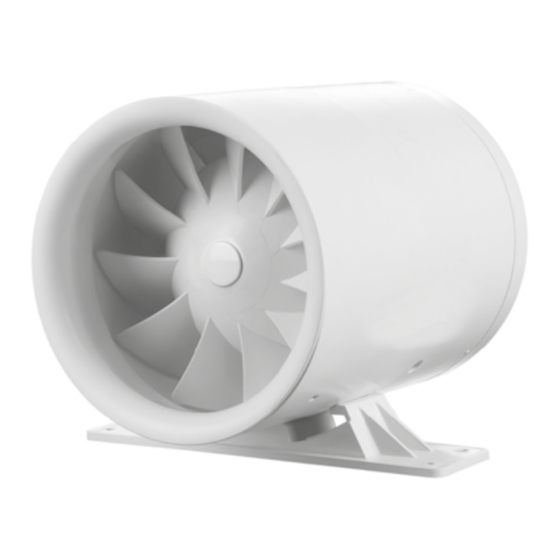

    DELIVERY SET Fan — 1 pc. Screws and dowels — 4 pcs. User’s manual — 1 pc. Packing box — 1 pc. BRIEF DESCRIPTION The product is an axial fan for exhaust or supply ventilation of small and medium-sized premises. The fan is designed for connection to ø...
  • Page 8: Designation Key

    DESIGNATION KEY BLABDUCTO 100 220 V/60 Hz Voltage _: 220-240 V/50 Hz (220 V/60 Hz) — 220 V/60 Hz Spigot diameter [mm] 100/125/150 Fan series...
  • Page 9: Installation

    INSTALLATION The fan is designed for vertical or horizontal installation into a round air duct of a matching diameter (Fig. 1-2). Caution! In case of vertical mounting, the fan must be protected against ingress of rainfalls and condensate inside the fan. Use the mounting bracket to install the fan.
  • Page 10: Technical Maintenance

    TECHNICAL MAINTENANCE Disconnect the fan from power mains prior to any maintenance operations and take measures to prevent unintentional power- up until maintenance is complete. The fan maintenance periodicity is at least once per 6 months, depending on the operating conditions.
  • Page 11: Manufacturer's Warranty

    MANUFACTURER’S WARRANTY Blauberg Warranty: • This warranty is given by Blauberg Australasia Pty Ltd, with an office at Unit 5, 45A Eastern Creek Drive, Eastern Creek, New South Wales 2766, Australia. Phone 1300 475-504. • From the date of purchase, the original purchaser is entitled to free replacement parts, or a new unit for a period of five years from the date of purchase.
  • Page 12 ø D D [mm] L [mm] H [mm] K [mm] N [mm] BLABDUCTO 100 BLABDUCTO 125 BLABDUCTO 150...
  • Page 14 Wiring diagrams...
  • Page 19 Quality Inspector’s Stamp Sold by (name and stamp of the seller) Manufacture Date Purchase Date...
  • Page 20 220 V/60 Hz) BLABDUCTO 100 www.blaubergventilation.com.au Blauberg_Australasia_178EN-01...
