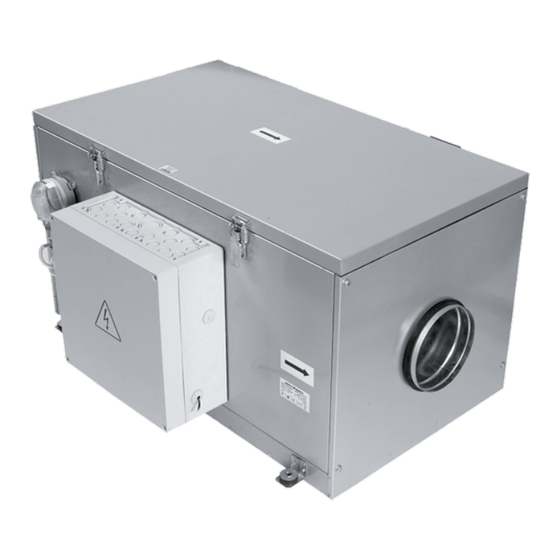

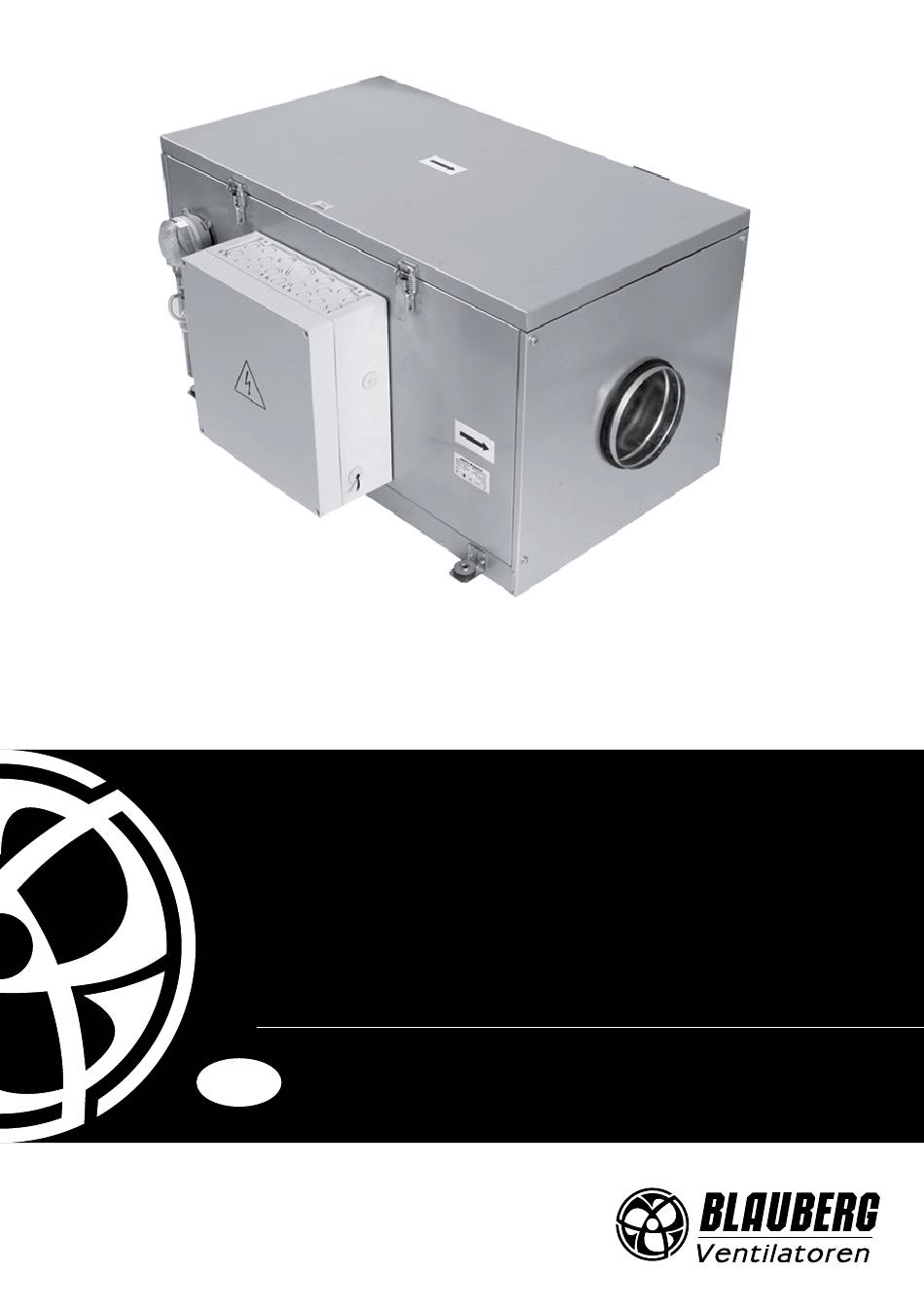

- Page 1 Air supply unit BLAUBOX E USER'S MANUAL...
-
Page 2: Table Of Contents
BlAuBOX E www.blaubergventilatoren.de CONTENTS Contents Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and operating principle ............................7 Mounting and set-up .................................. 8 Connection to power mains ..............................9 Technical maintenance ................................ - Page 3 BlAuBOX E www.blaubergventilatoren.de • Do not change the power cable length at your own discretion. Do not bend the power • Do not lay the power cable of the unit in cable. Avoid damaging the power cable. Do close proximity to heating equipment. not put any foreign objects on the power cable.
-
Page 4: Purpose
BlAuBOX E www.blaubergventilatoren.de PURPOSE The unit is intended for filtering, supplying and heating purified intake air in private homes, offices, hotels, cafés, conference halls and other residential and public spaces. The unit is not intended for organizing ventilation in swimming pools, saunas, greenhouses, summer gardens and other spaces with high humidity. -
Page 5: Technical Data
BlAuBOX E www.blaubergventilatoren.de TECHNICAL DATA The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to 80 %. In order to prevent condensation on the internal walls of the units, it is necessary that the surface temperature of the casing is 2-3 °C higher than the dew point temperature of the transported air. - Page 6 BlAuBOX E www.blaubergventilatoren.de BLAUBOX BLAUBOX BLAUBOX BLAUBOX BLAUBOX BLAUBOX BLAUBOX E1000-3.6 E1000-6 E1000-9 E1200-6 E1200-9 E1500-6 E1500-9 Unit voltage [V/50 Hz] 3~ 400 3~ 400 Maximum fan power [W] Fan current [A] 0.85 0.77 1.34 Electric heater power [kW] Electric heater current [A] 13.0 13.0 13.0...
-
Page 7: Design And Operating Principle
BlAuBOX E www.blaubergventilatoren.de DESIGN AND OPERATING PRINCIPLE 1 – Casing 2 – Fan 3 – Filter 4 – Electric heater 5 – Control panel (BLAUBOX E... Pro) 6 – Control unit (BLAUBOX E... Pro) 7 – Differential pressure switch 8 – Cover 9 –... -
Page 8: Mounting And Set-Up
BlAuBOX E www.blaubergventilatoren.de MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. WHILE INSTALLING THE UNIT ENSURE CONVENIENT ACCESS FOR SUBSEQUENT MAINTENANCE AND REPAIR. The unit should be mounted so that the arrow on the cover coincides with air flow direction in the system and access for maintenance, service or replacement is provided. -
Page 9: Connection To Power Mains
BlAuBOX E www.blaubergventilatoren.de CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. - Page 10 BlAuBOX E www.blaubergventilatoren.de For three-phase current Designation Name Cable type Contact type Note Electric motor 3x0.75 Differential pressure sensor 2х0.5 Duct temperature sensor 4х0.25 NTC 10k0м Control panel 2х0.75 Damper actuator 2х0.75 Fire alarm panel 2х0.75 Humidistat 2х0.75 A3.1 Heater A3.2 A4.1 Heater triac module...
-
Page 11: Technical Maintenance
BlAuBOX E www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! The unit must undergo technical maintenance 3 to 4 times a year. Maintenance includes general cleaning of the unit and the following operations: 1. Filter maintenance (3-4 times per year). Dirty filters increase air resistance in the system and reduce supply air volume. -
Page 12: Storage And Transportation Regulations
BlAuBOX E www.blaubergventilatoren.de STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 °C to + 40 °C and relative humidity up to 70 %. •... -
Page 13: Manufacturer's Warranty
BlAuBOX E www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/ EU and CE-marking Directive 93/68/EEC. -
Page 14: Certificate Of Acceptance
BlAuBOX E www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Air supply unit Model BLAUBOX E____________ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 15 BlAuBOX E www.blaubergventilatoren.de...
- Page 16 www.blaubergventilatoren.de B29EN-04...
