BLAUBERG Ventilatoren BLABBRAVO 100 User Manual

BLAUBERG Ventilatoren BLABBRAVO 100 User Manual

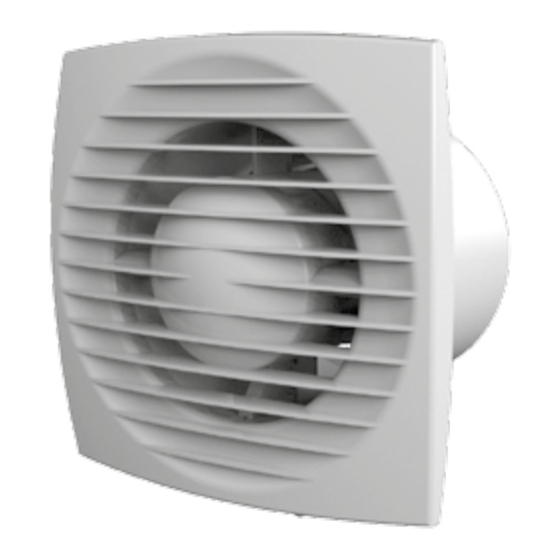

Axial wall / ceiling fan

Advertisement

Quick Links

AXIAL WALL / CEILING FAN
BLABBRAVO
USER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the BLABBRAVO 100 and is the answer not in the manual?

Questions and answers

Summary of Contents for BLAUBERG Ventilatoren BLABBRAVO 100

  • Page 1 AXIAL WALL / CEILING FAN BLABBRAVO USER’S MANUAL...
  • Page 2: Table Of Contents

    CONTENTS Delivery set ................................................7 Brief description ..............................................7 Operation guidelines ............................................7 Installation and set-up............................................. 8 Technical maintenance ........................................... 9 Storage and transportation regulations ....................................9 Blauberg Australasia warranty ........................................10 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the BLABBRAVO unit and all its modifications.
  • Page 3 READ THE USER’S MANUAL CAREFULLY BEFORE PROCEEDING WITH INSTALLATION WORKS. COMPLIANCE WITH THE MANUAL REQUIREMENTS ENSURES RELIABLE OPERATION AND LONG SERVICE LIFE OF THE UNIT. KEEP THE USER’S MANUAL AVAILABLE AS LONG AS YOU USE THE UNIT. YOU MAY NEED TO REREAD THE INFORMATION ON THE PRODUCT SERVICING.
  • Page 4 Deformation of the casing may result in motor jam and excessive noise. Misuse of the unit and any unauthorised modifications are not allowed. Do not expose the unit to adverse atmospheric agents (rain, sun, etc.). Transported air must not contain any dust or other solid impurities, sticky substances, or fibrous materials.
  • Page 5 Never touch the unit when barefoot. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervi- sion or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 6 operation of flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur. Connection to the mains must be made through a disconnecting device, which is integrated into the fixed wiring system in accordance with the wiring rules for design of electrical units, and has a contact separation in all poles that allows for full disconnection under over- voltage category III conditions.
  • Page 7: Delivery Set

    DELIVERY SET - 1 pc. Protective screen - 1 pc. Screws with dowels - 4 pcs. User’s manual - 1 pc. Packing box - 1 pc. BRIEF DESCRIPTION The unit described herein is an axial fan for exhaust ventilation of small to medium-sized premises heated during winter. It is designed for wall or ceiling mounting (Fig.
  • Page 8: Installation And Set-Up

    INSTALLATION AND SET-UP The fan is designed for wall or ceiling mounting with direct air exhaust to the ventilation shaft or into the round air duct of matching diameter (Fig. 2). Fan installation sequence: step 1. Cut off power supply and make sure electricity has been turned off (Fig. 5). step 2.
  • Page 9: Technical Maintenance

    TECHNICAL MAINTENANCE The fan maintenance periodicity is at least once per 6 months. Maintenance steps: • Disconnect the fan from power supply and make sure electricity has been turned off (Fig. 14). • Remove the front panel and the protective screen, wipe the fan with a dry cloth or a brush (Fig. 15). •...
  • Page 10: Blauberg Australasia Warranty

    BLAUBERG AUSTRALASIA WARRANTY - This warranty is given by Blauberg Australasia Pty Ltd, with an office at U5, 45 Eastern Creek Drive, Eastern Creek, NSW 2766, Australia. Phone 1300 475 504. • From the date of purchase, the original purchaser is entitled to free replacement parts, or a new unit for a period of five years from the date of purchase •...
  • Page 11 FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND TROUBLE-FREE OPERATION OF THE UNIT. USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON PRESENTATION OF THE UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL WITH THE PURCHASE DATE STAMP.
  • Page 12 Dimensions [mm] Weight Model [kg] BLABBRAVO 100 150 122 102 100 17 0.56 BLABBRAVO 125 176 144 104 125 17 0.73 BLABBRAVO 150 205 174 124 150 19...
  • Page 15 BLABBRAVO 100/125/150 Fan does not run Contact of the switch is CLOSED. Fan runs Contact of the switch is OPEN. BLABBRAVO 100/125/150 S...
  • Page 19 Quality Inspector’s Stamp Sold by (name and stamp of the seller) Manufacture Date Purchase Date...
  • Page 20 BLABBRAVO www.blaubergventilation.com.au B_Australasia175EN-03 BLABBRAVO...

This manual is also suitable for:

Blabbravo 125Blabbravo 150
