- Page 1 AXIAL FAN MOON | HI-FI | BAVARIA USER’S MANUAL...
-
Page 2: Table Of Contents
The manual contains information about purpose, technical details, operating principle, design, and installation of the Blauberg Moon/Hi-Fi/Bavaria unit and all its modifications. Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country. - Page 3 READ THE USER’S MANUAL CAREFULLY BEFORE PROCEEDING WITH INSTALLATION WORKS. COMPLIANCE WITH THE MANUAL REQUIREMENTS ENSURES RELIABLE OPERATION AND LONG SERVICE LIFE OF THE UNIT. KEEP THE USER’S MANUAL AVAILABLE AS LONG AS YOU USE THE UNIT. YOU MAY NEED TO REREAD THE INFORMATION ON THE PRODUCT SERVICING.
- Page 4 • Fixed electrical wiring must be equipped with an automatic circuit breaker. • The unit must be connected to power mains through a double pole circuit breaker of suitable rating integrated into the fixed wiring system with opening of contacts at all poles. The gap between the circuit breaker contacts at all poles must be not less than 3 mm.
- Page 5 other fire-protection devices. Sufficient air supply must be provided for proper combustion and exhaust of gases through the chimney of fuel burning equipment to prevent back drafting. • The unit may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to back flow of combustion gases.
- Page 6 • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 7 WARNING! Similar to the use of any other household electrical appliances when operating this fan, the following basic rules must be followed: • Never touch the fan with wet or damp hands. • Never touch the fan when barefoot. THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE. DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE.
-
Page 8: Delivery Set

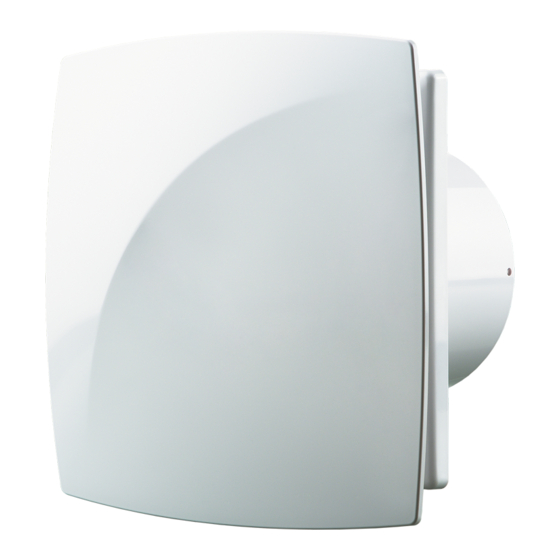

DELIVERY SET - 1 pc. Screws with dowels - 4 pcs. Plastic screwdriver - 1 pc. (only for the models with a timer) User’s manual - 1 pc. Packing box - 1 pc. BRIEF DESCRIPTION The product is an axial fan for exhaust ventilation of small and medium-sized premises heated in winter. The design of the fan may include a back valve that prevents air from flowing into the room when the fan is off. -
Page 9: Designation Key
DESIGNATION KEY Moon Power supply _ - 220-240 V / 50 Hz (by default) 220-240 V / 60 Hz 12 V Additional options _ - basic model S - pull cord switch T- turn-off delay timer TR - turn-on and turn-off delay timer... -
Page 10: Electronic System Operation Algorithm
ELECTRONIC SYSTEM OPERATION ALGORITHM The T model fans equipped with a timer are activated by control voltage application to input terminal S by an external switch (e.g. indoor light switch). Upon control voltage removal the fan continues to operate for the period of time set by the timer within the range from 2 to 30 minutes. -
Page 11: Maintenance
— To adjust the fan activation delay time, turn the T potentiometer knob clockwise (+) or counter-clockwise (-) which sets the activation delay time within the range from 0 to 2 minutes. — To adjust the fan deactivation delay time, turn the T potentiometer knob clockwise (+) or counter-clockwise (-) which sets the activation delay time within the range from 2 to 30 minutes. -
Page 12: Troubleshooting
TROUBLESHOOTING Problem Possible reasons Troubleshooting Make sure the power supply line When the unit is connected to power No power supply. is connected correctly, otherwise troubleshoot the connection error. mains, the fan does not rotate and does not respond to any controls. Internal connection fault. -
Page 13: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/ EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 14 • Redesign or engineering changes to the unit. • Replacement and use of any assemblies, parts and components not approved by the manufacturer. • Unit misuse. • Violation of the unit installation regulations by the user. • Violation of the unit control regulations by the user. •...
- Page 15 D, mm A, mm B, mm L, mm Moon 100 Hi-Fi 100 Bavaria 100 ø D Moon 125 123.5 Hi-Fi 125 123.5 Bavaria 125 123.5...
- Page 17 ... 100/125 ... 100/125 T ... 100/125 S(T) Fan does not run Contact of the S1 switch or the pull cord switch is CLOSED Fan runs Contact of the S1 switch or the pull cord switch is OPENED Activation of turn-off delay timer (2-30 minutes)
- Page 18 ... 100/125 TR ... 100/125 STR Fan does not run Contact of the S1 switch or the pull cord switch is CLOSED Activation of turn-off delay timer (0-2 minutes) Switch is OFF during countdown of turn-on delay timer Fan runs Contact of the S1 switch or the pull cord switch is OPENED...
- Page 19 ... 100/125 H ... 100/125 SH Fan does not run Contact of the S1 switch or the pull cord switch is CLOSED Humidity exceeds set point Fan runs Contact of the S1 switch or the pull cord switch is OPENED Fan runs Humidity is below set point Activation of turn-off...
- Page 20 ... V2 100/125 speed 1 and 2 Fan does not run Contact of the S1 switch or the pull cord switch is CLOSED S switch is in Speed position Fan runs at speed 1 Fan runs at speed 2 Contact of the S1 switch or the pull cord switch is OPENED...
- Page 21 ... V2 100/125 TR Fan runs at speed 1 Contact of the S1 switch or the pull cord switch is CLOSED Activation of turn-on delay timer (0-2 minutes) Fan runs at speed 2 Contact of the S1 switch or the pull cord switch is OPENED Activation of turn-off...
- Page 22 ... V2 100/125 H Fan runs at speed 1 Contact of the S1 switch or the pull cord switch is CLOSED Humidity exceeds set point Activation of turn-on delay timer (45 seconds) The contact of the S1 switch or the pull cord switch is OPENED during the turn-on delay timer operation Fan runs at speed 2...
- Page 25 Quality Inspector’s Stamp Seller (name and stamp of the seller) Manufacture Date Purchase Date...
- Page 26 Moon Blauberg Hi-Fi Bavaria www.blaubergventilatoren.de B160EN-06...
