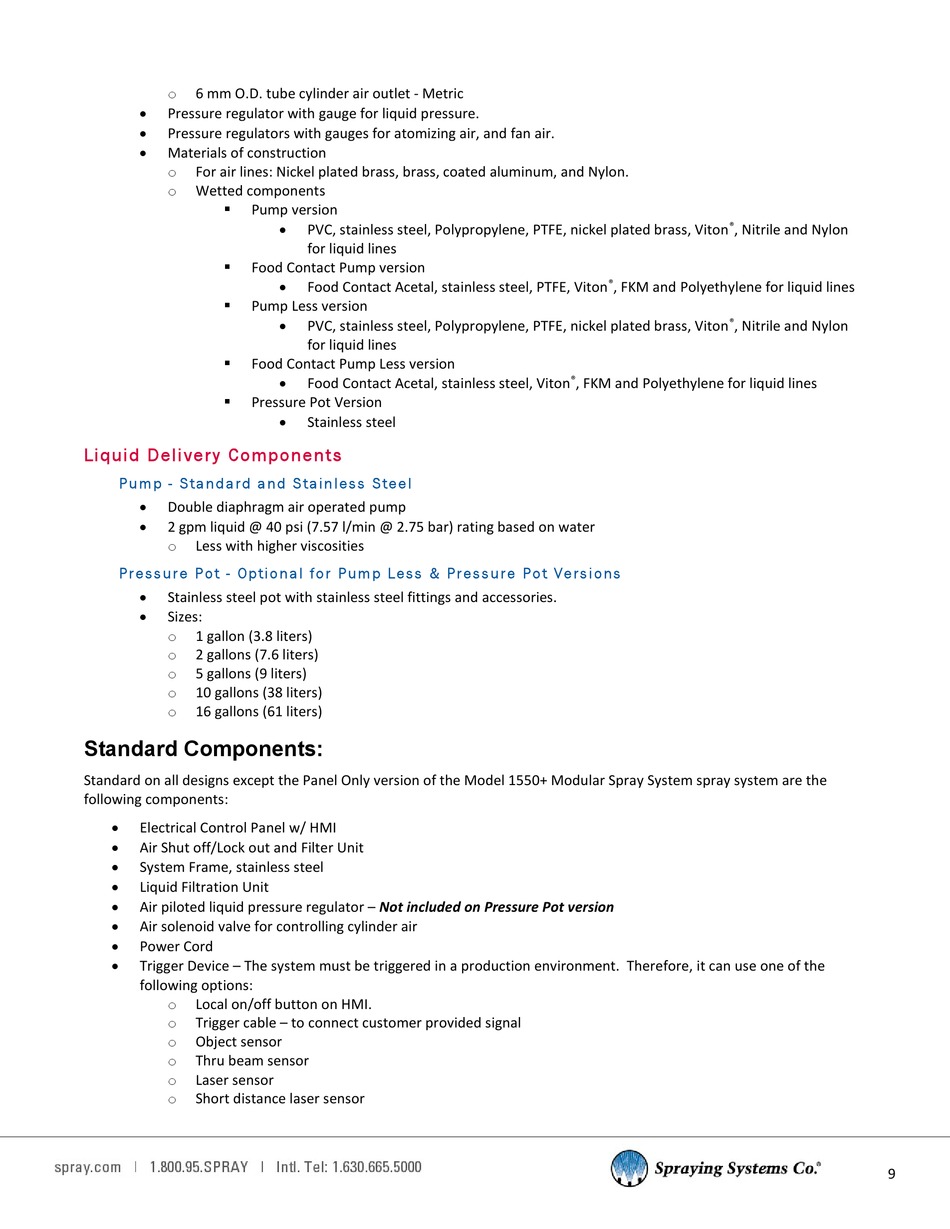

6 mm O.D. tube cylinder air outlet - Metric
o

Pressure regulator with gauge for liquid pressure.

Pressure regulators with gauges for atomizing air, and fan air.

Materials of construction
For air lines: Nickel plated brass, brass, coated aluminum, and Nylon.
o
Wetted components
o
 Pump version
Food Contact Pump version

Pump Less version

 Food Contact Pump Less version
Pressure Pot Version

Liquid Delivery Component s
P u m p - St a nd a rd a nd S t a in l e s s St e e l

Double diaphragm air operated pump

2 gpm liquid @ 40 psi (7.57 l/min @ 2.75 bar) rating based on water
Less with higher viscosities
o
P r e ss u r e P ot - O pt i o na l f o r P um p L e ss & P r e s su r e P o t V e rs i o ns

Stainless steel pot with stainless steel fittings and accessories.

Sizes:
1 gallon (3.8 liters)
o
2 gallons (7.6 liters)
o
5 gallons (9 liters)
o
10 gallons (38 liters)
o
16 gallons (61 liters)
o

Standard Components:

Standard on all designs except the Panel Only version of the Model 1550+ Modular Spray System spray system are the
following components:

Electrical Control Panel w/ HMI

Air Shut off/Lock out and Filter Unit
 System Frame, stainless steel

Liquid Filtration Unit

Air piloted liquid pressure regulator – Not included on Pressure Pot version

Air solenoid valve for controlling cylinder air
 Power Cord

Trigger Device – The system must be triggered in a production environment. Therefore, it can use one of the
following options:
Local on/off button on HMI.
o
Trigger cable – to connect customer provided signal
o
Object sensor
o
Thru beam sensor
o
Laser sensor
o
Short distance laser sensor
o
 PVC, stainless steel, Polypropylene, PTFE, nickel plated brass, Viton
for liquid lines

Food Contact Acetal, stainless steel, PTFE, Viton

PVC, stainless steel, Polypropylene, PTFE, nickel plated brass, Viton
for liquid lines
 Food Contact Acetal, stainless steel, Viton

Stainless steel
® , Nitrile and Nylon
® , FKM and Polyethylene for liquid lines
® , Nitrile and Nylon
® , FKM and Polyethylene for liquid lines
