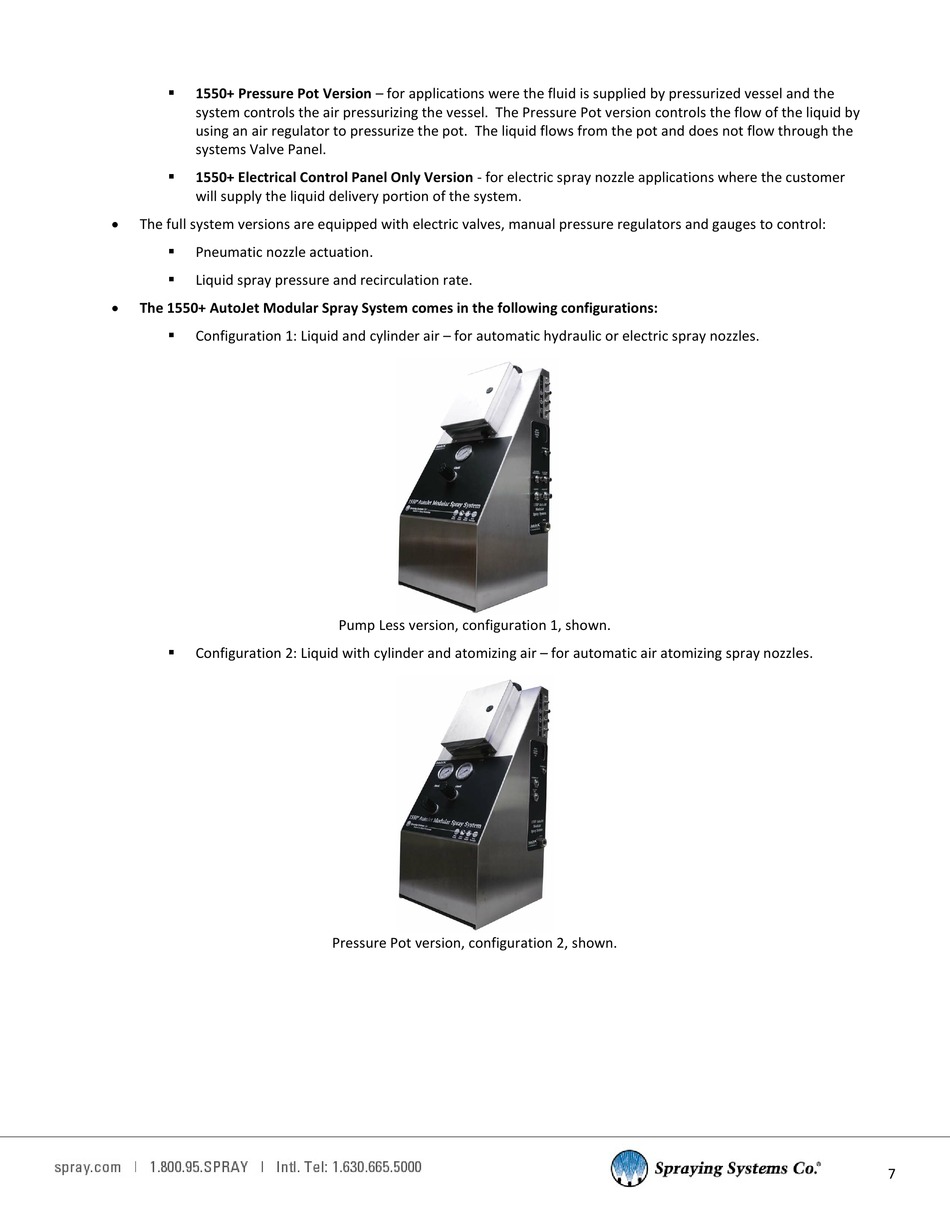

Spraying Systems Co 1550+ AutoJet Owner's Manual page 7

 1550+ Pressure Pot Version – for applications were the fluid is supplied by pressurized vessel and the
system controls the air pressurizing the vessel. The Pressure Pot version controls the flow of the liquid by
using an air regulator to pressurize the pot. The liquid flows from the pot and does not flow through the
systems Valve Panel.
1550+ Electrical Control Panel Only Version - for electric spray nozzle applications where the customer

will supply the liquid delivery portion of the system.

The full system versions are equipped with electric valves, manual pressure regulators and gauges to control:
Pneumatic nozzle actuation.

Liquid spray pressure and recirculation rate.


The 1550+ AutoJet Modular Spray System comes in the following configurations:
Configuration 1: Liquid and cylinder air – for automatic hydraulic or electric spray nozzles.

Configuration 2: Liquid with cylinder and atomizing air – for automatic air atomizing spray nozzles.

Pump Less version, configuration 1, shown.
Pressure Pot version, configuration 2, shown.
